hydraulic lifting high shear homogenizing equipment :

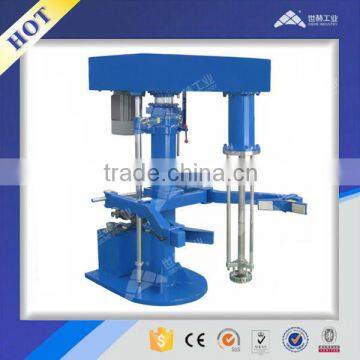

High-shear Emulsifier(Hydraulic Lifting) is a batch type machine designed for big volume in industrial production. Its working
capacity is generally between 50-5000L. It narrows the particle size of Liquid-liquid and liquid-solid materials through external
mechanical force and distributes one phase materials into another phase or many other phases evenly to realize good
homogenizing, dispersing and emulsifying result. As a result, the materials become stable emulsion. The emulsifier is batch
production, the working head adopt the new type of dual direction suction structure. The equipment can adopted to wide range
viscosity and temperature, and can also customized ex-proof product.
[Production Capacity]: 50-5000L
[Applicable Materials]: Applicable for production process for solution, gel, suspension or emulsion of solid - liquid,
liquid-liquid materials such as juice, soup bases, milk production, tissue homogenate, cosmetics,
surfactants, asphalt, emulsifier, oil field chemicals etc.
Model |
Power (kw) |
Speed (rpm) |
linear velocity (m/s) |
Materials |
Capacity (L) |
Lifting (mm) |
SRHY-4 |
4 |
0-2930 |
20 |
SS304SS316L stainless steel |
≤400 |
800 |
SRHY-7.5 |
7.5 |
0-2930 |
20 |
SS304SS316L stainless steel |
≤800 |
900 |
SRHY-11 |
11 |
0-2930 |
25 |
SS304SS316L stainless steel |
≤1000 |
900 |
SRHY-15 |
15 |
0-2930/1450 |
25 |
SS304SS316L stainless steel |
≤1200 |
900 |
SRHY-18.5 |
18.5 |
0-2930/1450 |
25 |
SS304SS316L stainless steel |
≤1500 |
1100 |
SRHY-22 |
22 |
0-2930/1450 |
25 |
SS304SS316L stainless steel |
≤2000 |
1100 |
SRHY-30 |
30 |
0-1450 |
21 |
SS304SS316L stainless steel |
≤2500 |
1100 |
SRH-37 |
37 |
0-1450 |
21 |
SS304SS316L stainless steel |
≤4000 |
1600 |
SRHY-45 |
45 |
0-1450 |
25 |
SS304SS316L stainless steel |
≤5000 |
1600 |
Remarks:
* The capacity is data based on water as medium. The model selection shall be based on the data such as the materials viscosity,
density etc..
* Special operation condition, such as high temperature, high pressure, explosive, combustible and corrosive etc, details are
required for correct model selection.
* If any change in the above table, subject shall prevail without notice.
* The table cannot include all products, please contact with our sales engineers for more information.
SIEHE Industry------expert on manufacturing and sales of liquid and powder equipment!
