Home > Products > Dispersers > distemper paint mixing machine

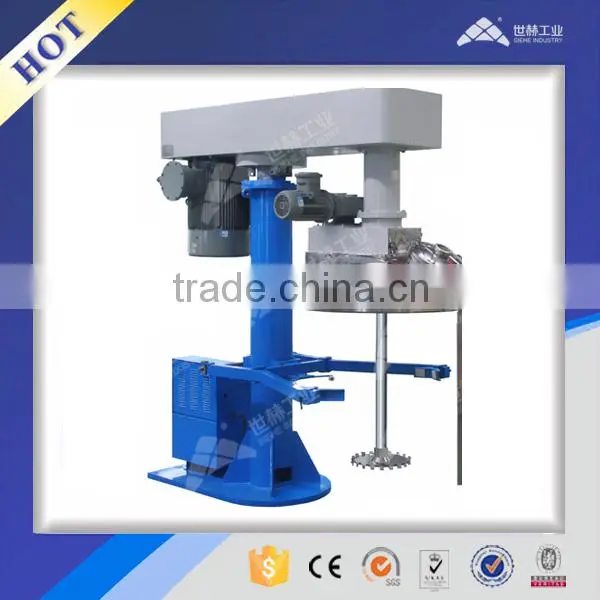

distemper paint mixing machine
- 15 Set / Sets per Month
- Shanghai Port
- T/T
Product Details
Condition: | New | Mixer Type: | Other, dispersing disc | Product Type: | Paint |
Application: | Other, liquid-solid, liquid-liquid | Additional Capabilities: | Other, dispersing, mixing, dissolving | Place of Origin: | Shanghai, China |
Brand Name: | Siehe | Model Number: | SFSY | Max. Loading Capacity: | 10000L |
Voltage: | 380V/50HZ(can be customized) | Power(W): | accordingly | Dimension(L*W*H): | accordingly |
Certification: | CE,ISO, | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
distemper paint mixing machine
Main Features:
- Hydraulic system, stable running, can lifting up and down frequently.
- With customized dispersing disc.
- With customized clamping
- Specially made hydraulic cylinder can realize oil-leakage free.
- Non-explosion proof and explosion proof configuration for option, explosion proof grade can be customized.
- With OMRON/EMERSON inverter, realize frequency converter control.
Technical Parameters:
Model | Capacity | Motor Power | Speed | Disc Dia | Lifting | Hydraulic power | weight |
SFSY-1.5 | ≤50 | 1.5 | 0-1450 | 150 | 600 | 0.55 | 400 |
SFSY-4 | ≤200 | 4 | 0-1450 | 200 | 800 | 0.55 | 600 |
SFSY-7.5 | ≤400 | 7.5 | 0-1450 | 230 | 900 | 0.55 | 800 |
SFSY-11 | ≤500 | 11 | 0-1450 | 250 | 900 | 0.55 | 1000 |
SFSY-15 | ≤700 | 15 | 0-1450 | 280 | 900 | 0.55 | 1100 |
SFSY-18.5 | ≤800 | 18.5 | 0-1450 | 300 | 1100 | 0.75 | 1300 |
SFSY-22 | ≤1000 | 22 | 0-1450 | 350 | 1100 | 0.75 | 1400 |
SFSY-30 | ≤1500 | 30 | 0-1450 | 400 | 1100 | 0.75 | 1500 |
SFSY-37 | ≤2000 | 37 | 0-1450 | 400 | 1600 | 1.1 | 1600 |
SFSY-45 | ≤2500 | 45 | 0-1450 | 450 | 1600 | 1.1 | 1900 |
SFSY-55 | ≤3000 | 55 | 0-1450 | 500 | 1600 | 1.1 | 2100 |
SFSY-75 | ≤4000 | 75 | 0-950 | 550 | 1800 | 2.2 | 2300 |
SFSY-90 | ≤6000 | 90 | 0-950 | 600 | 1800 | 2.2 | 2600 |
SFSY-110 | ≤8000 | 110 | 0-950 | 700 | 2100 | 3 | 3100 |
SFSY-132 | ≤10000 | 132 | 0-950 | 800 | 2300 | 3 | 3600 |
Remarks:
*The above listed Max. processing capacity is calculated as per water as medium. The model selection should depend on the comprehensive factors such as materials viscosity, specific gravity etc.
*If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc, correct data is required for correct model selection.
*If any changes of the data and picture,no further notice is provided.Correct parameter is based on the real object provided.
*The sheet is not including all the products.To know more information,Pls feel free to contact our sales engineers.
