Solvent Based varnish anti-corrosion paint finishing varnish production line
SIEHE solventbased production line ranges from single equipment with 500T/year capacity to complete production line with 100,000 ton/year capacity. We have successfully serviced customers from various of industries including nitro lacquer, polyurethane paint, enamel, varnish, anti-corrosion paint, finishing varnish, epoxy paint, etc..

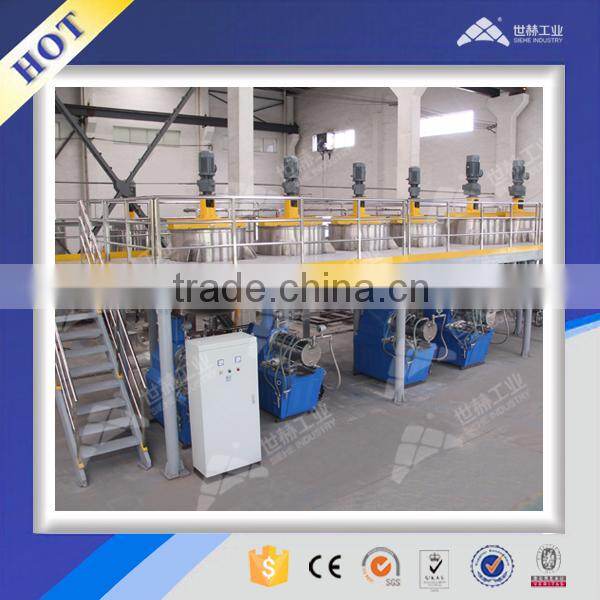

Solventbased paint complete line consists of raw materials auto feeding system, metering system, dispersing and milling system, tinting system, filling system, auto control system, platform and color paste manufacturing part. The entire production line from charging, discharge to packing is totally automatic with high efficiency. And the international advanced dispersing and milling machine ensures nice products fineness and quality.
Working Principle:
Generally speaking, water-based paint production process contains following steps: batching, dispersing, milling, tinting, filtering and filling.
Batching and conveying: liquid batching adopts pumps, flow meter; powder batching adopts weighing system and air conveying; additives batching adopts weighing method.
Dispersing: the first step to make paste. Powder material is equably dispersed into liquid by high speed disperser which generates uniform white paste without aggregation.
Milling: second step of making paste. White paste are ground to required fineness by German-tech basket mill.
Tinting: emulsion, color paste and additive are added into paste and mixed by single shaft or multi-functional mixer in tinting kettle.
Filtering: impurities are removed with the help of bag type filter or self-cleaning filters.
Filling: filtered product are filled whose specification is normally 10-25kg. Semi-auto or automatic filling machine are optional.
WHY US
| Good fineness and High Stability | Dispersing and milling all-in-one machine basket mill is applied in plant as milling device which shows good products withgood fineness, high stability, small chromatism and less pollution. |
| Environmentally-friendly and Safe Operation | Products are manufactured in totally closed flow line production surroundings, there is no dust in workshop which reduces operators’ workload and improves efficiency to large extent. |
| Wide Range of Products and Easy to Change and Clean | Tinting system is able to produce and tint paint products in high, middle, low viscosity and easy to clean. Multi-function tinting kettle is optional to manufacturing high-build coatings, such as Gigging paint, elastic coating, putty and etc. |
| Highly Automatic | Powder and liquid storage and batching system, automatic filling system, PLC control system are optional according to process to realize the automatic produce and remote control. |
