Home > Products > Complete Production Line > liquid coating mixing equipment
liquid coating mixing equipment
- 30 Unit / Units per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shanghai, China | Brand Name: | SIEHE | Model Number: | SSXX |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

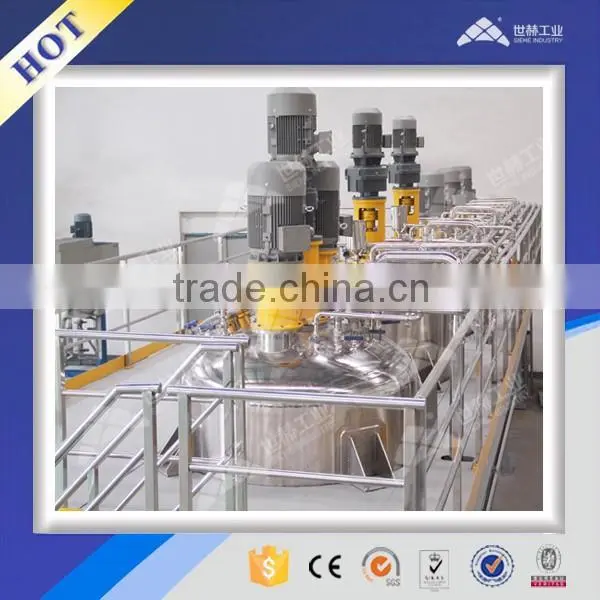

Liquid coating mixing equipment
SIEHE waterbased production equipment ranges from single equipment with 500T/year capacity to complete production line with 100,000 ton/year capacity. We have successfully serviced customers specialized in waterbased paint, water dilutable coating, water dispersible paint(latex paint), water soluble alkyd resin, water soluble epoxy resin, inorganic polymer water-based resin, etc..
Working Principle:
Generally speaking, water-based paint production process contains following steps: batching, dispersing, milling, tinting, filtering and filling.
Batching and conveying: liquid batching adopts pumps, flow meter; powder batching adopts weighing system and air conveying; additives batching adopts weighing method.
Dispersing: the first step to make paste. Powder material is equably dispersed into liquid by high speed disperser which generates uniform white paste without aggregation.
Milling: second step of making paste. White paste are ground to required fineness by German-tech basket mill.
Tinting: emulsion, color paste and additive are added into paste and mixed by single shaft or multi-functional mixer in tinting kettle.
Filtering: impurities are removed with the help of bag type filter or self-cleaning filters.
Filling: filtered product are filled whose specification is normally 10-25kg. Semi-auto or automatic filling machine are optional.
WHY US
Good fineness and High Stability | Dispersing and milling all-in-one machine basket mill is applied in plant as milling device which shows good products withgood fineness, high stability, small chromatism and less pollution. |
Environmentally-friendly and Safe Operation | Products are manufactured in totally closed flow line production surroundings, there is no dust in workshop which reduces operators’ workload and improves efficiency to large extent. |
Wide Range of Products and Easy to Change and Clean | Tinting system is able to produce and tint paint products in high, middle, low viscosity and easy to clean. Multi-function tinting kettle is optional to manufacturing high-build coatings, such as Gigging paint, elastic coating, putty and etc. |
Highly Automatic | Powder and liquid storage and batching system, automatic filling system, PLC control system are optional according to process to realize the automatic produce and remote control. |
Contact Us
- Shanghai Siehe Mechanical & Electrical Equipment Co., Ltd.
- Contact nameSusan Yang
- Phone86-21-52913185
- AddressFloor 13, Building 10, Lvzhou Zhonghuan Center, No. 1628
