Scrap Tire Shredder Machine With Best Quality

Scrap Tire Shredder Machine With Best Quality photo-1
US$ 1,375 - 12,005 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rubber Cutting Machine
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Rubber Cutting Machine
Place of Origin Henan, China
Brand Name Xinyutian
Model Number QG series
Voltage 380V 50Hz
Power(W) 28.7kw
Dimension(L*W*H) 1300*750*1580mm
Weight 3900kg
Certification SGS
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas









Product Description



rubber tires recycling machinery/waste tire recycling equipment/used tire recycling equipment





 ---sidewalls cutter,strips cutter,blocks cutter,bead wire separator



professional manufacturer,mass production,cost price,prompt delivery.

best choose for recycling radial tire,truck tire and nylon tire.

normal running life can reach 5-8years except for replacing vulnerable parts like blades,belts and others.





---Brief introduction for each machine

1.sidewalls cutter

Scrap Tire Shredder Machine with Best Quality  Scrap Tire Shredder Machine with Best Quality

ring cutter is used for cutting the used tire into three parts,two sidewalls and one tread.

spare blades can be sent together with machines free of charge.



model

motor

(kw)

processing range(mm)

weight

(kg)

dimension

(mm)

 production
QKF850 2.2 750-1200 300 1300*900*1480  2ton tire/h

2.strips cutter

 Scrap Tire Shredder Machine with Best Quality   Scrap Tire Shredder Machine with Best Quality

 strips cutter is used for cutting the sidewalls and tread into rubber strips.

 circle blades can run for at least 1 year,grind and sharp are necessary for maintain.

model

motor

(kw)

 processing range

(mm)

 weight

(kg)

dimension

(mm)

production
QT380  4 750-1200  900  1300*750*1580  1ton/hour

 3.blocks cutter

Scrap Tire Shredder Machine with Best Quality  Scrap Tire Shredder Machine with Best Quality

blocks cutter is used for cutting rubber strips into rubber blocks.

3 pieces blades can run for at least half year,grind and sharp are necessary for maintain.

model motor(kw)  processing range(mm) weight(kg) dimension(mm) production
QK200 7.5  750-1200 450  800*810*1070 1ton/hour



4.bead wire separator

Scrap Tire Shredder Machine with Best Quality  Scrap Tire Shredder Machine with Best Quality



bead wire separator is to separate the whole steel circle from bead.

cast steel rollers can run for at least 2 years,grind and welding are necessary for maintain.



model motor(kw) Processing range Weight(kg) Dimension(mm) production
GF240 15 bead tire 1800

1520*1180*122



 30pieces tire/hour

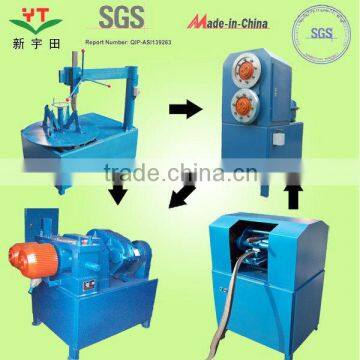

 ---Final output

  Scrap Tire Shredder Machine with Best Quality









Company Information







---About Xinyutian

Xinxiang Xinyutian Rubber&Plastic Machinery Co.,ltd locates in the important industry area of Yubei.Our enterprise is dedicated to research and develop waste tire recycling equipments that have been sold all over the world.what is more,we got great feedback from our customers in Asia,Central Asia,North Europe and South America.





Our Services





---Advantages of Xinyutian

1.special manufacturer that has professional producing team and technical support

level sale teams to communicate with clients by email,telephone,face to face.

fessional explanation to clients about machines(techonogy,apply,using guide and so on)

4.best after sale---follow the whole producing situation,provide photos of machines loaded into containers, track the operating and using situation of client in case of any problems occur.

5.reasonable price

6.flexible delievery time

7.more than 15 years of experience of exporting ability

  Scrap Tire Shredder Machine with Best Quality    Scrap Tire Shredder Machine with Best Quality

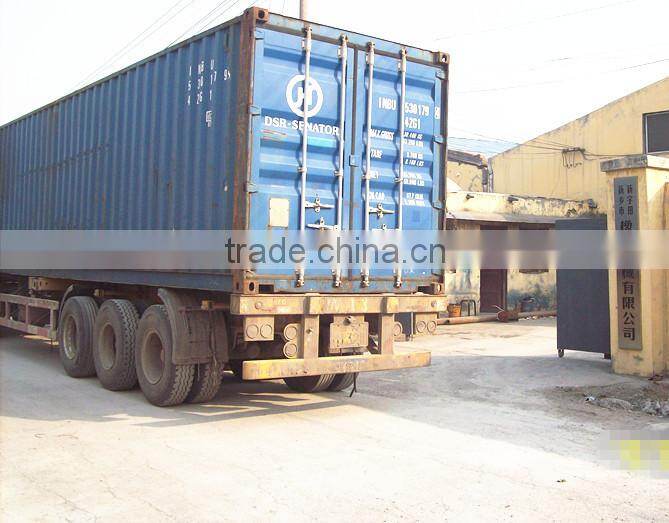

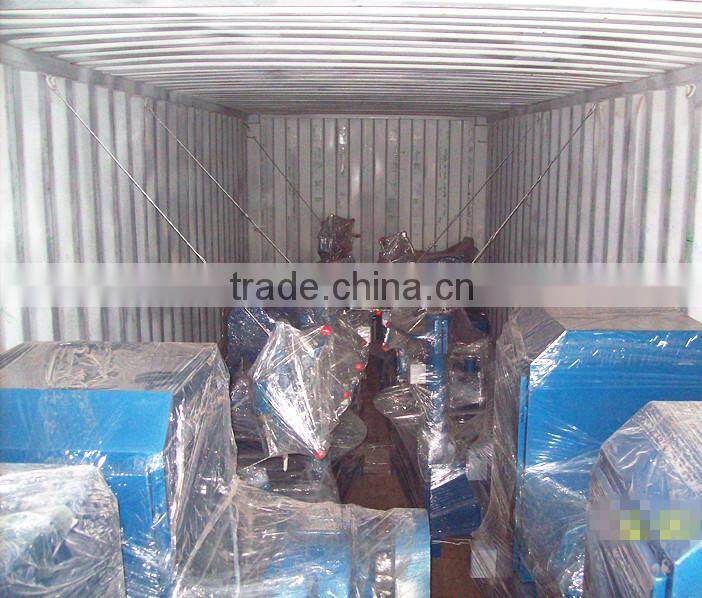

---delivery machines to abroad



Scrap Tire Shredder Machine with Best Quality  Scrap Tire Shredder Machine with Best Quality











---Welcome inquiry from overseas friends,Contact us at any time!Favourate discount can be granted!
