Improved rubber production line
waste tire crusher equipment consist of tire cutting machines and tire crusher unit.

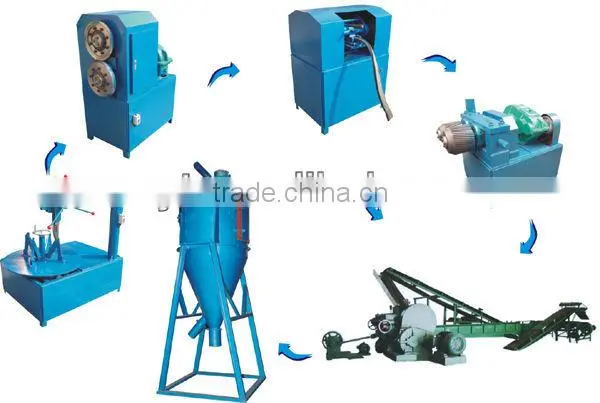

waste tire---beads separated---cutting strips---cutting blocks---separate steel wire---crush tire blocks into rubber powder---magnetic separation---fiber separated---rubber powder and fiber packed
Ring cutter is the first of rubber production line.
1.The machine is used for cutting the used tires into tread and beads.
2. such cutting procedure is first part of rubber cutting line.
Main parameters:
| model | motor(kw) | processing range(mm) | equipped with power | weight(kg) | dimension(mm) | production |
| QKF850 | 2.2 | 900-1200 | 380v 50Hz | about300 | 1300*900*1480 | 40-60pieces/hour |
Strip cutter is the second of rubber production line.
1.The function of the machine is to cut tread and sidewall into strips.
2.Such cutting procedure is second part of rubber cutting line.
Main parameters:
| model | motor(kw) | processing range(mm) | equipped with power | weight(kg) | dimension(mm) | production |
| QT380 | 4 | 900-1200 | 380v 50Hz | 900 | 1300*750*1580 | 1ton/hour |
Block cutter is the third of rubber production line.
1.The machine is used for cutting tire strips into block which are 30-50mm.
2.Such cutting procedure is third part of rubber cuttting line.
Main parameter:
| model | motor(kw) | processing range(mm) | equipped with power | dimension(mm0 | production | weight(kg0 |
| QK200 | 7.5 | 900-1200 | 380v 50Hz | 800*810*1070 | 1100blocks/min | about450 |

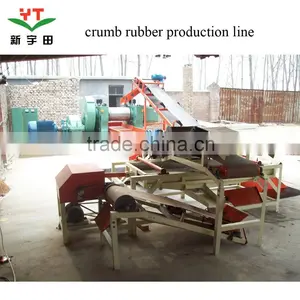

tire crusher unit
Steel separated in crumb rubber
The tire crusher unit is one mainly machine in the Waste tire recycling machine or Line. and its function is to crush tire blocks into different sizes of rubber powder, and the steel wire and fiber completely separated from the final mixing rubber powder. Such machine consist s of four parts: Crusher, main vibrating screen, main conveyor,magnetic separation system.
Main parameters of Crusher:
Type |
diameter of rollers *length(mm) |
speed ratio of rollers |
the biggest distance of two rollers (mm) |
numbers of revolutions |
motor power(kw) |
dimensions(mm) |
weight |
| XKP-400 |
400*600 |
1:1.38 |
10 | 13.65 |
45 |
4210*1850*1925 |
7500kg |
| XKP-450 |
450*760 |
1:1.38 |
10 | 16.57 |
55 | 4550*1970*1860 |
11000kg |
| XKP-450 |
560*800 |
1:1.38 |
15 | 15.5 |
75 | 5620*2260*1900 |
19000kg |
Waste tire crusher equipment is mainly to recycle tire into rubber powder industry.
About rubber powder
Application of rubber powder as blow:
1. Rubber products(safety cushion,road islation barrier, rubber tube,rubber sheet,rubber sole)
2. Auto industry(tire,vibration absorbing material,shock absorber)
3. Athletic sports ground(runway,rubber title,court)
4. Building material(rubber tile,rubber floor brick,waterproof)
5. Road engineering and bitumious road surfacin(to be mixed with asphalt,be used for surfacing roads or underground railway)
About us
The mottor of our enterprise is:“Science leading,Quality first,Customer supreme,Service superior”. XinYuTian is willing to stick to the spirit of enterprise“pursuing superiority and creatingexcellence”.Warmly welcome friends of domestic and abroad to establish relationship on thebasis of mutual benefit.
Great feedback from our customers in India,UZ,Central Asia,North Europe and South America creat a high reputation for us.
Welcome inquiry from overseas friends,Contact us at any time!
Tel:+86(0)373 3033288
Fax: +86(0)373 3692059
mobile:+86 15936531984
skype:wjangelabaibai
Address:Xinpu Road,Xinxiang City,Henan Pro.China
