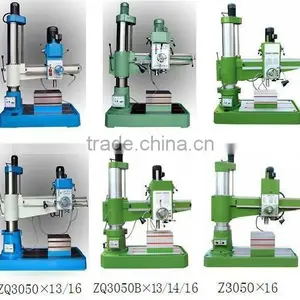

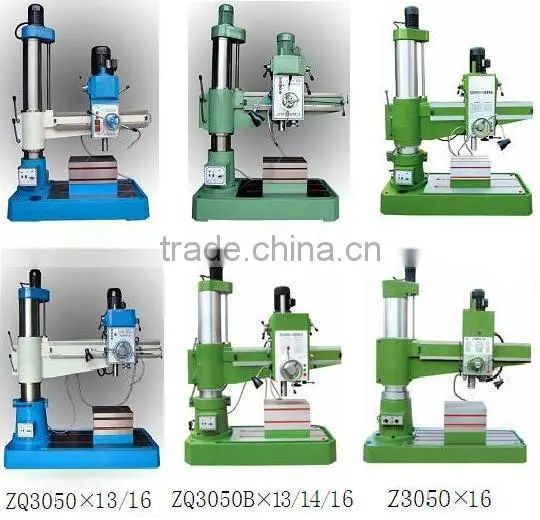

ZQ30/Z30 Series Radial Drilling Machines

Name: ZQ30/Z30 Series Radial Drilling Machines
Brand: Longshan
SKU: 100430813
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Place of Origin:

Shandong, China

Zaozhuang Longshan Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Place of Origin Shandong, China

Brand Name Longshan

Model Number ZQ30, Z30

Voltage 380V 50HZ 3PH or negotiable

Certification ISO9001:2008

Specifications

1. High cost performance.
2. Easy operation.

Specifications		ZQ3032*9	ZQ3032*10	ZQ3035*10	ZQ3040C*10	ZQ3040C*12	ZQ3040C*13	ZQ3050*13	ZQ3050* 16	ZQ3050B*13	ZQ3050B*14	ZQ3050B*16	Z3050*16
Max. drilling dia.(steel/cast iron)	mm	25/32	25/32	32/35	35/40	35/40	40/50	40/50	40/50	40/50	40/50	45/50	45/50
Spindle taper		MT.4					MT.5
Motor power	Kw	2.2/0.55	2.2/0.55	2.2/0.75	3/0.75	3/0.75	3/1.1	4/1.1	4/1.1	4/1.1	4/1.1	4/1.1	4
Spindle speed/steps	r.p.m	6	6	75-1220/6	38-900/6	38-900/6	38-900/6	80-1122/6	80-1122/6	35—1300/12	35—1300/12	35—1300/12	25-2000
Spindle feed /steps	mm/r							0.13-1.30/6	0.13-1.30/6	0.10-1.00/6	0.10-1.00/6	0.10-1.00/6	0.04-3.20/ 16
Spindle travel	mm	120	120	190	270	270	270	250	250	315	315	315	315
Spindle center to column surface	mm	260-775	260-875	250-850	350-830	350-1030	350-1130	330-1110	330-1410	350-1100	350-1220	350-1420	350-1370
Horizontal travel of spindle box	mm	515	615	600	480	680	780	780	1080	750	870	1070	1020
Table size	mm	425310305	425310305	415305305	495305 305	495305 305	495305 305	575405405	575405 405	575405 405	575405 405	575405 405	600500 500
Column diameter	mm	180	180	200	230	230	280	280	280	280	280	280	350
Spindle nose to base surface	mm	220-1100	220-1100	260-1000	130-1100	130-1100	130-1050	260-1000	285-1250	100-1100	100-1100	200-1180	320-1220
Overall dimensions LWH	mm	14007101880	15007201880	15307002100	16007052350	19007202350	19008302450	20008002350	21208702420	20008002400	20008002400	23009002500	250010702840
N.W.	kg	800	850	1100	1650	1800	2200	2400	3100	2500	2800	3200	3500
G.W.	kg	900	950	1200	1750	2050	2450	2600	3300	2700	3000	3400	3800
Features		Auto Lift		Auto Feed & Lift		Auto Feed & Lift, Double columns							Hydraulic
