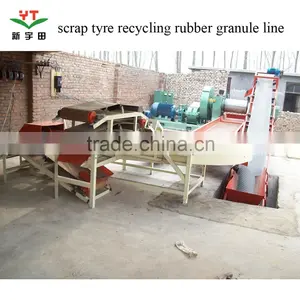

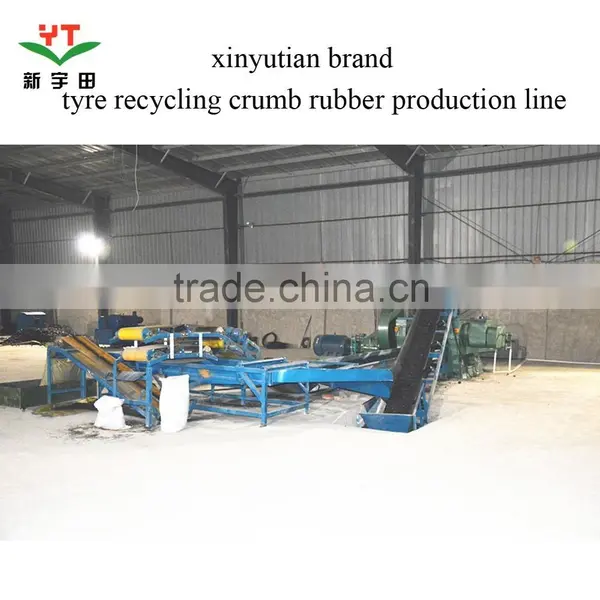

XKP-560Z Crumb waste tire recycling machine
crumb waste tire recycling machine consist of tire cutting machines and tire crusher unit.

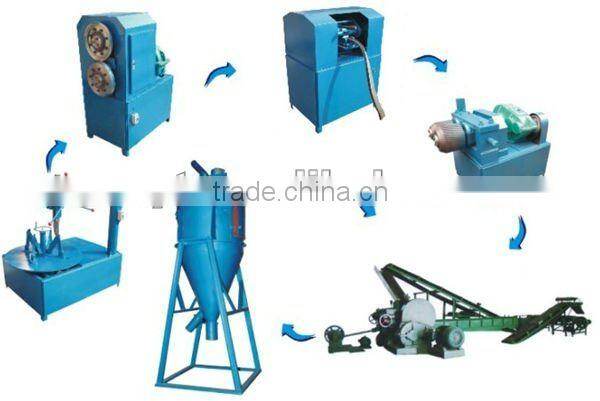

waste tire---beads separated---cutting strips---cutting blocks---separate steel wire---crush tire blocks into rubber powder---magnetic separation---fiber separated---rubber powder and fiber packed
Ring cutter is the first of waste tire recycling machine or line.
1.The machine is used for cutting the used tires into tread and beads.
2. such cutting procedure is first part of rubber cutting line.
Main parameters:
| model | motor(kw) | processing range(mm) | equipped with power | weight(kg) | dimension(mm) | production |
| QKF850 | 2.2 | 900-1200 | 380v 50Hz | about300 | 1300*900*1480 | 40-60pieces/hour |

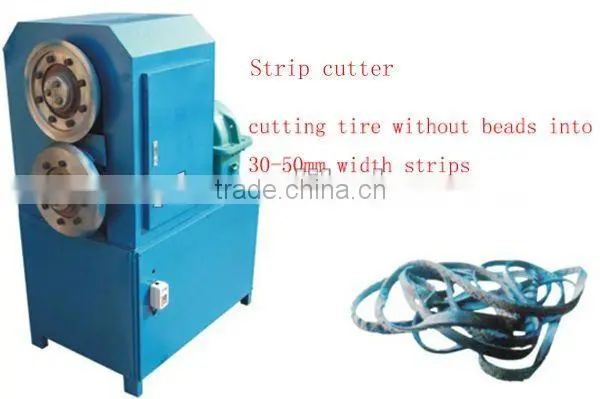

Strip cutter is the second of waste tire recycling machine or line.
1.The function of the machine is to cut tread and sidewall into strips.
2.Such cutting procedure is second part of rubber cutting line.
Main parameters:
| model | motor(kw) | processing range(mm) | equipped with power | weight(kg) | dimension(mm) | production |
| QT380 | 4 | 900-1200 | 380v 50Hz | 900 | 1300*750*1580 | 1ton/hour |

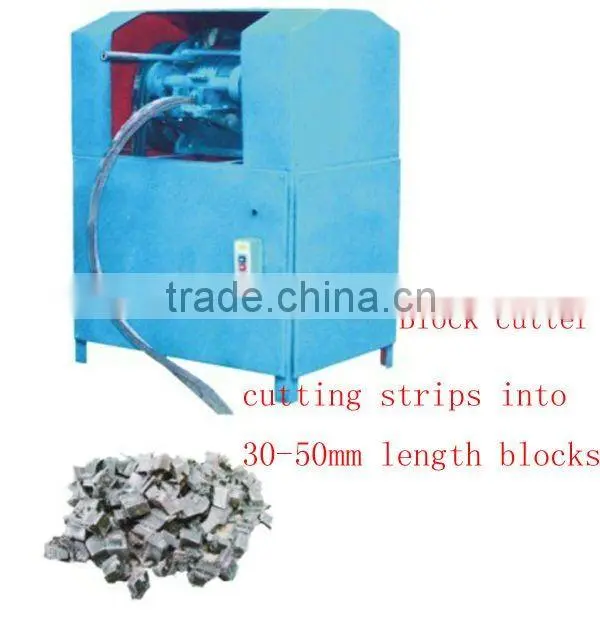

Block cutter is the third of waste tire recycling machine or line.
1.The machine is used for cutting tire strips into block which are 30-50mm.
2.Such cutting procedure is third part of rubber cuttting line.
Main parameter:
| model | motor(kw) | processing range(mm) | equipped with power | dimension(mm0 | production | weight(kg0 |
| QK200 | 7.5 | 900-1200 | 380v 50Hz | 800*810*1070 | 1100blocks/min | about450 |

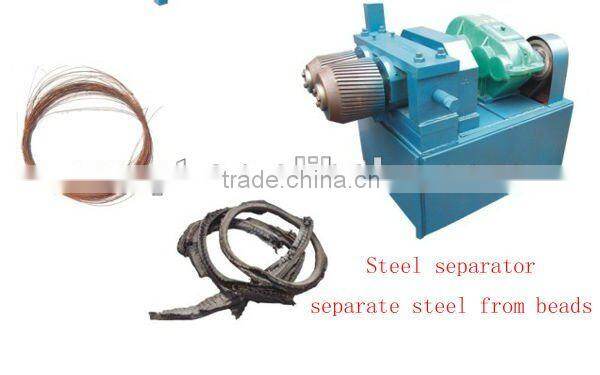

Steel separator is the optional machine of waste tire recycling machine or line.
1.The machine is used for extracting the steel wire from the tire beads.
2.Such cutting procedure is one optional part of rubber cutting line.
Main parameters:
| model | motor(kw0 | processing range | equipped with power | dimension(mm) | production |
| GF240 | 15 | diameter of hub | 380v 50Hz | 1520*1180*1200 | 1piece/min |

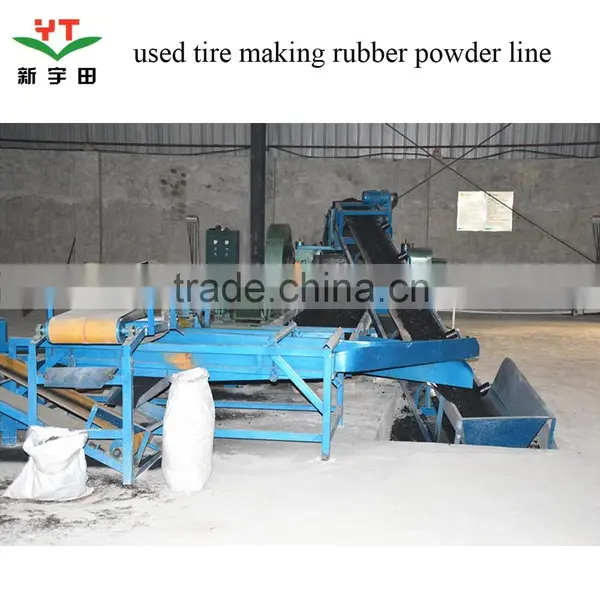

tire crusher unit

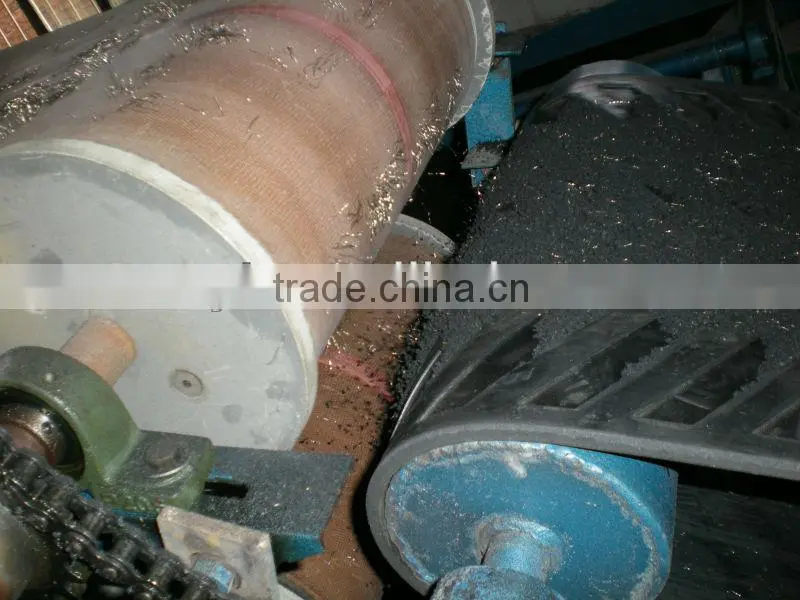

The tire crusher unit is one mainly machine in the Waste tire recycling machine or Line. and its function is to crush tire blocks into different sizes of rubber powder, and the steel wire and fiber completely separated from the final mixing rubber powder. Such machine consist s of four parts: Crusher, main vibrating screen, main conveyor,magnetic separation system.
Main parameters of Crusher:
Type |
diameter of rollers *length(mm) |
speed ratio of rollers |
the biggest distance of two rollers (mm) |
numbers of revolutions |
motor power(kw) |
dimensions(mm) |
weight |
| XKP-400 |
400*600 |
1:1.38 |
10 | 13.65 |
45 |
4210*1850*1925 |
7500kg |
| XKP-450 |
450*760 |
1:1.38 |
10 | 16.57 |
55 | 4550*1970*1860 |
11000kg |
| XKP-450 |
560*800 |
1:1.38 |
15 | 15.5 |
75 | 5620*2260*1900 |
19000kg |
| Model | Motor | weight | processing range | dimension | production |
| KF1200 | 6.25kw | 2200kg | rubber powder | 1460*1500*4200mm | 500kg/h |

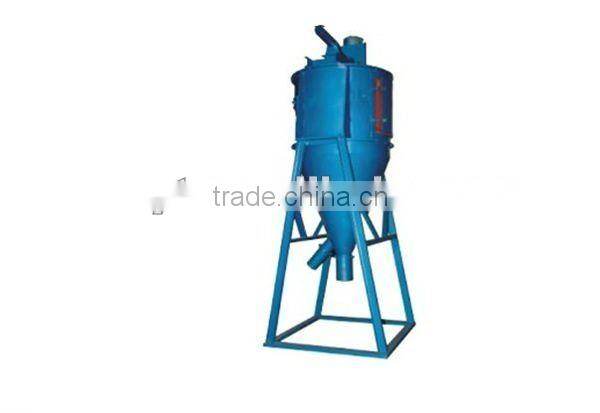

The machine is to separate the fiber from 20-24mesh rubber powder.
Waste tire recycling machine is mainly to tire recycling into rubber powder industry.
About rubber powder
Application of rubber powder as blow:
1. Rubber products(safety cushion,road islation barrier, rubber tube,rubber sheet,rubber sole)
2. Auto industry(tire,vibration absorbing material,shock absorber)
3. Athletic sports ground(runway,rubber title,court)
4. Building material(rubber tile,rubber floor brick,waterproof)
5. Road engineering and bitumious road surfacin(to be mixed with asphalt,be used for surfacing roads or underground railway)
About us
The mottor of our enterprise is:“Science leading,Quality first,Customer supreme,Service superior”. XinYuTian is willing to stick to the spirit of enterprise“pursuing superiority and creatingexcellence”.Warmly welcome friends of domestic and abroad to establish relationship on thebasis of mutual benefit.

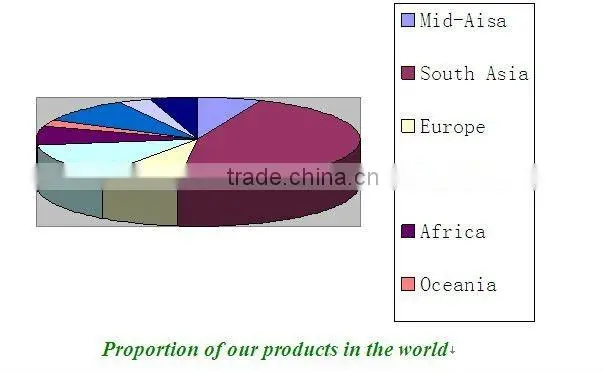

Great feedback from our customers in India,UZ,Central Asia,North Europe and South America creat a high reputation for us.
Contact us, Please!
URL:
Phone: +86 13673507439
Skype: bellababy521
Customers from Brazil in 2010
Customers from Russian in 2008
AQ
Delivery time
within 10 days after we get your 30% down payment
Terms of payment
L/C,T/T, Western Union
30%of the total contract value to be paid by T/T as down payment, and the balance 70% should be paid by T/T before delivery the goods.
Transportation
LCL
Warranty period and after sales
one year. In the warranty period, If there are any troubles with the machines, we manufacturers will send engineers to repair or replace the parts free(except for easy broken parts ,like rollers and knife/blade. One year later, we still responsible for the machine ,but the costs shall be borne by the buyers.
Welcome inquiry from overseas friends,Contact us at any time!
URL:
Tel:+86(0)373 3033288
Fax: +86(0)373 3692059
mobile:+86 15936531984
skype:wjangelabaibai
Address:Xinpu Road,Xinxiang City,Henan Pro.China
