Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > X20 Series Heavy Plano Millers

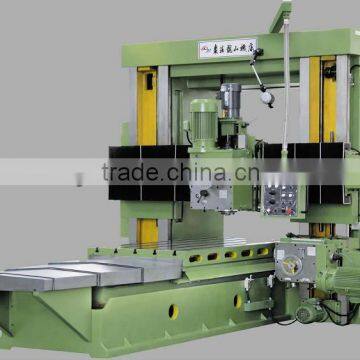

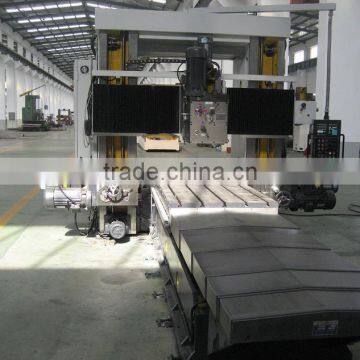

X20 Series Heavy Plano Millers

Name: X20 Series Heavy Plano Millers
Brand: Longshan
SKU: 100430683
Availability: InStock

X20 Series Heavy Plano Millers thumbnail-1

X20 Series Heavy Plano Millers thumbnail-2

X20 Series Heavy Plano Millers thumbnail-3

X20 Series Heavy Plano Millers thumbnail-4

X20 Series Heavy Plano Millers thumbnail-5

X20 Series Heavy Plano Millers thumbnail-6

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Longshan

Contact Supplier Request Quote Chat Now

Zaozhuang Longshan Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name Longshan

Model Number X20

Type Other, Gantry

CNC or Not Normal

Voltage 380V 50HZ 3PH or negotiable

Power(W) negotiable

Dimension(L*W*H) negotiable

Weight negotiable

Certification ISO9001:2008

Warranty 1 year under normal operation

After-sales Service Provided Engineers available to service machinery overseas

Specifications

This series of plano millers possess
1. High-percision
2. Core technique originates from Taiwan.
3. High cost performance

Core technique of it originates from Taiwan, scientific & logical design of the structure and adoption of the advanced function unit can realize strong cutting function,high working efficiency,safe & reliable movement and long working life.

1.Heat-treatment technics & mechanical lubrication are adopted on the guideway of the machine body to reduce friction & prolong working life of the machine.

2.Stepless table speed change.

3.Rigid machine bed/beam/column ensure stability of the machine in strong cutting.

4.Milling head can move vertically/horizontally or swivel ±30°.

It is used in machining, moulding and some other industries, especially the machining of plane/end face/inclined plane/T slot/ combined guideway of large/medium/small machine parts.

Specifications					X20 series Heavy Plano millers
					X2014-20	X2014-30	X2014-40	X2014-60	X2016-30	X2016-40	X2016-60	X2020-40	X2020-60			X2025-40	X2025-60
Table	Size(WxL) mm				1000 x 2000	1000 x 3000	1000 x 4000	1000 x 6000	1200 x 3000	1200 x 4000	1200 x 6000	1600 x 4000	1600 x 6000			2000 x 4000	2000 x 6000
	Feeding speed mm/min				0-260								0-390
	Fast feeding speed mm/min				2500
	Motor power mm				4	5.5					7.5	5.5	7.5
	Max. load kg				4000	5000	6000	7000	7000	8000	10000	8000	12000			10000	14000
Max. workpiece dimensions			Length mm		2000	3000	4000	6000	3000	4000	6000	4000	6000			4000	6000
			Width mm		1400				1600			2000				2500
			Height mm		800				1200			1500
Distance between columns mm					1450				1620			2020				2520
Milling head		Motor power kw			7.5											11
		Spindle taper			ISO50
		Spindle speed r/min			100-685(6 steps)											66-660(8 steps)
		Swivel angle			± 30°
Power of motor for spindle box feed kw															1.5
Distance from spindle nose to table surface				Vertical mm	0-800				0-1200			0-1500
				Horizontal mm	100
Recommendatory milling disc diameter mm					Φ160									Φ200
External dimensions			Length mm		6080	8080	10080	14080	8080	10080	14080	10080	14080			10080	14080
			Width mm		2630	2630	2630	2630	3230	3230	3230	3630	3630			4300	4300
			Height mm		2800	2800	2800	2800	3000	3000	3000	3500	3500			3500	3500
