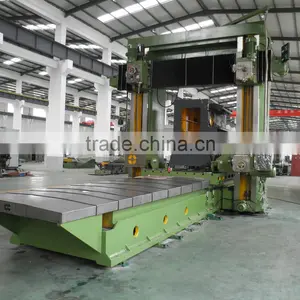

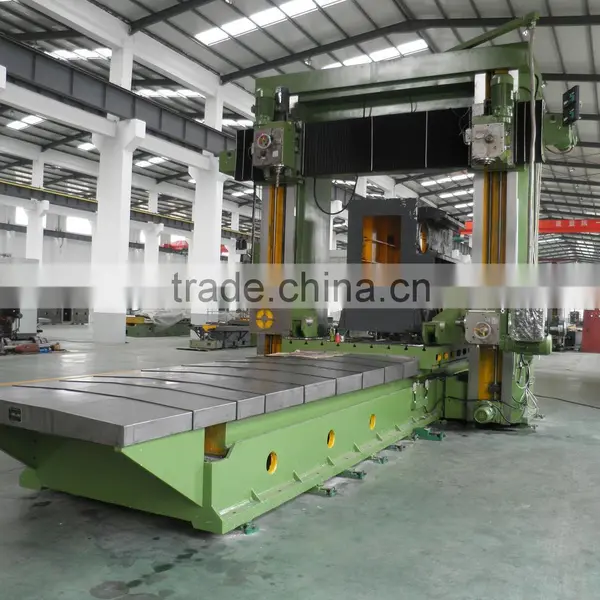

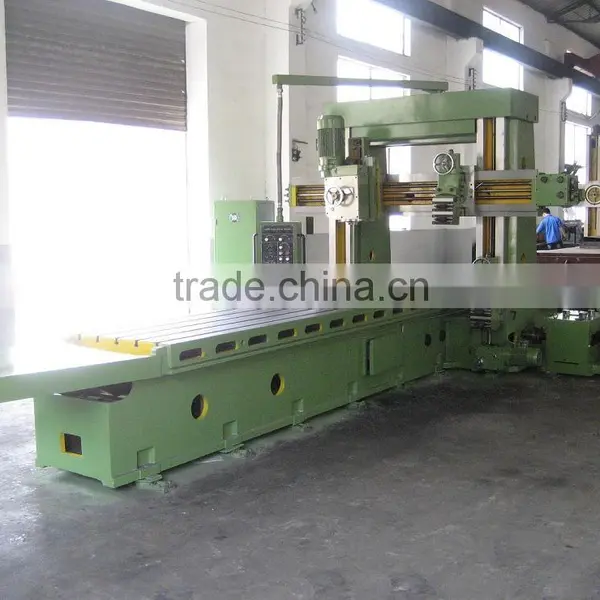

Help CenterX20 Series Planer Milling and Boring Machine
Related Products
-
BXM20 Series Heavy Planer Milling MachinesNegotiableMOQ: 1 Set -
BXM20 Series Super Heavy Planer Milling MachinesNegotiableMOQ: 1 Set
-
BXMQ20 Series Light Planer Milling MachinesNegotiableMOQ: 1 Set
-
X12 Series Face Milling MachineUS$ 20,000 - 200,000MOQ: 1 Set
-
Milling Heads/grinding HeadsNegotiableMOQ: 1 Set
Specifications
1. High cost performance.2. Core technique originates from Taiwan.
3. Can be designed as customers' special requirements.
Core technique originates from Taiwan, the scientific & logical design of the structure and the adoption of the advanced function unit can realize strong cutting function and safe & reliable movement and long working life.
1.Heat-treatment technics & mechanical lubrication are adopted on the guideway of the machine body to reduce friction & prolong the working life of the machine.
2.Stepless speed change of table.
3.Rectangular or flat-V bed guideways, rigid machine bed/beam/column ensure stability of the machine in strong cutting.
4.Milling head can move vertically or swivel ±30°.
It is used in machine work,moulding and some other industries,especially the processing of plane/end face/inclined plane/T slot/ combined guideway of large/medium/small machine parts.
Specifications |
X20 series Heavy Plano millers |
||||||||||||||||
X2014-20 |
X2014-30 |
X2014-40 |
X2014-60 |
X2016-30 |
X2016-40 |
X2016-60 |
X2020-40 |
X2020-60 |
X2025-40 |
X2025-60 |
|||||||
Table |
Size(WxL) mm |
1000 x 2000 |
1000 x 3000 |
1000 x 4000 |
1000 x 6000 |
1200 x 3000 |
1200 x 4000 |
1200 x 6000 |
1600 x 4000 |
1600 x 6000 |
2000 x 4000 |
2000 x 6000 |
|||||
Feeding speed mm/min |
0-260 |
0-390 |
|||||||||||||||
Fast feeding speed mm/min |
2500 |
||||||||||||||||
Motor power mm |
4 |
5.5 |
7.5 |
5.5 |
7.5 |
||||||||||||
Max. load kg |
4000 |
5000 |
6000 |
7000 |
7000 |
8000 |
10000 |
8000 |
12000 |
10000 |
14000 |
||||||
Max. workpiece dimensions |
Length mm |
2000 |
3000 |
4000 |
6000 |
3000 |
4000 |
6000 |
4000 |
6000 |
4000 |
6000 |
|||||
Width mm |
1400 |
1600 |
2000 |
2500 |
|||||||||||||
Height mm |
800 |
1200 |
1500 |
||||||||||||||
Distance between columns mm |
1450 |
1620 |
2020 |
2520 |
|||||||||||||
Milling head |
Motor power kw |
7.5 |
11 |
||||||||||||||
Spindle taper |
ISO50 |
||||||||||||||||
Spindle speed r/min |
100-685(6 steps) |
66-660(8 steps) |
|||||||||||||||
Swivel angle |
± 30° |
||||||||||||||||
Power of motor for spindle box feed kw |
1.5 |
||||||||||||||||
Distance from spindle nose to table surface |
Vertical mm |
0-800 |
0-1200 |
0-1500 |
|||||||||||||
Horizontal mm |
100 |
||||||||||||||||
Recommendatory milling disc diameter mm |
Φ160 |
Φ200 |
|||||||||||||||
External dimensions |
Length mm |
6080 |
8080 |
10080 |
14080 |
8080 |
10080 |
14080 |
10080 |
14080 |
10080 |
14080 |
|||||
Width mm |
2630 |
2630 |
2630 |
2630 |
3230 |
3230 |
3230 |
3630 |
3630 |
4300 |
4300 |
||||||
Height mm |
2800 |
2800 |
2800 |
2800 |
3000 |
3000 |
3000 |
3500 |
3500 |
3500 |
3500 |
||||||
