Specifications

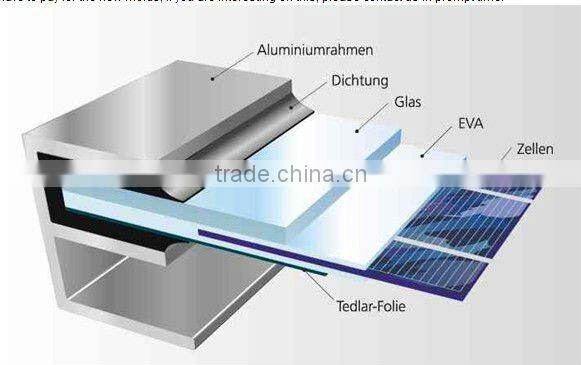

Aluminium frame for solar module.1)30*25 suitable for 30-120w solar modules
2)50*35 for 160-220w
3)35*35 for 80-180w
A)Features:
1) 30*25 suitable for 30-120w solar modules
2) 35*35 suitable for 80-180w solar modules
3) 50*35 suitable for 160-220w solar modules
4) Many other custom made sizes available, such as 45*35mm, 60*35mm, 46*40mm, 46*50mm, etc.
Common specifications:
1956*992*50mm
1650*992*45mm
1640*992*45mm
1580*808*40mm
1576*808*40mm
1482*670*40mm
1200*545*35mm
754*669*30mm
824*545*30mm
620*286*30mm
(B)Two Types:
1) 90°-Angle
2) 45°-Angle
(C)Surface Treatment:
1) Anodizing (clear, satin, bronze, black, golden, silver, other multicolor)
2) Electrophoresis
3) Powder coating, PVDF, polishing, sand blasting, etc.
Standard: GB/T5237-2004, Q/320281PDW01-2008
Certification: ISO9001, ISO14001, CQM
Specification: According to your design drawings and your samples
Notice:
1. We have all kinds of sizes for the aluminum solar frame, so you need not to pay for the new molds.
2. Our cross sections of aluminum solar frame are very popular in Europe.
3. We can support the aluminum solar module frame according your design drawings and samples, but you have to pay for the new molds, if you are interesting on this, please contact us in prompt time.
Advantage of our products:
- Good surface solar fame, complete range of window, door and solar module—all fully compatible and color matched across the entire range.
- Equipped. The main production equipment imported from Japan and Germany. Die excellent accuracy up to 0.02mm.
- Wide variety of styles and sizes suitable for all tastes and budgets.
- Extensive choice of colors and finishes to suit any style of building
- High weather resistance anti scratch anticorrosion and good wearer resistance subtle edges and elegant appearance and easy processing and installation high brightness hardness
- Long-life performance, with systems guaranteed for up to 20 years
- Nationwide coverage and full support network
- Quality-assured products, fully accredited by ISO9001 and “National Inspection-free product”.
If any of these items be interest to you, please let us know, we are glad to offer you details.
Jiangyin Haihong Aluminum Photovoltaic Technology specializes in processing all kinds of aluminum alloy frame used for solar modules, the existing 10 automated production line that can process up to 1 million sets per day. Excellent product qualities, reasonable price, prompt delivery. Welcome to discuss cooperation!
Our aim is: "Quality, Value and Service".
