Model:FN70A Portable Veterinary x Ray Equipment

Model:FN70A Portable Veterinary x Ray Equipment thumbnail-1
Model:FN70A Portable Veterinary x Ray Equipment photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Properties:
Other, Medical X-ray Equipments & Accessories
Brand Name:
Foinoe
Model Number:
FN70A
Contact Supplier Request Quote Chat Now
Nanjing Foinoe Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Nanjijng
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Properties Other, Medical X-ray Equipments & Accessories
Brand Name Foinoe
Model Number FN70A
Place of Origin Jiangsu, China

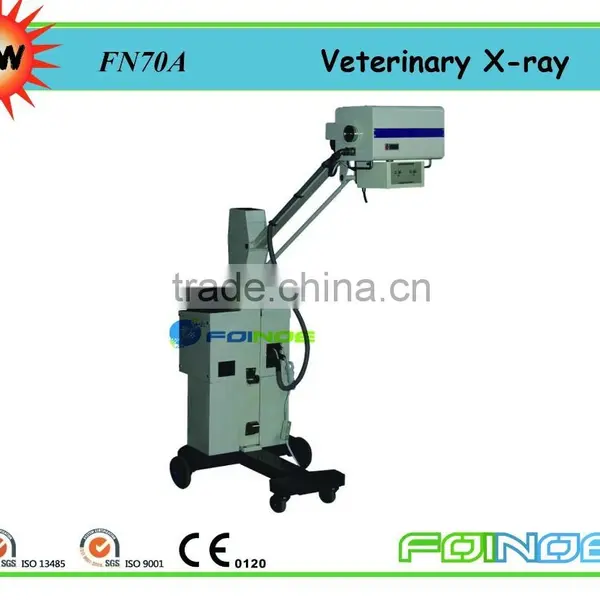

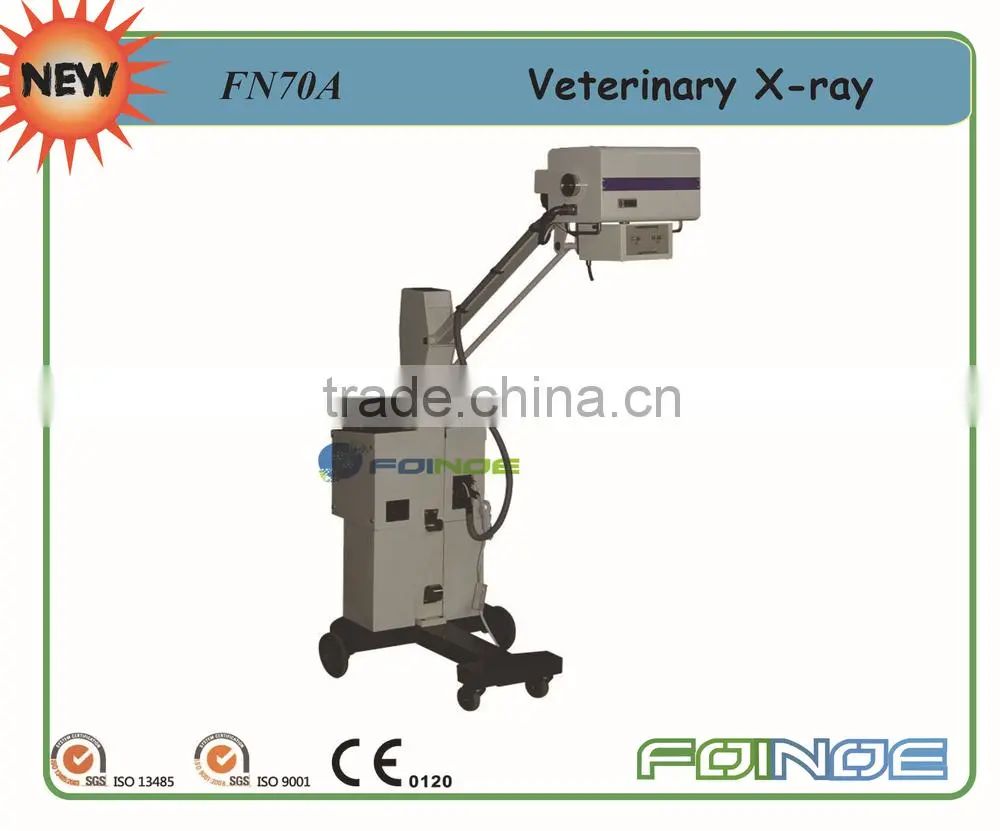

 Model:FN70A Portable veterinary x ray equipment

Model:FN70A Portable veterinary x ray equipment



Main Usage and Features:


This X-ray apparatus features fullwave rectification and modular X-ray tube head.

The frame of the unit is of cantilever construction,and is compact in design and easy

 in movement.

The machine can be used for Radiography in hospital wards or operating rooms.



Main Technical Data

Maximum ratings

Current(ma)

Voltagec (kVp)

Exposure time(second)

30

90

0.063-5.0

50

90

0.063-1.0

80

0.063-2.5

70

70

0.063-1.0



1.Power requirements

  Voltage:180-240V  Frequency:50Hz

  Internal resistance: ≤1Ω  Rating:5k VA

  Current:Maimum15A for radiography

2.Time:0.08 to 6.32 steps electronic

3.Maximum height from X-ray tube focus to floor>1820mm

4.Minimum height from X-ray tube focus to floor<550mm

5.Collimator:Maximum film size at 1000mm Focal distance: 430×430mm

6.Maximumermote control distance:6m

7.X-ray tube focus:2.6×2.6

8.Unit moving force:< 5kg

9.Net weight of the unit:90kg



Other models for choice:

Model:  FNX100BY

Model:FN70A Portable veterinary x ray equipment

Model:   FNX102

Model:FN70A Portable veterinary x ray equipment

Model:   FNX-300BS

Model:FN70A Portable veterinary x ray equipment

Model:    FNX100

Model:FN70A Portable veterinary x ray equipment

Model:FN70A Portable veterinary x ray equipmentModel:FN70A Portable veterinary x ray equipmentModel:FN70A Portable veterinary x ray equipment
