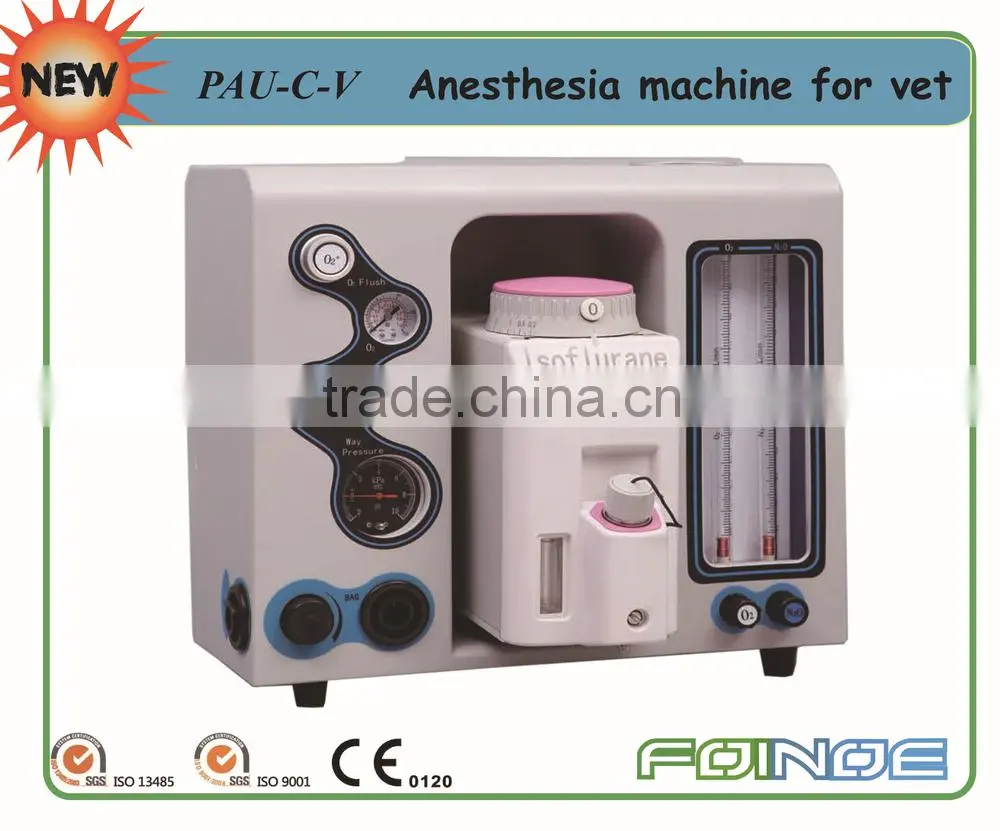

Model:PAU-C-V Portable Vet Anaesthesia Machine
Feature:
1, CE Certificated
2, Module rack with polyester medical material, high strength and light weight.
3, Superior thin spray technology, delicate color, beautiful and durable.
4, High precious vaporizer, Halothane,Enflurane, Isofurane and Sevoflurane could be choosed freely
5, Main unit are only 2Kg(w/o vaporizer), light weight and easy to move
6, With a dedicated handle, could move by hand-pull.
7, Two gas source:O2 ,N2O, suitable for more patient type.
Technical Specification:
Ventilation Method: |
Closed, Semi-closed, Semi-open |
Application |
2-100Kg animals |
Gas Source |
O2, N2O, 0.25mpa-0.65mpa |
Two-tube (O2,N2O) |
Scope, 0-10L/min. With linkage device, O2 concentration not low than 25% |
O2 flush |
More than 25L/min |
Respiratory mode |
Manual, Oxygen |
TV (Tidal volume) |
50-2000ml |
I:E |
According to the doctor operation |
BPM |
According to the doctor operation |
APL valve pressure |
0.5-6Kpa |
Monitoring |
Airway pressure, respiratory mode |
Three Gauges |
Two for O2 ,one for airway pressure |
Environment requirement:
Temperature |
Operation: 18-36 ºC Storage: -20-55 ºC |
humidifier |
Operation: 45%-75% Storage: ≤93% |
Atmospheric pressure |
Operation: 0.95-1.05 bar Storage: 500hpa-1060hpa |
Altitude |
Operation: 500 to 800 mmHg (3565 to -440m) Storage: 375 to 800 mmHg (5860 to -440m) |
Size |
380mm (W) *360mm (H) * 180mm (L) |
weight |
9kg |

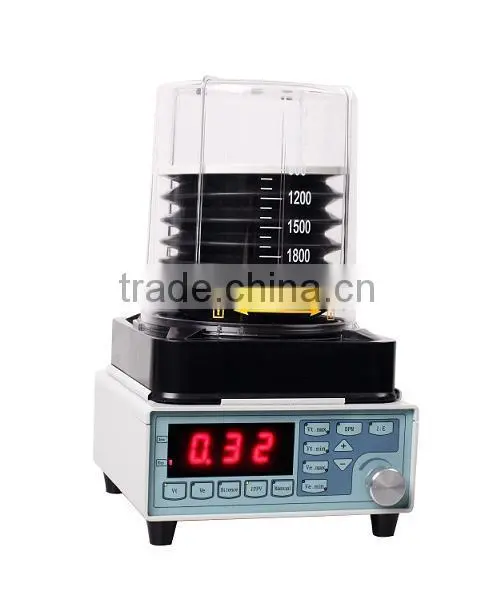

Vetilator (optional): VT-1, VT-1(A),VT-1B. for choice
Model: VT-1
Special Feature :
Driven mode: Pneumatically driven electronically controlled
Display: High light LED display
Ventilation mode: IPPV and Manual mode
Tidal volume: 50 ~ 1500ml
Breath frequency: 1~ 60Bpm
I:E ratio: 4:1 ~ 1:6
Monitor parameter: Tidal volume, breath frequency, MV,
Alarm: MV high alarm,MV low alarm, TV high alarm, TV low alarm
Model: VT-1A
Special Feature:
Respiration mode: IPPV, SIMV, SIGH, MANUAL
Display: 5.5’ SNT screen
Waveform: P-t, V-t
Tidal volume: 50 ~ 1600ml
Breath frequency: 1~ 65Bpm
I:E ratio: 8:1 ~ 1:8
Alarm parameters: High pressure alarm, Low pressure alarm
High pressure alarm limit: 20 ~ 60cmH2O
Low pressure alarm limit: 0 ~ 20cmH2O
Monitor parameter: Tidal volume, MV, Ppeak, PEEP, respiratory frequency, I:E ratio
Safety valve pressure limit: 6Kpa
Good air tightness, high reliability, and minor respiration impedance
Model: VT-1B
Technical Specification:
1,Drive:Pneumatic driven and electrical control
2, Operation: Button
3,Sensor Type: Rotor sensor
4,Respiratory mode:IPPV,MAN
5,Tidal Volume:50~1600mL
6, I:E: 1:2 BPM:3-40bpm
7,TV monitoring:20~300 mL,300 ~2000 mL
8,Airway pressure monitoring:-20-100cmH2O
9, Gas source gauge monitoring :0-1MPa
10, Monitor:Inspiratory indicator,Expiratory indicator,Power indicator
11, Gauge: O2 one
12,Small animal bellows,TV:0~300mL
13, Big animal bellows,TV:300~1600mL
