7500A HOT Selling Multifunctional Anesthesia Machine Veterinary

7500A HOT Selling Multifunctional Anesthesia Machine Veterinary thumbnail-1
7500A HOT Selling Multifunctional Anesthesia Machine Veterinary photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Anesthesia Equipments & Accessories
Brand Name:
Foinoe
Model Number:
7500A
Contact Supplier Request Quote Chat Now
Nanjing Foinoe Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Nanjing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Anesthesia Equipments & Accessories
Brand Name Foinoe
Model Number 7500A
Place of Origin Jiangsu, China

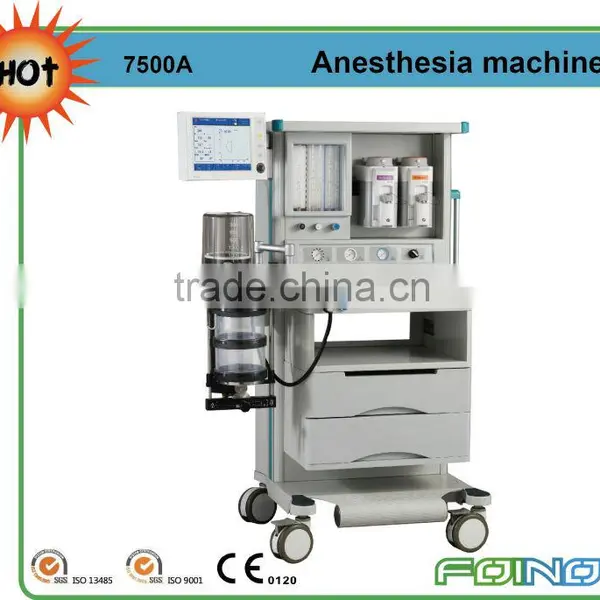

7500A   HOT selling Multifunctional anesthesia machine veterinary

  7500A HOT selling Multifunctional anesthesia machine veterinary







-Aeon7500A –

. The first Chinese anaesthesia workstation

. SIMV mode with flow-trigger

. Independent 10.4” screen, flexible monitoring angle

. CE marked, meet clinical safety requirement of EU

. Advanced electromagnetic valve ensures accurate tidal volume and compensation

. Parameters monitored: P-T, F-T, V-T waveforms & P-V, F-V loops

-Technical Specification-

Physical & Environmental Specification

. Dimensions (WxHxD): 930x1354x620mm

. Weight: 120kg

. Storage temperature: -10~+55°C

. Working temperature: +10~+40°C

. Storage humidity:≤93%

Electrical Specification

. Mains: 100-240VA C, 50-60Hz

. Battery: 24VDC, minimum90min

. Power consumption:≤70W

Pneumatic Specification

. O2: 0-1L/min; 1-10l/min

. N2O:0-1L/min; 1-10L/min

.Gas system: O2deficiency alarm

            Hypoxic guard system

            O2flush: 35-75L/min

. Working mode: Closed, Semi-closed, Semi-open

. Driven mode: Pneumatically driven and electronically controlled

. Operating mode: Man. / Vent.

. Safety valve:≤8kpa

Ventilator Specification

. Patient type: Adult, pediatric

. Ventilation modes: IPPV, PCV, SIMV(flow-trigger) , Manual

. Setting: Touch key & navigator wheel knob

. Tidal volume: 0-1500ml

. Ventilation frequency: 4-100bmp

. I:E ratio: 2:1-1:8

. Pressure control: 5-70cmH2O

. Ppeep: 0-20cmH2O

. Inspiratory plateau: 0-60%Ti

. Trigger sensitivity: 2-30L/min

. High pressure: 21-80cmH2O

. Low pressure: 0-20cmH2O

. Monitoring Display: 10.4”TFT color screen

            Pressure: Paw, Ppeak, Pplat, Pmean

                 Volume: MV, Vt

            Breath rate

            Gas: FiO2

            Compliance

            Graph display: P-T, F-T, V-T waveforms & P-V, F-V loops

. Alarm: Pressure: Paw, high/low limit

       Volumes: MV high/low limit

       High limit of breath rate

       Gas: FiO2 high/low limit

       Low O2 supply pressure

       Airway malfunction

       Power failure



Vaporizer

. Support 2 vaporizer (Selectatec compatible)













We have other models for your choice!!
