Model:3306G 6ch Color Touch Display Veterinary Ecg

Name: Model:3306G 6ch Color Touch Display Veterinary Ecg
Brand: Foinoe
SKU: 100428591
Availability: InStock

Negotiable MOQ: 2 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Pathological Analysis Equipments

Brand Name:

Foinoe

Place of Origin:

Jiangsu, China

Nanjing Foinoe Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Nanjing

Delivery Detail:

Delivery time depends on order quantity.

Type Pathological Analysis Equipments

Brand Name Foinoe

Place of Origin Jiangsu, China

Model Number 3306G

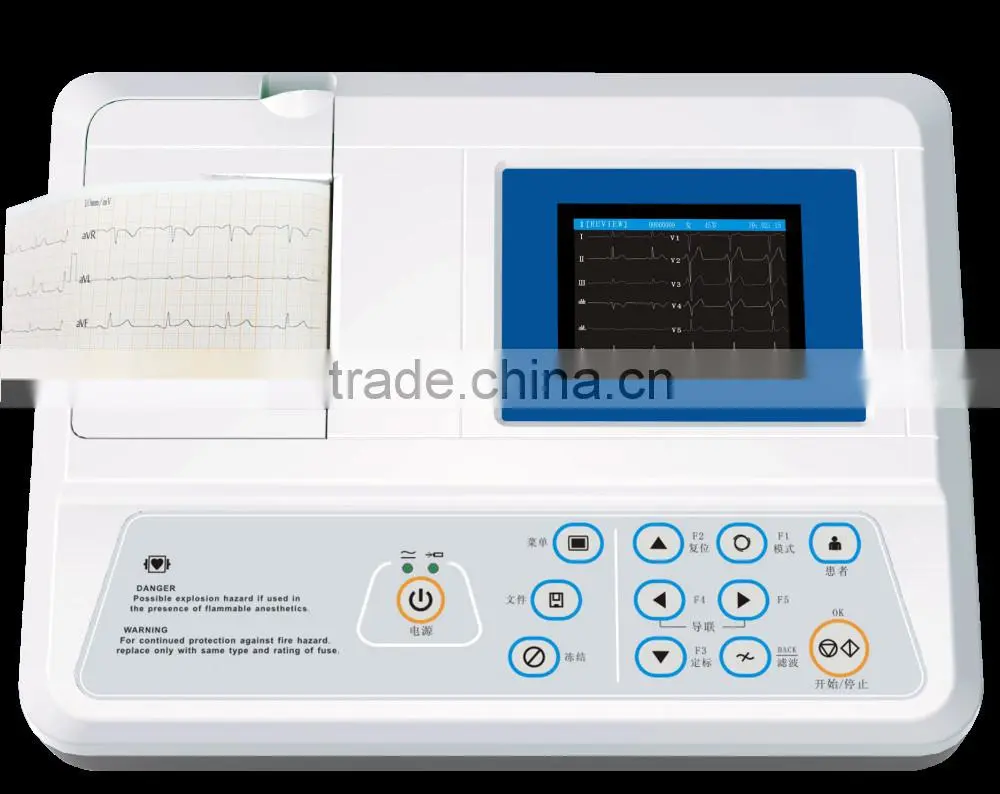

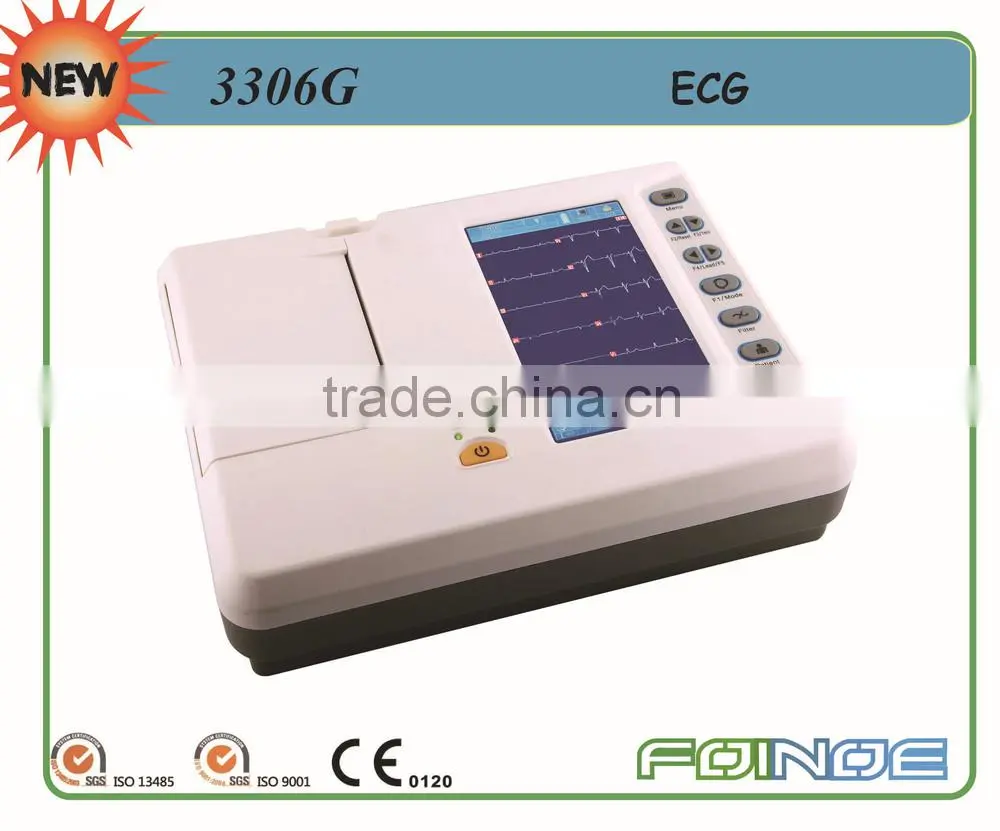

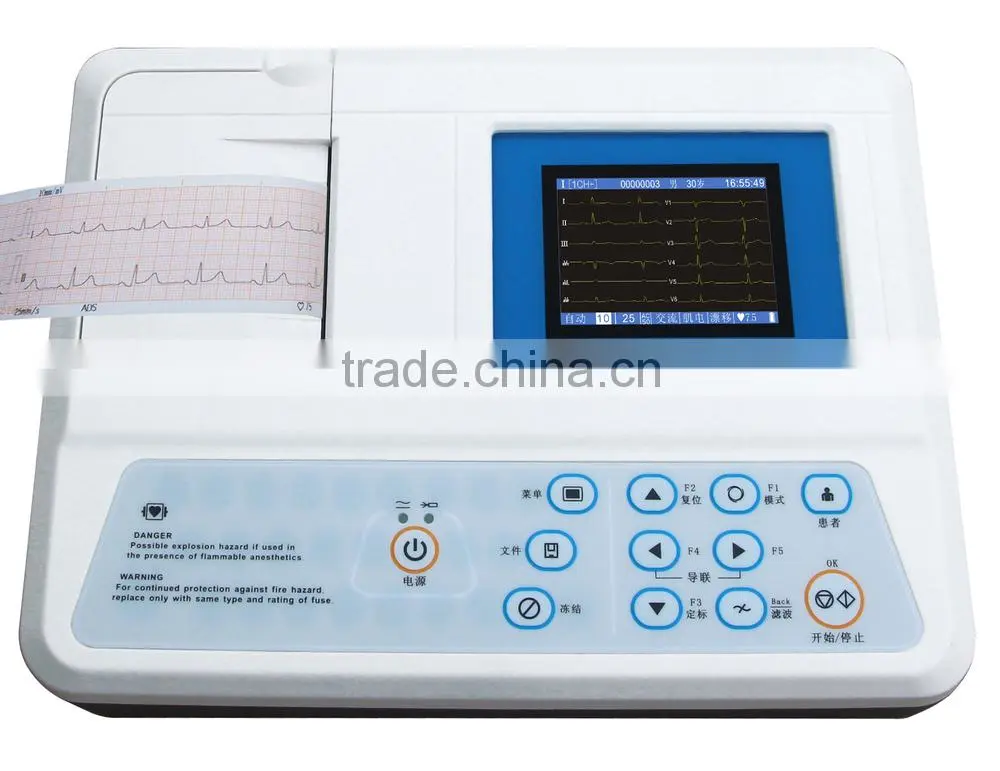

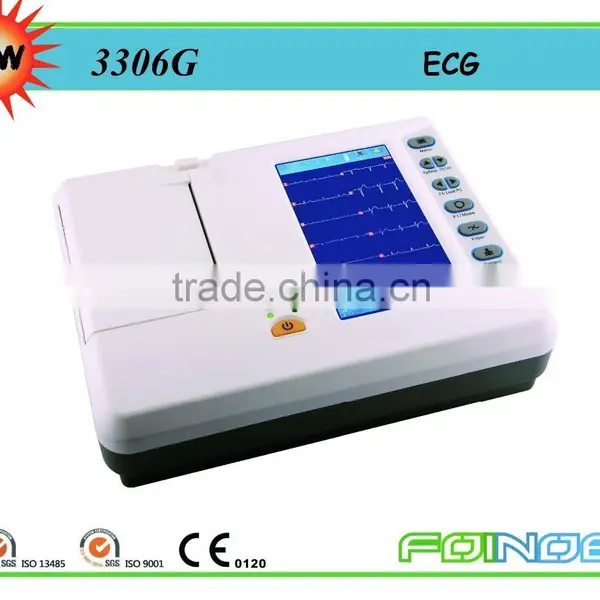

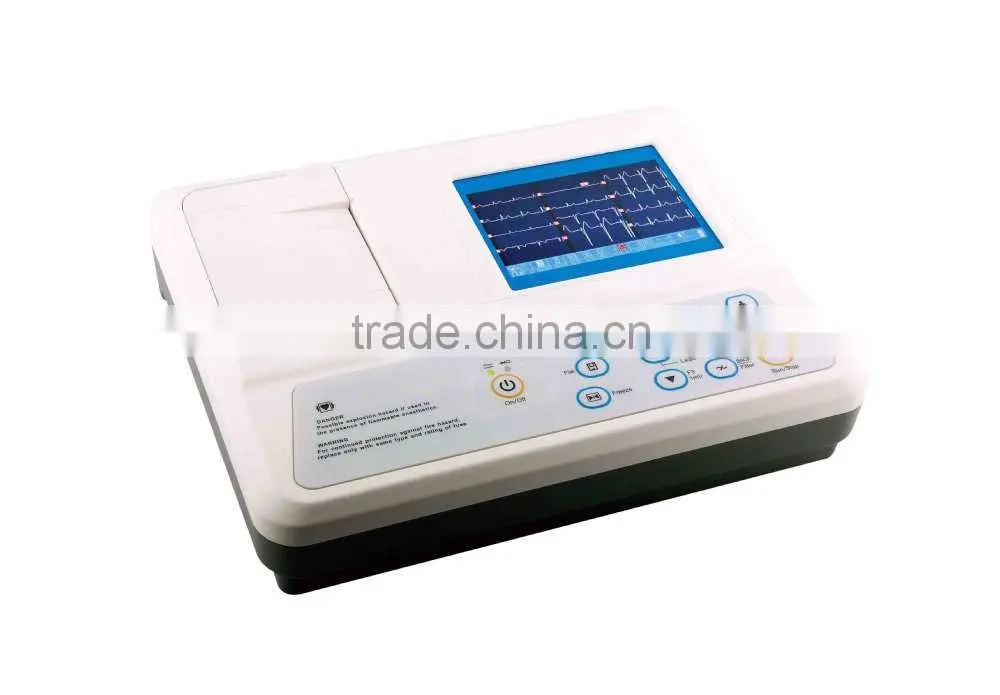

Model:3306G 6ch color touch display veterinary ecg

Features

1.Accurate pulse pace identification and automatic analysis function

2. Working modes: Manual / Auto / Analysis/Storage

3. 112mm, 6 channel format recording

4.800×480 graphic7 inch color touch LCD screen

5. 12 leads synchronously acquisition and display

6. Advanced [Freeze] function

7.250 patient cases save and replay (extendable)

8. Adapt to 110-230V, 50/60Hz power supply

9. Built-in rechargeable Li-ion battery

10. High resolution thermal printing

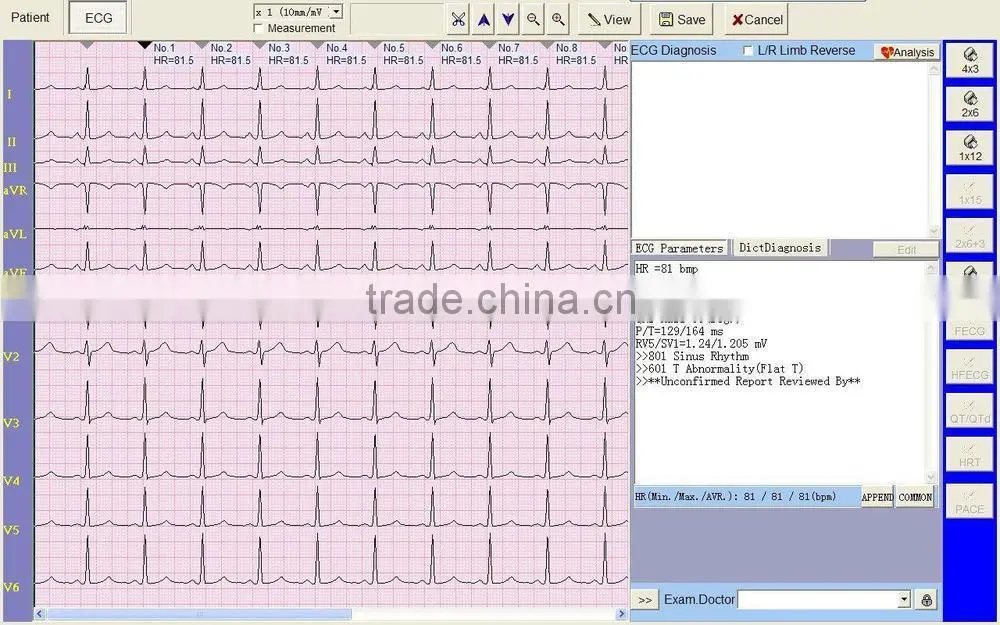

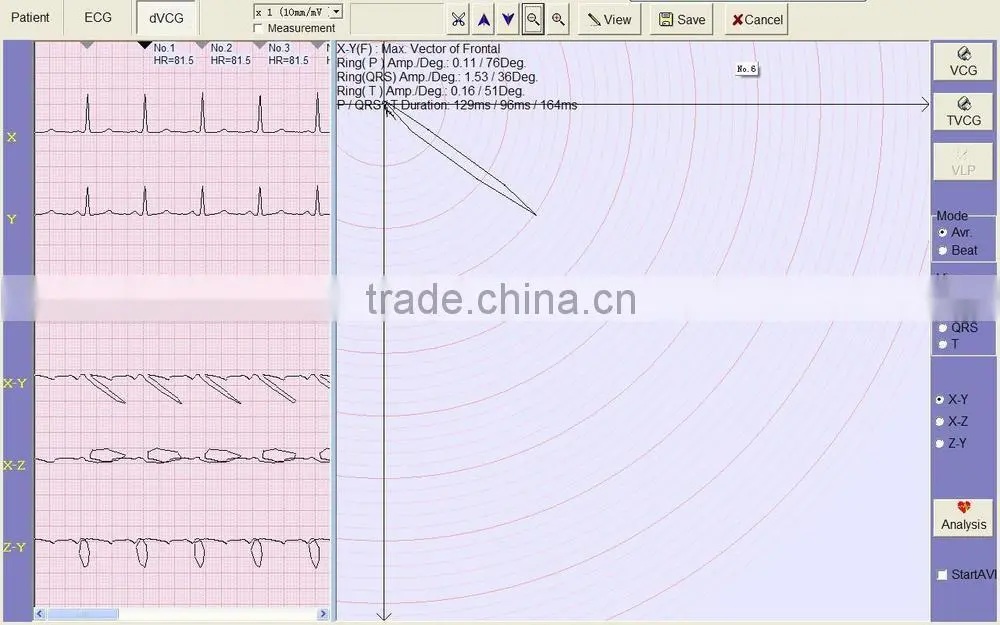

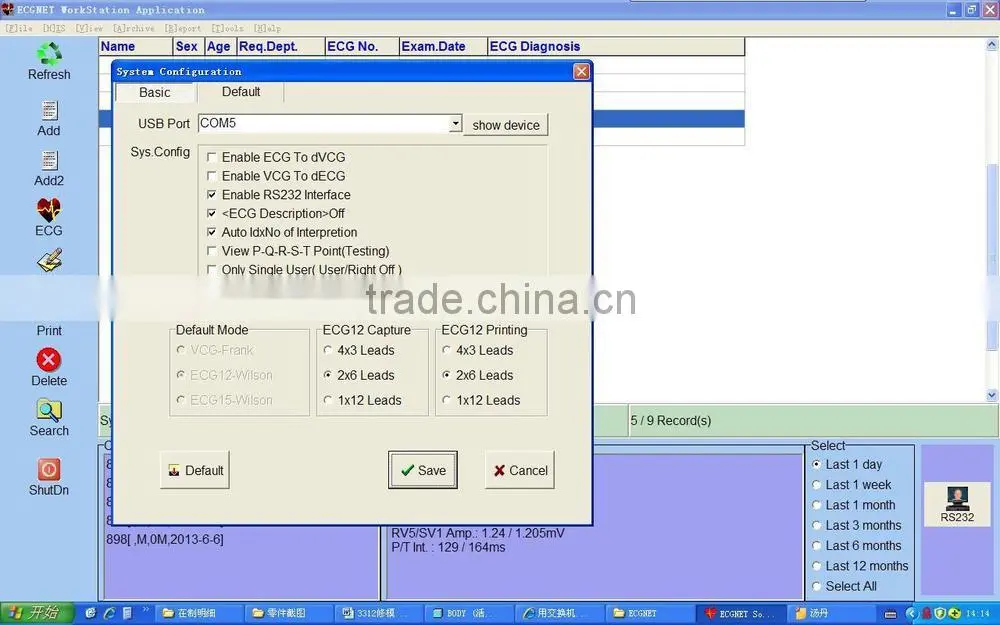

11. USB/RS232 interface, ECG software is optional

12. Can be connected to Network, USB Disk, Printer and Code Scanner (Optional)

Technical Specification

Lead	Standard 12 leads	Time constant	≥3.2s
lead acquisition	12bit/1000Hz(synchronously 12 leads)	Frequency response	0.05~160Hz(-3db)
Work mode	22 Series:Man / Auto/Analysis 33 Series: Man / Auto/ Analysis/Storage	Noise level	<15μVp-p
Filter	AC Filter : 50Hz / 60Hz EMG Filter : 25Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive)	Inter-channel Interference	≤0.5mm
CMMR	≥100dB (with AC FILTER)	Sensitivity	5,10,20, 40, Auto (mm/mV)
Input circuit	Floating; Protection circuit against Defibrillator effect	Recording mode	3ch, 3ch+, 3ch+++, 6ch Default Man. Mode is 3ch format Default Auto. Mode is 6ch+ format
Input Impedance	≥50MΩ	Paper speed	6.25,12.5,25,50mm/s(±3%)
Input circuit current	≤0.05μA	Paper	112mm *20m Roll paper
Patient current leakage	<10μA	Communication	RS232/ USB port
Calibrating voltage	1mV±2%	Power Supply	AC 110-230V(±10%),50/60Hz(±1Hz),60VA DC Built-in rechargeable battery, 14.4V(2000mmAh)
Voltage tolerance	≥±500mV	Dimension/Weight	300mm×230mm×72mm/2.8Kg
