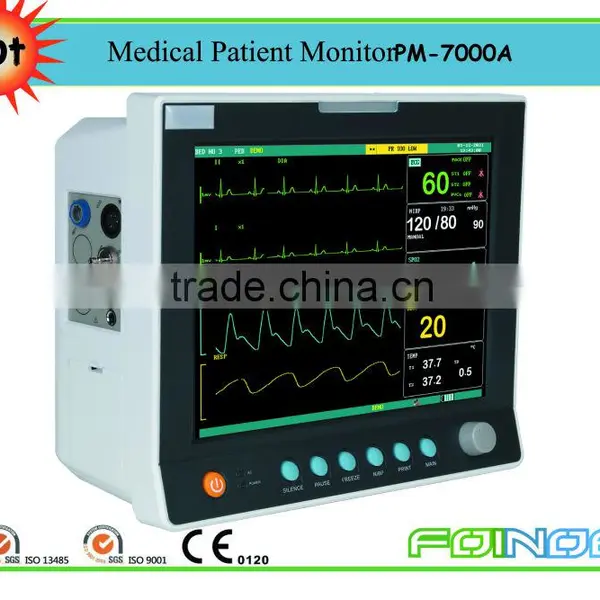

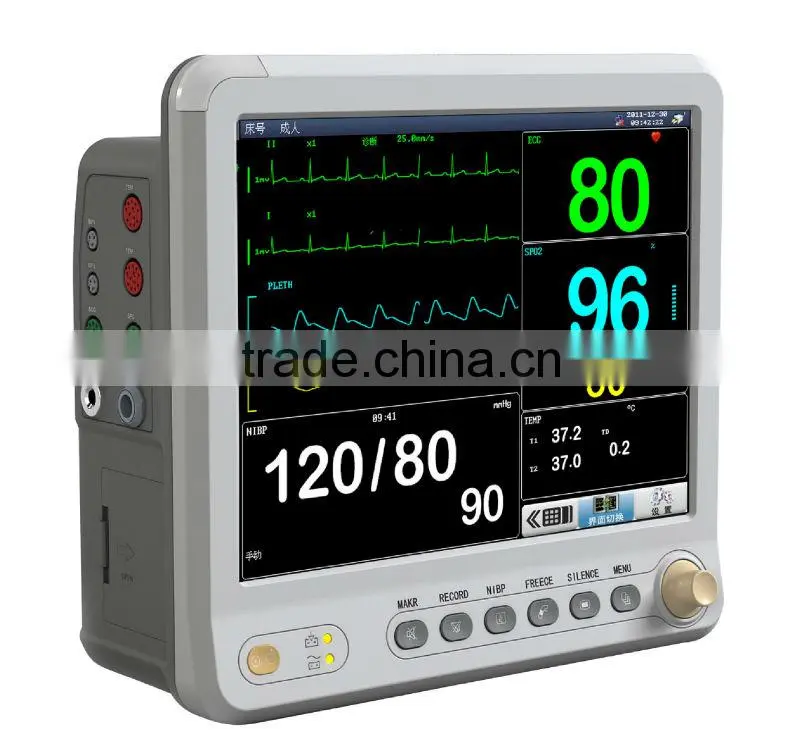

High Quality And Cheap Patient Monitor Accessories(PM-7000A)

High Quality And Cheap Patient Monitor Accessories(PM-7000A) thumbnail-1
High Quality And Cheap Patient Monitor Accessories(PM-7000A) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Breathing Apparatus
Brand Name:
FoiNoe
Model Number:
PM-7000A
Contact Supplier Request Quote Chat Now
Nanjing Foinoe Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Nanjing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Breathing Apparatus
Brand Name FoiNoe
Model Number PM-7000A
Place of Origin Jiangsu, China

 High Quality And Cheap Patient Monitor Accessories(PM-7000A)  High Quality And Cheap Patient Monitor Accessories(PM-7000A)



[Feature]



     12.1high resolution TFT LCD display



     One level menu, easy to use



     Maximum 720 hours tabular and graphic trends of all parameters



     Bulit-in thermal recorder and battery



     Suitable for adult, pediatric, neonatal patient



     13 Type Arrhythmic analysis, ST segment Analysis, pacemaker detection



    Anti-ESU, anti-defibrillator



    OxyCRG Dynamic View and short Trend Coexist Display, nurse_calling system



     Standard network interface, can connect to the central monitor system



[Standard]



12.1 inch LCD, 5 ECG leads, RESP, NISP, PR, SPO, 2-TEMP, Rechargable Battery



[Optional]



Thermal Recorder, 2-IBP, ETCO2







[Specification]



ECG



Lead Mode: 3/5 Leads



Gain:x0.25, x0.5, x1, x2, auto



Heat Rate: 15~300bpm(adult), 15~350bpm(neonatal)



Accuracy: ±1%



Resolution: 1 bpm



ST Segment Range: -2.0~ +2.0 mV



ARR Detecing: Yes



Pacemaker: Yes



Electrode offset potential: ±300mV



Leakage Current: < 10 uA



Bandwidth



Surgery: 1-15 Hz



Monitor: 0.5-35 Hz



Diagnostic: 0.05 ~ 100Hz











RESPIRATION



Method: Impedance between R-F(RA-LL)



Base line Impedance Range: 0-2.5 K



Bandwith: 0.3 ~ 2.5 Hz



Measuring Range



Adult: 0 ~ 120rpm



Neo/Ped: 0-150 rpm



Resolution: 1 rpm



Accuracy: ±2 rpm



Apnea Alarm: 10-40 S







SPO



Measuring And Alarm Range: 0 ~ 100%



Resolution: 1%



Accuracy: 70% ~ 100%±2 %



         0% ~ 69% unspecified



Actualization interval: about 1 Sec.



Alarm Delay: 10sec.











NIBP



Word Mode: Manual, Auto, Continuous



Measuring Period in STAT Mode: 5Min



Pulse Rate Range: 40 ~ 240 bpm



Measurement Types: SYS, DIA, MEAN



Measuring range



Adult Mode



SYS: 40 ~ 270 mmHg



DIA: 10 ~ 215 mmHg



MEAN: 20 ~ 235 mmHg



Pediatric Mode



SYS: 40 ~ 200 mmHg



DIA: 10 ~ 150 mmHg



MEAN: 20 ~ 165 mmHg



Neonatel Mode



SYS: 40 ~ 135 mmHg



DIA: 10 ~ 100 mmHg



MEAN: 20 ~ 110 mmHg



Resolution Pressure: 1 mmHg



Accuracy Pressure Maximum Mean error:±5mmHg



Maximum Standard deviation: ±8mmHg



Overpressure Protection



Adult Mode: 297±3 mmHg



Pediatric Mode: 140±3 mmHg



Neonatal Mode: 147±3 mmHg











PULSE RATE



Measuring and Alarm Range: 20~300bpm



Resolution: 1bpm



Accurcay:± 2bpm











IBP



Lable: ART, PA, CVP, RAP, LAP, ICP, P1, P2



Measuring and alarm range



ART: 0 ~ 300 mmHg



PA: -6 ~ 120 mmHg



CVP/RAP/LAP/ICP: -10 ~ 40 mmHg



P1/P2: -10 300mmHg



Press Sensor



Sensitivity: 5uV/V/ mmHg



Resolution: 1 mmHg



Accuracy: ±2% or ±1% mmHg, which great



Actualization interval: about 1 secretary











TEMPERATURE



Channel: 2



Measuring and Alarm Range: 0~ 50°C



Resolution: 0.1°C



Accuracy:±0.1 °C



Actualization interval: about 1 Sec



Average Time Constant: < 10 Sec.





 High Quality And Cheap Patient Monitor Accessories(PM-7000A)High Quality And Cheap Patient Monitor Accessories(PM-7000A)High Quality And Cheap Patient Monitor Accessories(PM-7000A)
