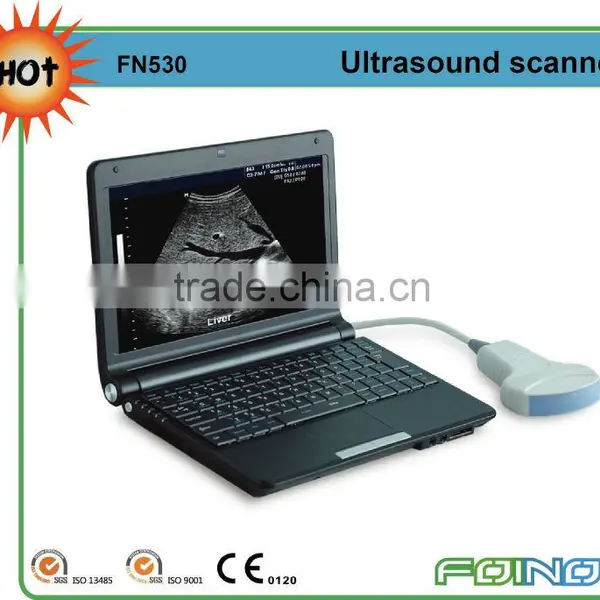

FN530 HOT selling full digital laptop ultrasound equipment
Advantages
l Light weight of 1 kg, 2cm for thickness, 17cm for width, 25cm for length, very convenience for doctors to carry out.
l U Disk for upgrade.
l Dismountable battery.
l Connect with Jet printer, Laser printer to print directly.
l Other performance is as the same as the laptop computer, such as power save mode, touch mouse and so on.
Features
l Battery
l 192-frame cineloop
l Two USB ports
l SD card
l General software, Obstetrics software and Cardiac software.
Software
l General measurement: distance, circumference, volume, angle, heart rate and etc.
l Obstetrics measurement software: BPD, GS, CRL, AD, AC, FL, HC, FTA, APTD, TTD and calculating fetus’ weight, pregnancy week, fetal physiological rating according to the previous measurements.
l Cardiac measurement software. The measurement result could be shown automatically.
Specifications
Scanning mode |
electronic linear array, electronic convex array |
Imaging model |
B, B/B, B/M, M, 4B |
Gray scale |
256 levels, four selectable gamma curve |
Transducer frequency |
2.5-8.5 MHz |
Magnification |
×0.8, ×0.9, ×1.0,×1.1,×1.2,×1.3, ×1.4,×1.5 |
Permanent storage |
1024 |
Cine loop |
192, manual and automatic |
Sound Power |
8 grades from 0-7 |
Dynamic Range |
Adjustable from 30-75 |
USB Ports |
2 |
IP set |
8 |
Body Mark |
35 kinds |
Pseudo color |
5 kinds |
Image Processing |
Up/Down, Left/Right, Black/White, Frame correlation Edge enhancement, Scroll |
Measurement |
Circumference, Area, Volume, Heart ratio, Velocity, OB and Cardiac |
Focus |
Number and location of the focus can be adjusted |
Puncture |
Puncture guide line |
TGC |
Adjustable, Near field, Middle field and Far field are adjustable from 39-99 |
Body Marks |
35 |
IP set |
Hospital’s name, Date, Time, Formula of Fetus’ weight and Pseudo color |
Image store format |
BMP, DICOM |
Formula of Fetus’ weight |
OSAKA, TOKYO1, TOKYO2, MERZ |
Image |
Frame correlation, Edge enhancement, Dynamic range, center line, scan angle Puncture |
Voltage |
AC85V-265V |
We have other models for you to choose !!!
