Home > Health & Medicine > Medical Equipment > Ultrasonic, Optical, Electronic Equipment > FN550 CE Approved Full Digital B Mode Portable Portable Ultrasound Scanner

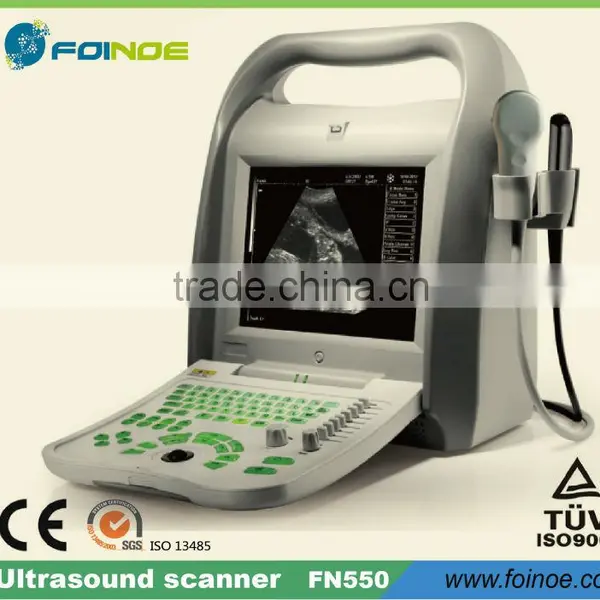

FN550 CE Approved Full Digital B Mode Portable Portable Ultrasound Scanner

Name: FN550 CE Approved Full Digital B Mode Portable Portable Ultrasound Scanner
Brand: Foinoe
SKU: 100425995
Availability: InStock

FN550 CE Approved Full Digital B Mode Portable Portable Ultrasound Scanner thumbnail-1

FN550 CE Approved Full Digital B Mode Portable Portable Ultrasound Scanner photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Doppler Ultrasound Equipment

Brand Name:

Foinoe

Model Number:

FN550

Contact Supplier Request Quote Chat Now

Nanjing Foinoe Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Nanjing /Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Doppler Ultrasound Equipment

Brand Name Foinoe

Model Number FN550

Place of Origin Jiangsu, China

FN550 Full Digital B Mode portable ultrasound scanner

1	Name: FN550 FULL DIGITAL B MODE ULTRASONIC DIAGNOSTIC INSTUMENT
2	Intended Application: Abdomen, Gynecologic and Obstetric, small parts, urological, cardio, etc.
3	Main specification
3.1	Monitor: 10.4" high resolution TFT LCD

3.2	Probe
3.2.1	Probe Mode: Electronic convex array; Electronic linear array
3.2.2	Probe element:80 elements
3.2.3	Standard probe:3.5MHz convex multi-frequency probe (Frequency conversion scope:2.0 / 2.5 / 3.5 / 5.0 MHz) Optional probe:3.5MHz micro-convex frequency conversion probe. (Frequency conversion scope:2.0 / 2.5 / 3.5 / 5.0 MHz) Optional probe:6.5MHz intra-vaginal frequency conversion probe. (frequency conversion scope:4.0 / 5.0 / 6.5 / 7.5 MHz) Optional probe:7.5MHz frequency conversion probe. (frequency conversion scope:5.0 / 6.5 / 7.5 / 9.0 MHz) Optional probe:5.0MHz micro-convex frequency conversion probe. (frequency conversion scope:3.5 / 4.5 / 5.0 / 5.5 MHz)
3.2.4	Scanning angle:convex probe 60°,intra-vaginal probe 130°
3.2.5	Body mark: 64 kinds body mark with probe direction
3.2.6	Probe socket: 2 sockets, automatically identify the probe

3.3	Host machine
3.3.1	FULL DIGITAL B MODE ULTRASONIC DIAGNOSTIC INSTUMENT
3.3.2	Net weight:8.5Kg
3.3.3	Channels:≥32 channels digital beaming composite
3.3.4	Resolution:horizontal≤2mm,vertical≤1mm
3.3.5	Dead zone≤5mm(test report actually≤3mm)
3.3.6	Max scanning depth:≥17cm
3.3.7	Geometry position precision:Transversal≤5%,Longitudinal≤5%(test report actually≤4%,Longitudinal≤4%)
3.3.8	Scanning mode:B,2B,4B ,B/M,M
3.3.9	28 grades depth adjustment under full visual field
3.3.10	Gain:0~127dB
3.3.11	Dynamic scope:27~100dB,visible & adjustable
3.3.12	Four different angles / switchable width
3.3.13	Gray: 256
3.3.14	Imaging technique:full digital beam-composite, continuous dynamic focusing, dynamic aperture
3.3.15	Image storage: main unit Disk C 32 MB, 100 frames permanent storage
3.3.16	Internal hard disk: 250GB, imagespatient reportcine loop can be saved easily.
3.3.17	Cine loop:256 frames
3.3.18	8 stages TGC control
3.3.19	Image processing:pre-process (continuous dynamic focus, dynamic aperture, dynamic filter), post-process(4 grades gamma correction),frame correlation, black/white reversal, left/right reversal, up/down reversal, edge enhancement, etc.
3.3.20	16 stages Sound power control
3.3.21	Depth hoist / local zooming
3.3.22	Disk management function
3.3.23	Frame frequency:30 frames/s
3.3.24	Measurement and analysis: Normal measurement: distance, circumference, area(trochoid or ellipse), volume, angle, Stenosis(length, area), etc. Obstetric measurement and analysis: BPD, CRL, GS, FL, HL, TAD,TBD, APBD, HC, AC, GA,EFW, FT, LV THD, TCD, OFD, AFI, LMP, fetus growth curve( single frame, Four frames), OB report. Cardio measurement and analysis: M routine measurement software package (depth, slope, heart rate, cycle), cardio measurement software package (left ventricle function, mitral valve, aorta, ejection period, cardiac muscle weight, cardio report, etc. Gyn. measurement and analysis: uterus volume, endometrium thickness, ovary volume, superior ovarian follicle, uterine neck long dia, GYN report, etc. Urological measurement and analysis: residual urine, volume of prostate, Urological report
3.3.25	Report: OB report, fetus growth curve,cardio report, Gyn report, Urological report
3.3.26	Note:name, age, gender, hospital name, time, date, probe type, frequency, focus, frame correlation, gain, dynamic scope, etc.
3.3.27	Language: English/Chinese
3.3.28	Backlight silica gel keyboard and Optical Trackball
3.3.37	Energy-saving Function
3.3.38	LCD adjustment for: Brightness, contrast, backlight; guide for Electric quality of battery
