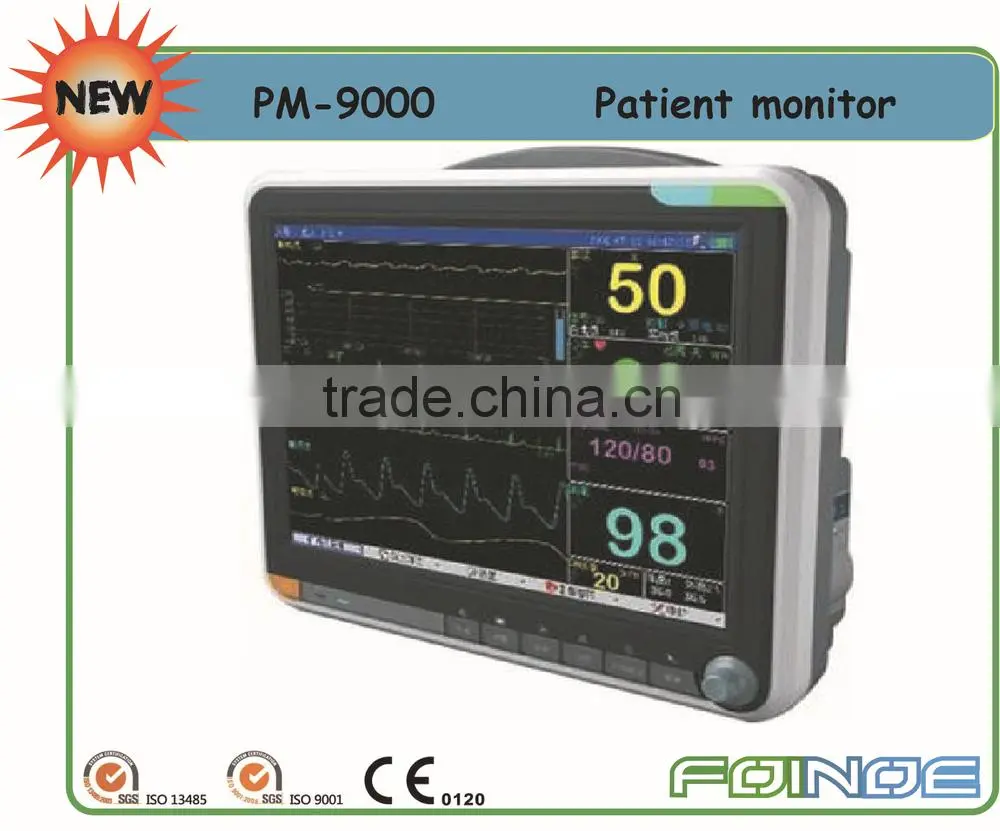

PM-9000 High Quality Multi-parameter Patient Monitor PriceNegotiableMOQ: 1 Set
-
FN520 CE Approved HOT Selling Portable Palmsize Ultrasound ScannerNegotiableMOQ: 1 Piece
-
600III CE Approved Automatic Medical Infusion PumpNegotiableMOQ: 10 Pieces
-
Three Channel ECG (mac 500 Ecg) --CE Approved--NegotiableMOQ: 1 Unit

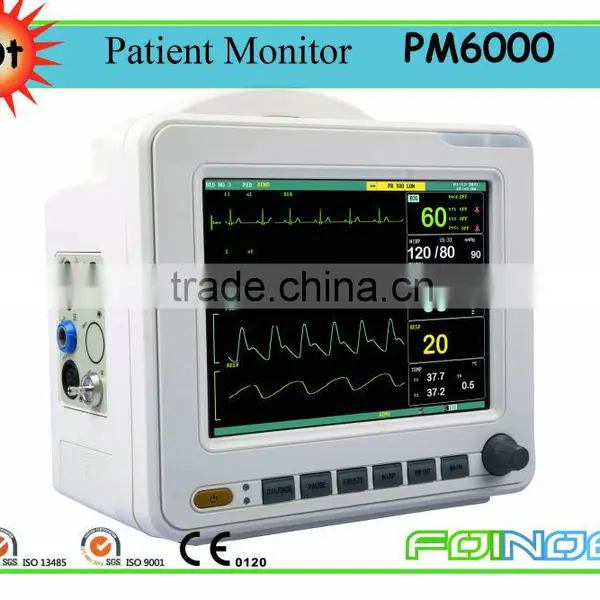

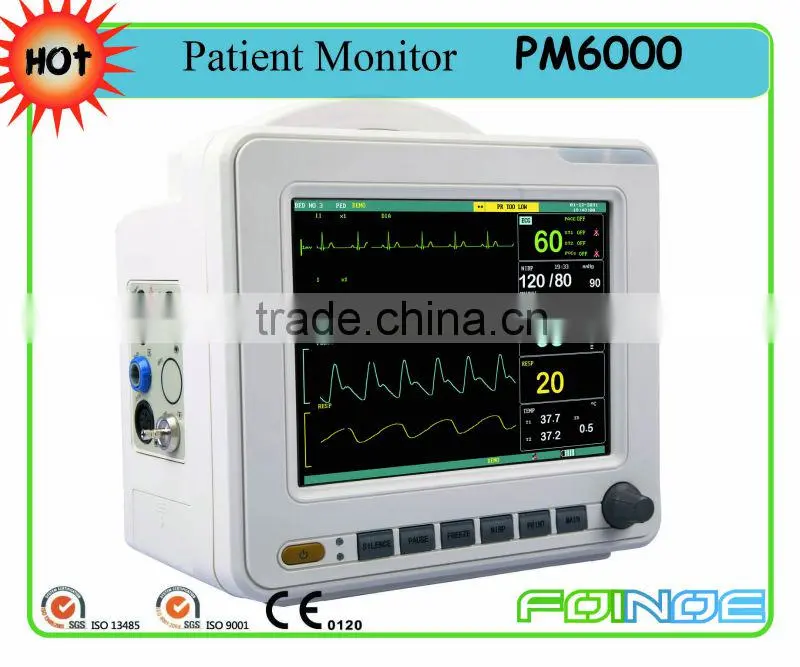

PM-6000 High quality and hot sale patient monitoring system
[Feature]
l 8.4high resolution TFT LCD display
l One level menu, easy to use
l Maximum 720 hours tabular and graphic trends of all parameters
l Bulit-in thermal recorder and battery
l Suitable for adult, pediatric, neonatal patient
l 13 Type Arrhythmic analysis, ST segment Analysis, pacemaker detection
l Anti-ESU, anti-defibrillator
l OxyCRG Dynamic View and short Trend Coexist Display, nurse_calling system
l Standard network interface, can connect to the central monitor system
[Standard]
12.1 inch LCD, 5 ECG leads, RESP, NISP, PR, SPO, 2-TEMP, Rechargable Battery
[Optional]
Thermal Recorder, 2-IBP, ETCO2
[Specification]
ECG
Lead Mode: 3/5 Leads
Gain:x0.25, x0.5, x1, x2, auto
Heat Rate: 15~300bpm(adult), 15~350bpm(neonatal)
Accuracy: ±1%
Resolution: 1 bpm
ST Segment Range: -2.0~ +2.0 mV
ARR Detecing: Yes
Pacemaker: Yes
Electrode offset potential: ±300mV
Leakage Current: < 10 uA
Bandwidth
Surgery: 1-15 Hz
Monitor: 0.5-35 Hz
Diagnostic: 0.05 ~ 100Hz
RESPIRATION
Method: Impedance between R-F(RA-LL)
Base line Impedance Range: 0-2.5 K
Bandwith: 0.3 ~ 2.5 Hz
Measuring Range
Adult: 0 ~ 120rpm
Neo/Ped: 0-150 rpm
Resolution: 1 rpm
Accuracy: ±2 rpm
Apnea Alarm: 10-40 S
SPO
Measuring And Alarm Range: 0 ~ 100%
Resolution: 1%
Accuracy: 70% ~ 100%±2 %
0% ~ 69% unspecified
Actualization interval: about 1 Sec.
Alarm Delay: 10sec.
NIBP
Word Mode: Manual, Auto, Continuous
Measuring Period in STAT Mode: 5Min
Pulse Rate Range: 40 ~ 240 bpm
Measurement Types: SYS, DIA, MEAN
Measuring range
Adult Mode
SYS: 40 ~ 270 mmHg
DIA: 10 ~ 215 mmHg
MEAN: 20 ~ 235 mmHg
Pediatric Mode
SYS: 40 ~ 200 mmHg
DIA: 10 ~ 150 mmHg
MEAN: 20 ~ 165 mmHg
Neonatel Mode
SYS: 40 ~ 135 mmHg
DIA: 10 ~ 100 mmHg
MEAN: 20 ~ 110 mmHg
Resolution Pressure: 1 mmHg
Accuracy Pressure Maximum Mean error:±5mmHg
Maximum Standard deviation: ±8mmHg
Overpressure Protection
Adult Mode: 297±3 mmHg
Pediatric Mode: 140±3 mmHg
Neonatal Mode: 147±3 mmHg
PULSE RATE
Measuring and Alarm Range: 20~300bpm
Resolution: 1bpm
Accurcay:± 2bpm
IBP
Lable: ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and alarm range
ART: 0 ~ 300 mmHg
PA: -6 ~ 120 mmHg
CVP/RAP/LAP/ICP: -10 ~ 40 mmHg
P1/P2: -10 300mmHg
Press Sensor
Sensitivity: 5uV/V/ mmHg
Resolution: 1 mmHg
Accuracy: ±2% or ±1% mmHg, which great
Actualization interval: about 1 secretary
TEMPERATURE
Channel: 2
Measuring and Alarm Range: 0~ 50°C
Resolution: 0.1°C
Accuracy:±0.1 °C
Actualization interval: about 1 Sec
Average Time Constant: < 10 Sec.
