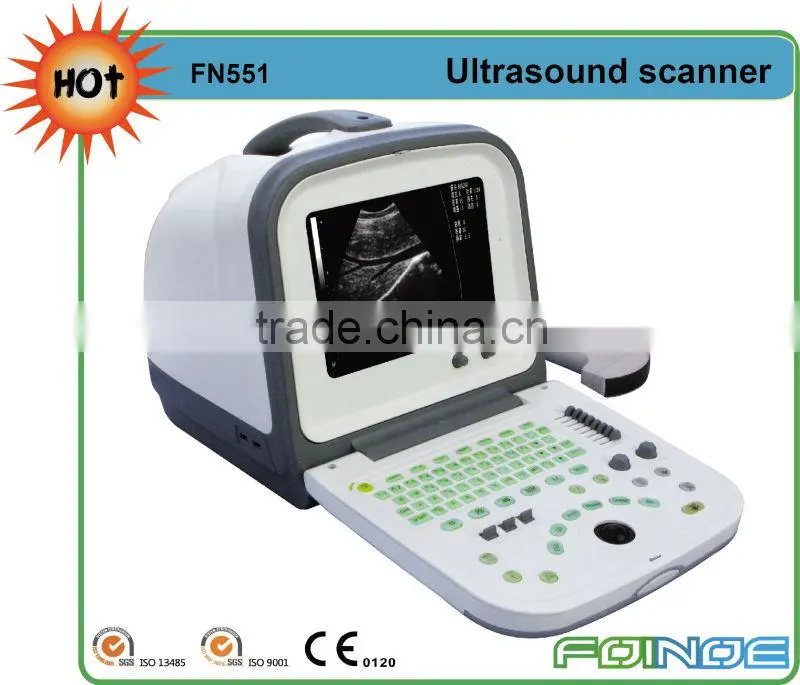

FN551 HOT selling full digital ultrasound scanner price
FN551 digital portable ultrasonic diagnostic system adopts the newest full digital beam-forming technology with high precision;various full digital image processing technology such as RDA imaging,real-time dynamic frequency scanning,part zoom,super capacity for cine loop and USB ports;high-tech probe featured broad-band multi-frequency,high line density scanning,double probe ports;powerful meas.&ftware system,which widely applied to abdomen,gynecology,
OB/GYN,heart and small parts;the integrative design of folded cover with back-light keyboard and easy handle.The doctors can enjoy more when operating the ideal digital machine with wonderful experience.
Display Mode |
B, B/B, 4B, B/M, M, A |
Scanning Method |
Electronic convex, electronic linear |
Application |
Abdomen, OB&GYN, small parts, urology,cardiology, eye |
Scanning techniques |
Digital beam former, dynamic aperture, DRF, DFS,RDA,DRA |
Probe |
Mulit-frequency probe with 4 steps |
Image processing |
Image persist, IP selection, dynamic range, edge enhancement/smooth, RDF, 8-segment TGC, gray trasformation, M mode speed, line desity selection, scanning angle/width, line frame frequency, grey scale adjustable,Gamma correction, gray trasformation, scanning angle/width |
Cine loop |
256 frame |
Grey Scale |
256 |
Image storage |
Built-in memory(64 frames), storage via USB port |
Zoom |
Intelligent zoom, local zoom |
Software packages |
General software packages for abdomen, OB/GYN, small parts, cardiology etc. Special cardiology software package: LV, Mitral valve, Aortic valve, CO, SV, EF etc. Special fetal software package: LMP, fetal growth curve |
General measurement |
B mode: distance, circumference, area, volume, ratio, angle, %stenosis etc;M mode: heart rate, velocity etc; |
EDD tables |
BPD, GS, CRL, FL, HC,AC, LMP, OB table(Tokyo, Hadlock, Hansmann), LMP functions. |
Probe frequency |
2.5MHz~10.0MHz(depend on the probe type) |
Standard configuration |
Main unit, 3.5MHz Convex probe, 2 probe connectors, 10" monitor |
Optional configuration |
7.5MHz linear probe, 6.5MHz transvaginal probe, 3.5MHz heart probe, trolley, biopsy kit, video printer |
Power supply |
220v(±10%) AC 50Hz(standard) 110v((±10%) AC 60Hz(upon the request) |

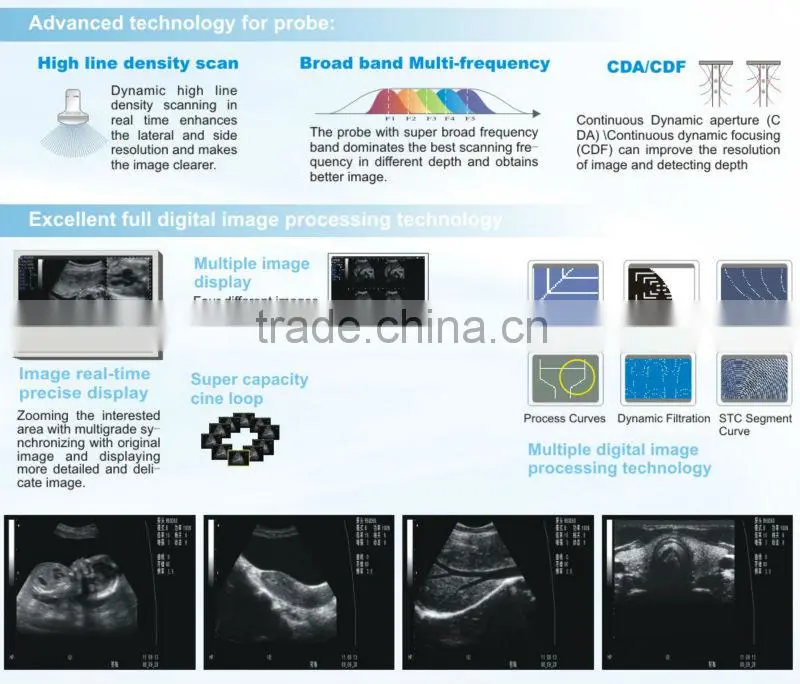

Advanced technology for probe
High line density scan
Dynamic high line density scanning in real time enhances the lateral and side resolution and makes the image clearer.
Broad band Multi-frequency
The probe with super broad frequency band dominates the best scanning frequency in different depth and obtains better image.
CDA/CDF
Continuous Dynamic aperture (CDA)Continuous dynamic focusing(CDF)can improve the resolution of image and detecting depth
Excellent full digital image processing technology
Image real-time precise display
Zooming the interested area with multigrade synchronizing with original image and displaying more detalied and delicate image.
Multiple image display
Four different images synchronous display is for better compare and analysis.
Super capacity cine loop
Gray Curve;8-grade Edge Enhancement;8-grade Dynamic Range;Process Curves;Dynamic Filltration;STC Segment Curve
Multiple digital image processing technology
We have other models for you to choose !!!
