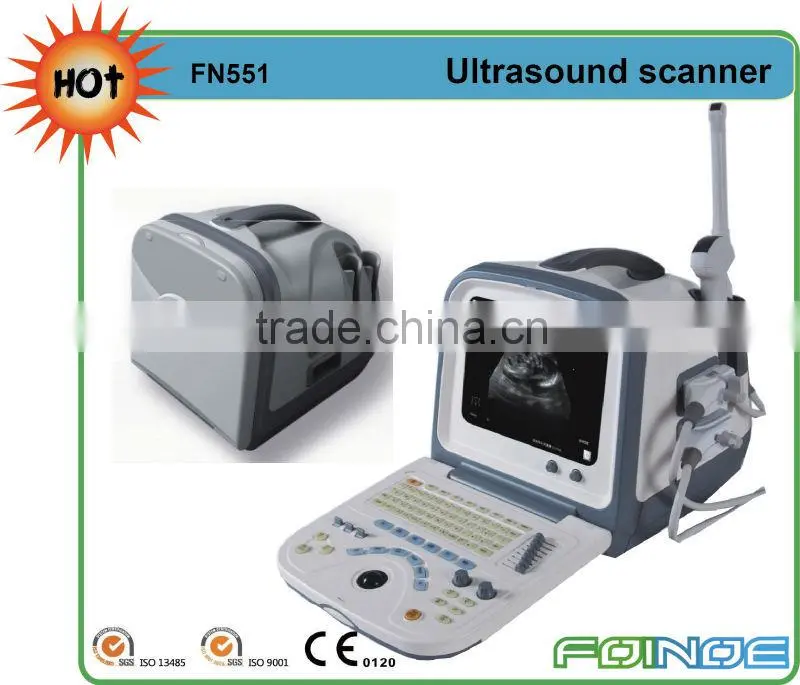

FN551 HOT Selling Digital Ultrasonic DiagnosticNegotiableMOQ: 1 Piece -
FN900B Defibrilator and Monitor Defibrillator ManufacturersNegotiableMOQ: 1 Piece
-
Best Price For Six Channel ECG(1106L)NegotiableMOQ: 1 Set
-
Portable Bladder Scanner UrologyNegotiableMOQ: 1 Unit
-
FN900B Portable Biphasic DefibrillatorNegotiableMOQ: 1 Piece

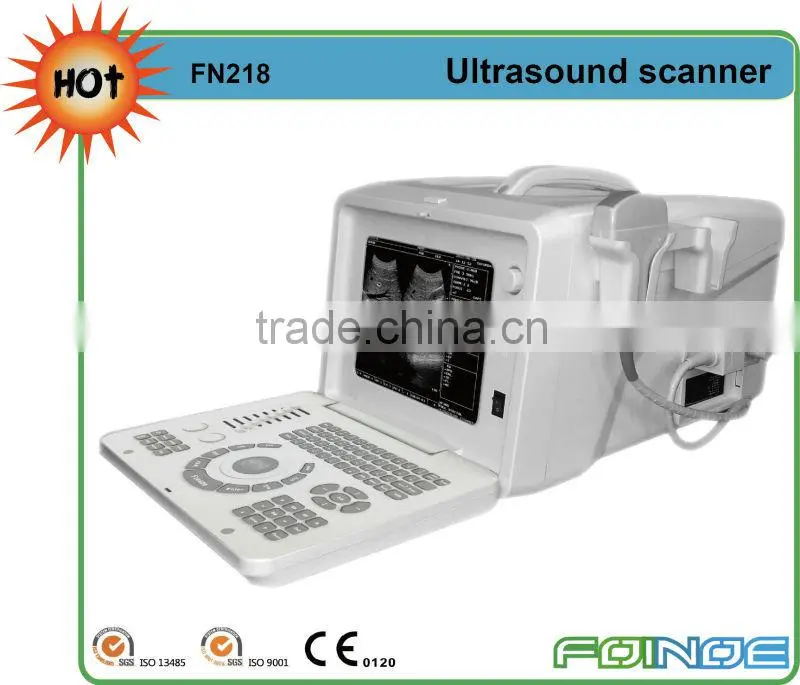

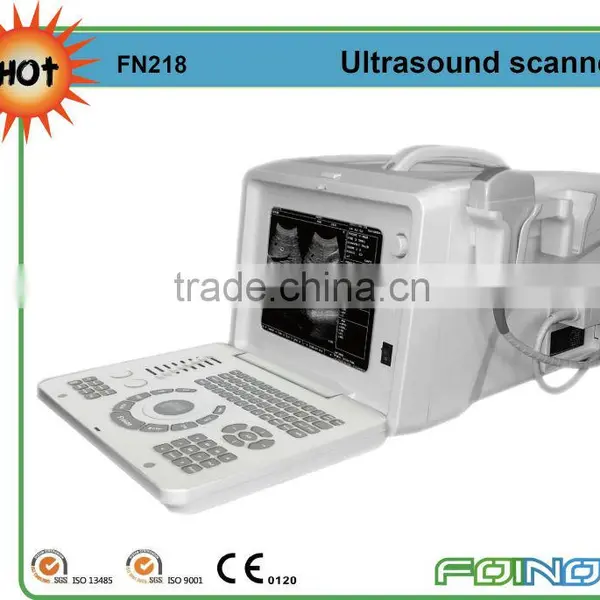

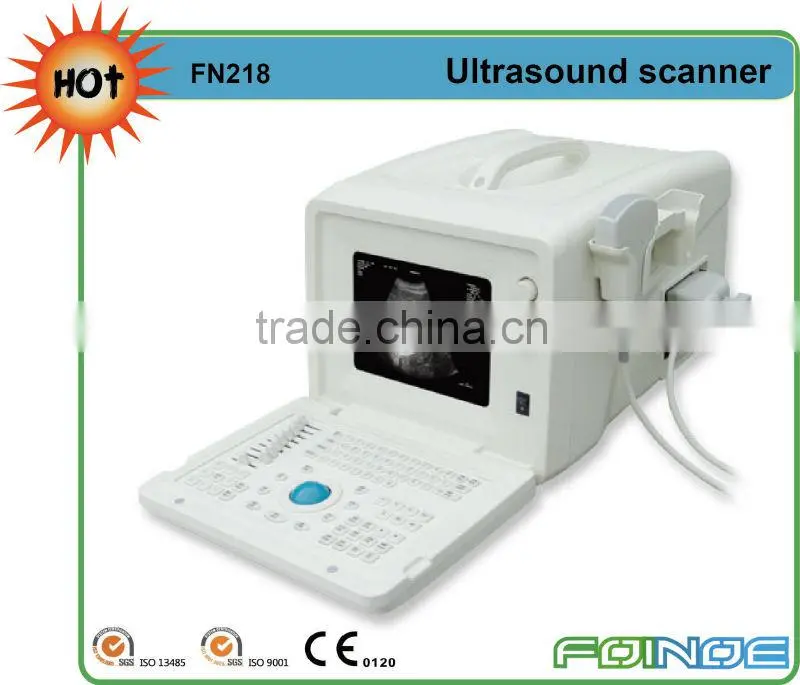

FN218 HOT selling ultrasound probe usb
Main functions
Display mode:
Convex array: B, B/B,4B, B+M, and M
Magnification: ×0.8, ×1.0, ×1.2 (Depth hoist display), and × 1.5,×1 .8, ×2.0 (Depth hoist display)
Dynamic range: 64~96dB adjustable.
Focusing: Four sections of dynamic electronic focusing may be elected.
Pre-processes: changeable aperture, dynamic changes of the marks, dynamic filter and edge enhancement, etc.
Pro-processes: 8 kind of γadjustments,16 kinds of color process, line correlation, frame correlation and linear interpolation, etc.
Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/6.5MHz/7MHz(Matching 6.5MHZ cavity probe and 7 MHzHigh-frequency linear array probe).
Calculation: distance, perimeter, area, heart rate, pregnancy week (BPD, GS, CRL, FL, AC) and anticipated delivery date.
Note: name, serial numbers of case history, gender, age, 16 body marks (with probe), full-screen character, real-time clock
Puncture guide: The puncture guide line can be displayed under B mode.
Gain control: The total gain, near field and far field can be adjusted successively.
Image polarity: left/right, black/white and up/down reverse.
Fractionated gain: 2 time of enlargements
Movie memory: 256 pictures can be memorized successively when the real-time is displayed.
Image memory: 128 pictures Permanent storage.
U disk memory(option shop)
Image review: Images can be reviewed successively and checked one by one.
Output interface: 2 groups of SVGA video output may mate with SVGA color monitor. And 2 groups of PAL video output may mate with PAL monitor, video image recording instrument and image workshop, etc.
Options
1 group of USB Connection.
6.5Mhz linear arry
6.5Mhz transvaginal convex
Main technical index
Probe: 80Array element R60.
Probe frequency: 3.5MHz.
Scanning depth: ≥180mm.
Lateral resolution: ≤2mm(depth≤80mm).
≤3mm(80< depth≤130mm).
Axial: ≤1mm(depth≤80mm).
≤2mm(80< depth≤130mm).
Dead zone:≤5 mm.
Geometry position precision: lateral≤5%.
axial≤5%.
Monitor:10 inch SVGA high resolution monitor(may choose PAL monitor).
Frames cine loops:256.
Power supply scope:AC 110 V±10%V or 220V±10%V 50Hz.
Input:≤ 60VA.

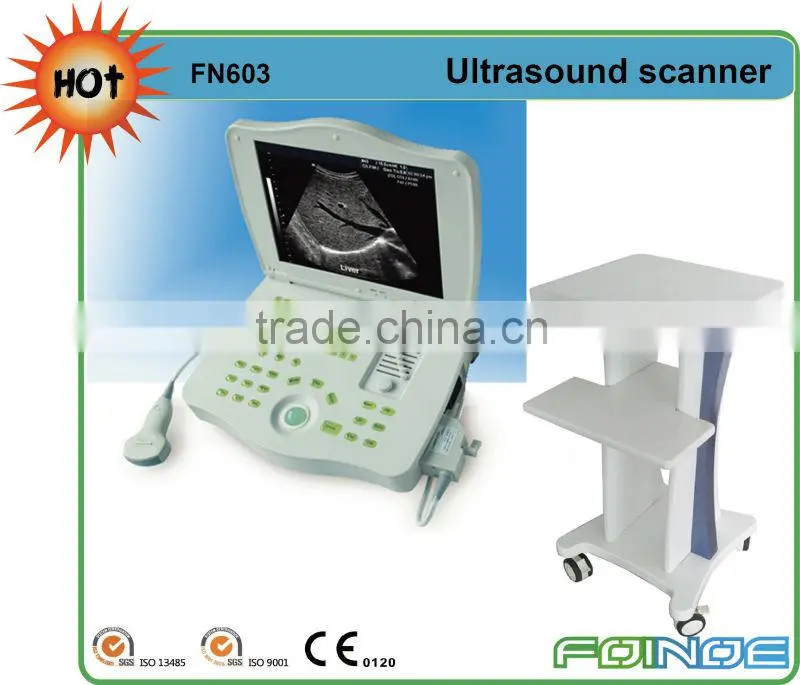

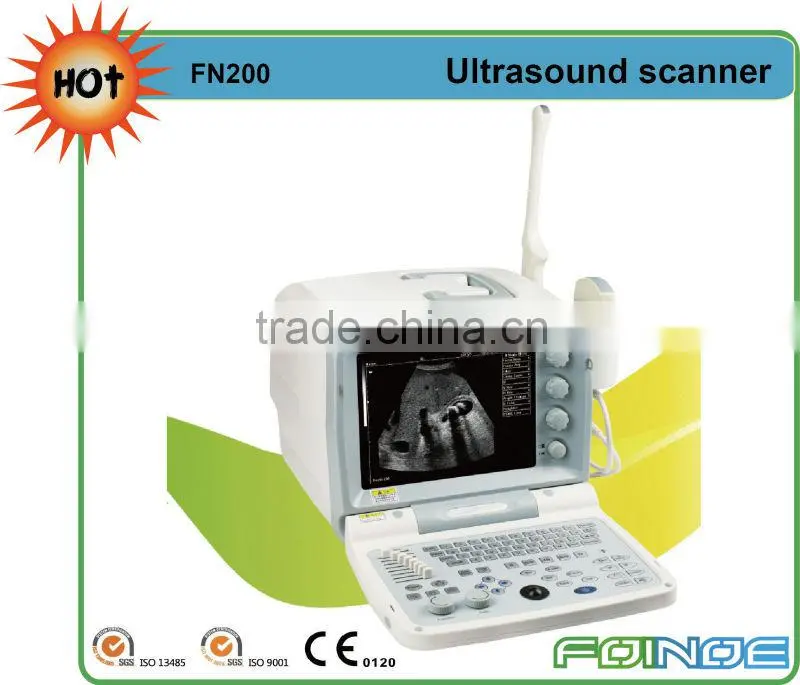

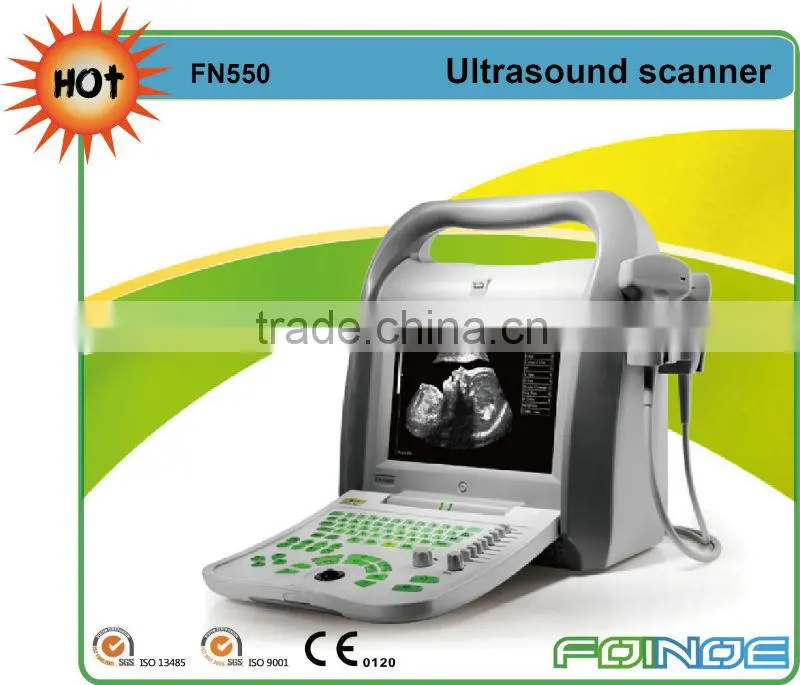

We have other models for you to choose !!!
