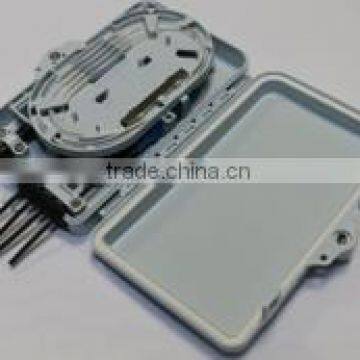

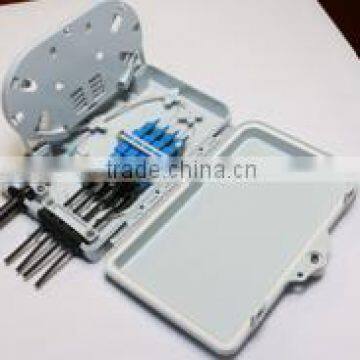

Help CenterJZ-1314-4A Optical Fiber Box Indoor
Related Products
-
Ftth Optical Distribution Box Mid-Span Access TypeUS$ 1 - 50MOQ: 100 Pieces -
Plastic Distribution Box Mid-Span Access TypeUS$ 1 - 50MOQ: 100 Pieces
-
Ftth Indoor Distribution Box Mid-Span Access TypeUS$ 1 - 50MOQ: 100 Pieces
-
Outdoor Distribution Box Mid-Span Access TypeUS$ 1 - 50MOQ: 100 Pieces
-
Optical Distribution Box Mid-Span Access TypeUS$ 1 - 50MOQ: 100 Pieces
General Description:
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
1). Total enclosed structure, be in nice shape.
2). Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
3). Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4). Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
5). Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Specification:
1). Environmental Requirement
Working temperature:-40℃~+85℃
Relative humidity:≤85%(+30℃)
Atmospheric pressure:70KPa~106Kpa
2). Main Technical Data
Insertion loss:≤0.2dB
UPC return loss:≥50dB
APC return loss:≥60dB
Life of insertion and extraction:>1000 times
3). Thunder-proof Technical Data
The grounding device is isolated with the cabinet, isolation resistance is no less than 2MΩ/500V(DC);IR≥2MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover; U≥3000V
Configuration table:
Table 1 Model and configuration
Model |
Description |

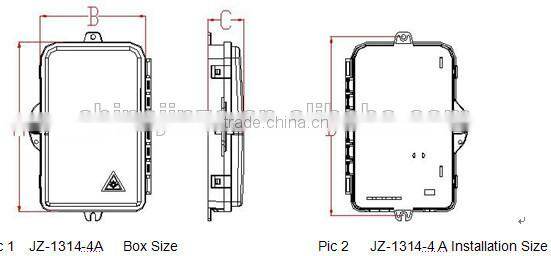

Size(Pic 1) |
Max Capacity |
Installation Size (Pic 2) |
||
A*B*C(mm) |
SC |
LC |
PLC |
D (mm) |
||
JZ-1314-4A |
Distribution Box |
186*116*40 |
4 |
8 |
8(LC) |
195 |
