Help CenterFiber Optial Distribution Point 24core
Related Products

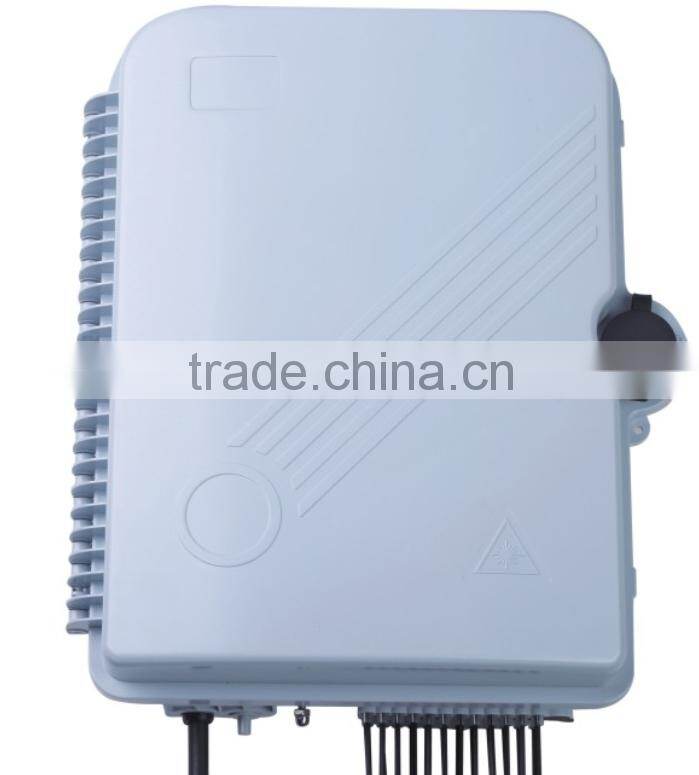

Fiber Optic Distribution Box

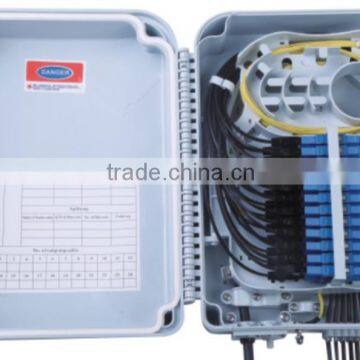

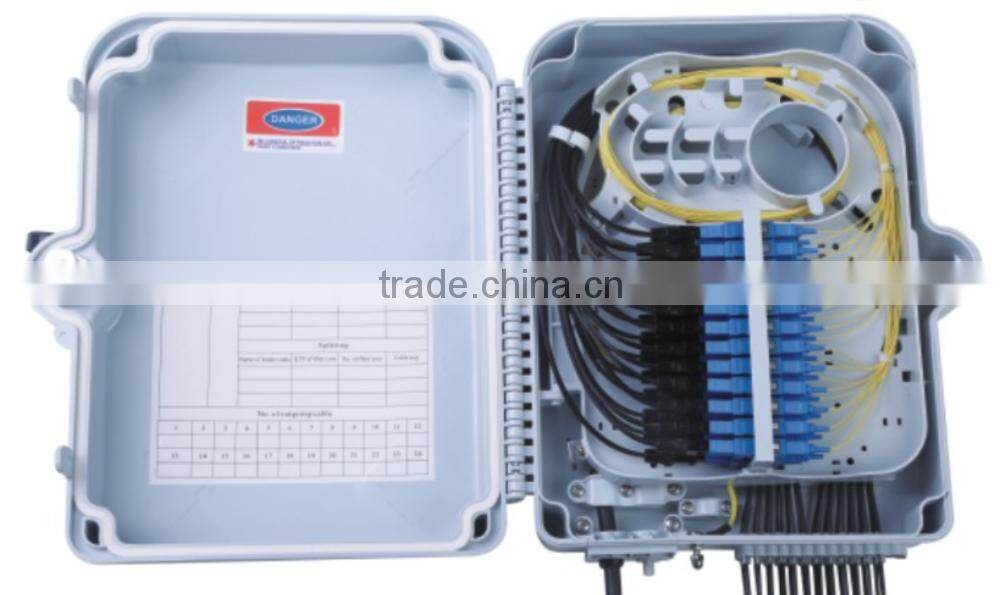

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
| 1). Total enclosed structure, be in nice shape. |
| 2). Material: wet-proof, water-proof, dust-proof, protection level up to IP65. |
| 3). Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one. |
| 4). Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance. |

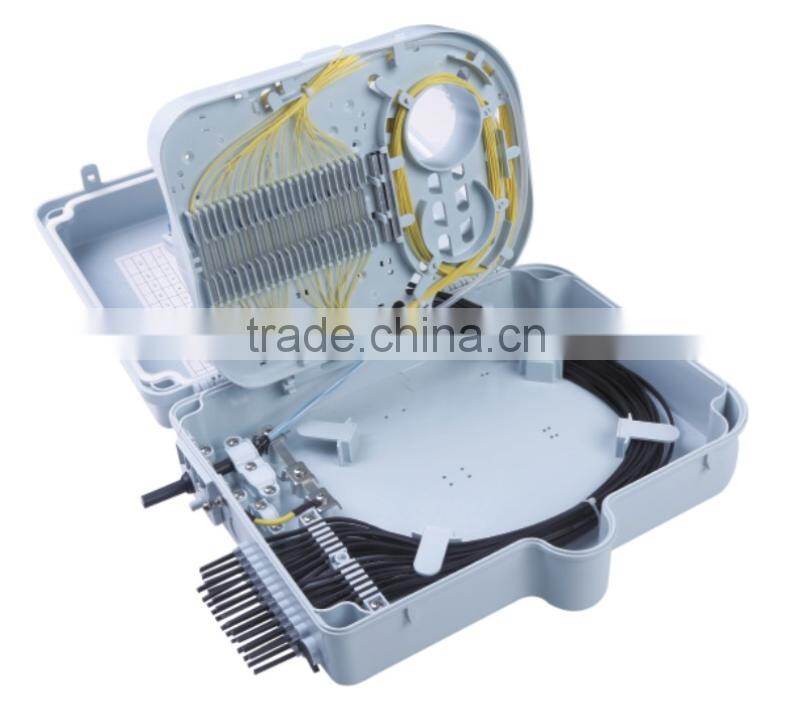

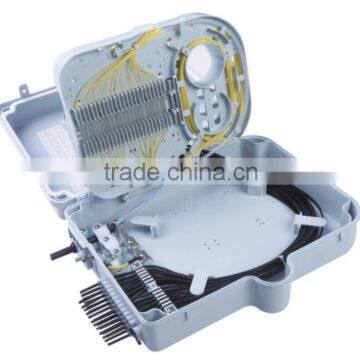

| 5). Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation. |
6). Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses. |
Table 1 Model and configuration
Model |
Description |
Size(Pic 1) |
Max Capacity |
Installation Size (Pic 2) |
|
A*B*C(mm) |
Splitter |
Splice |
A*B*C(mm) |
||
JZ-1309-24A |
Distribution Box |
320*240*100 |
24 |
24 |
190*298 |
Accessories:
1. Key*1
2. Accessories Bag * 1
,
Ningbo Jinze Telecommunication Equipment Co., Ltd. was founded in 1994, which is an integrated manufacturing enterprise specialized in communication products research, development, production and sales. We have a complete R&D system, advanced production and testing equipments, and have established a quality assurance system in accordance with the ISO9001 standards.
