Help CenterIntegrative Low Pressure Solar Water Heater 100,150,200,300L
Related Products
-
2016 New Heat Pipe Solar Water HeaterUS$ 98 - 800MOQ: 5 Sets -
2016 Green Energy Compact Pressurized Solar Water Heater for USA,Canada and EuropeUS$ 98 - 698MOQ: 1 Set
-
Portable Small Homemade Heat Pip Compact High Pressure Solar Water HeaterUS$ 98 - 698MOQ: 1 Set
-
SUS316L Inner Tank Solar Water HeaterUS$ 98 - 698MOQ: 1 Set
-
2016 Green Energy Rooftop High Pressure Solar Water HeaterUS$ 98 - 698MOQ: 1 Set
Specifications
1.SUS304 Inner tank
2.CCC,CE,ISO
3.delivery:10-15days
4.OEM service
Characteristics
1. It takes advantage of the tap water’s pressure. More pressure more comfortable.
2. The water is heated in short time and meeting your demand for hot water.
3. It can produce more hot water than the general types with continuous hot water coming.
Material
Inner tank: Imported stainless steel (SUS304/2B), 0.4mm thickness
Outer tank: Galvanized steel alloy,0.4mm thickness
Bracket: Galvanized steel alloy, 1.5mm thickness

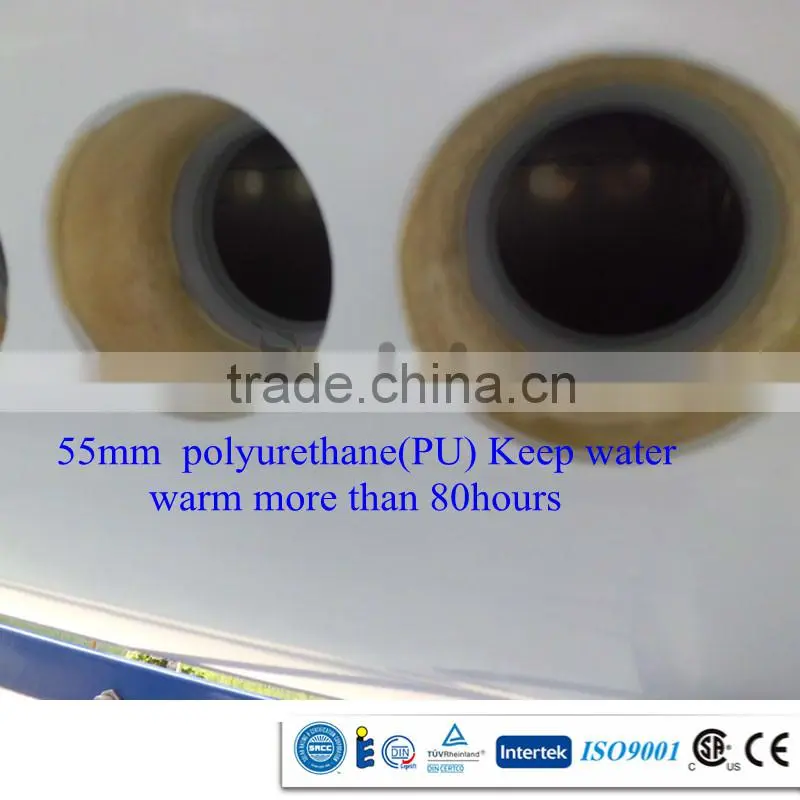

Heat insulation layer: Imported polyurethane (Bayer, Germany), 50mm thickness
Working temperature: 99 celsius degree
Working pressure: 0.005Mpa (0.05 bars)
Accessory:Optional assistant tank and electrical heater
Warranty: 1 year for electric parts/5 Years for the full system /15 Years for the vacuum tube
Different Model For You
Item No. |
Solar Vacuum Tube |
Absorber Area(m2) |
Tank Capacity |
Loading Qty / sets |
|
pcs |
size / mm |
20GP/40GP/40HQ |
|||
YYJ-R021-18 |
18 |
Φ47 X 1500 |
1.69 |
110L |
58/129/144 |
YYJ-R021-20 |
20 |
Φ47 X 1500 |
1.88 |
130L |
53/118/133 |
YYJ-R021-24 |
24 |
Φ47 X 1500 |
2.26 |
160L |
43/97/108 |
YYJ-R021-30 |
30 |
Φ47 X 1500 |
2.83 |
200L |
35/77/87 |
YYJ-R021-36 |
36 |
Φ47 X 1500 |
3.40 |
250L |
30/68/75 |
|
|
|
|
|
|
YYJ-R022-15 |
15 |
Φ58 X 1800 |
1.97 |
150L |
43/86/100 |
YYJ-R022-18 |
18 |
Φ58 X 1800 |
2.36 |
180L |
39/82/96 |
YYJ-R022-20 |
20 |
Φ58 X 1800 |
2.62 |
200L |
34/72/84 |
YYJ-R022-24 |
24 |
Φ58 X 1800 |
3.15 |
240L |
31/65/77 |
YYJ-R022-30 |
30 |
Φ58 X 1800 |
3.95 |
300L |
22/50/58 |
YYJ-R02-236 |
36 |
Φ58 X 1800 |
4.75 |
360L |
16/40/43 |
Remark:
1. Diameter of the tank: 360/460mm
2. Insulation thickness: 50mm
2. Vent connection: 1/2"
4. Electric heater connection: 47mm
5.Cold water inlet: 1/2"
6. Hot water outlet:3/4"
7. Installation angel: 30/45
