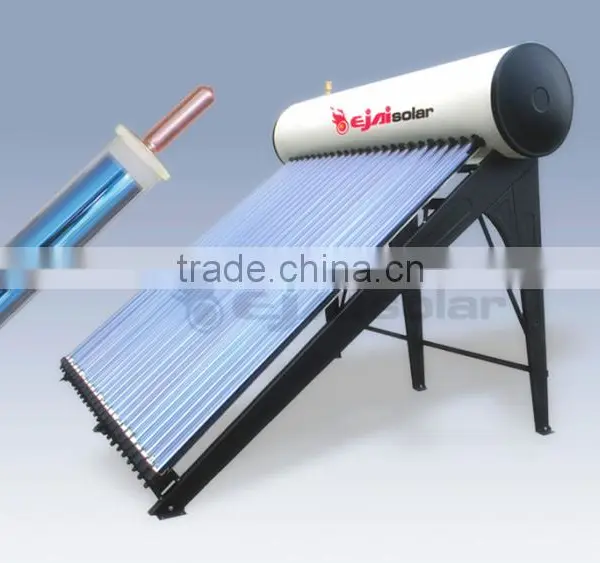

Compact pressuirzed solar water heater features:
1.Adopts the best conduction performance metal- heat pipe (copper)
2.Can be used all year round in the cold climate
3.High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in pressurized water tank rapidly
4.The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.6Mpa
5.No water in the tube, one tube broken don't influence the system working
6.The design for inner tank is reasonable and scientific, which could hold 100, 000 times fatigue test without any damage
7.Dual-purpose brackets for both flat and inclined roof
8.The system is pressurized,it keep a constant temperature of water in the tank, avoid the problem came from water level controller malfunction which could cause water flow out

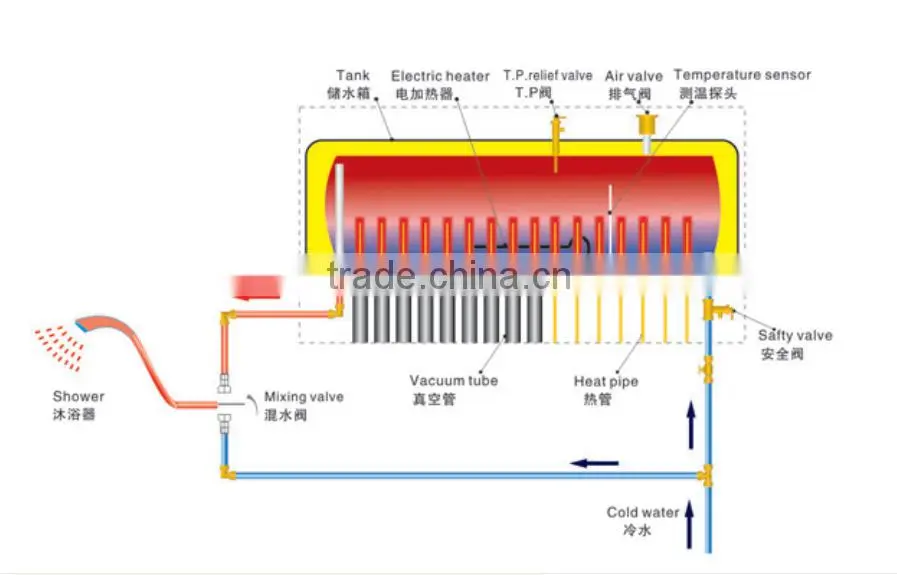

working principle:
1.The pressurized water tank has no exhaust hole, therefore, it must bear the pressure came from tap water and hot water,when use, the hot water comes out because of water pressure.

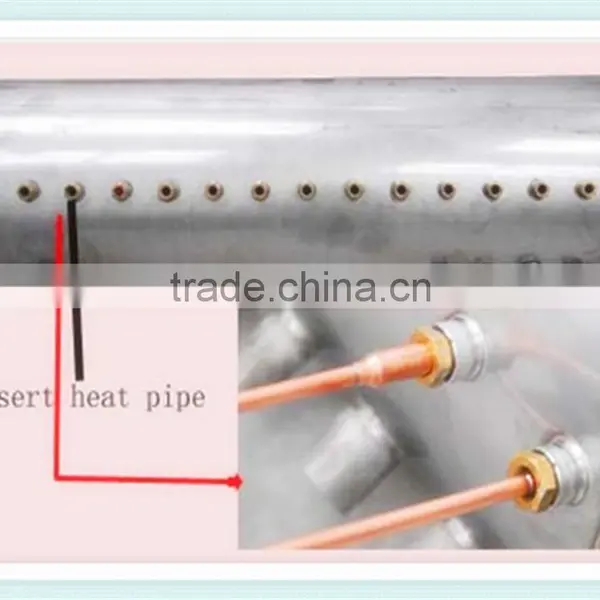

2.Vacuum tube absorbs solar energy, and conductive copper pipe transfers the heat into the pressure solar water heater tank. In this case, the water inside the tank becomes hot
3.No water in the heat pipe makes the whole system could bear pressure
Specification:
Description |
Pressure solar water heater |
Material of out tank |
0.4mm thickness PVDF Galvanized Steel |
Material of inner tank |
Food grade 1.2-2.0 mm thickness SUS304-2B stainless steel |
Tank insulating layer |
55mm 50kg/m³ high-density polyurethane foame |
Inlet and outlet hole |
Male G 1/2, 3/4 |
Max pressure |
0.6Mpa |

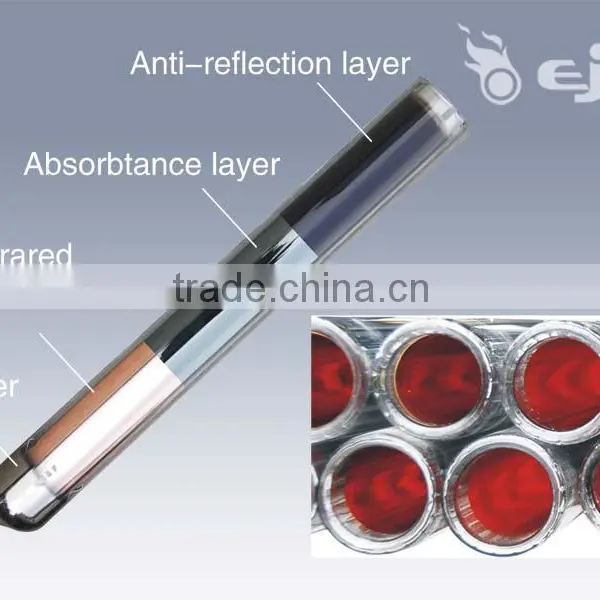

Solar collector tube |
3.3 Borosilicate glass with Cu-SS/Aln coating |
Heat pipe material |
TU1 red copper, with special anti-freezing cap, withstand -40°C |
Thickness of glass tube |
1.6mm |
Vacuum tube tightness |
P≤0.005 Pa |
Absorption |
as=0.94-0.97(AM1.5) |
Emission ratio |
εh=0.03-0.05(80C±5C) |
Idle sunning property parameters |
Y=220~260m2.C/KW |
Average heat loss coefficient |
ULT=0.6~0.7W/(m2.C) |

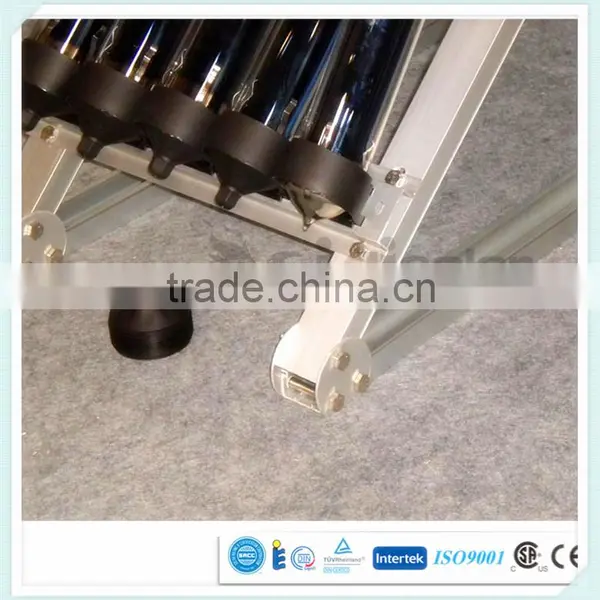

Bracket: |
1.5mm thickness PVDF Galvanized Steel |

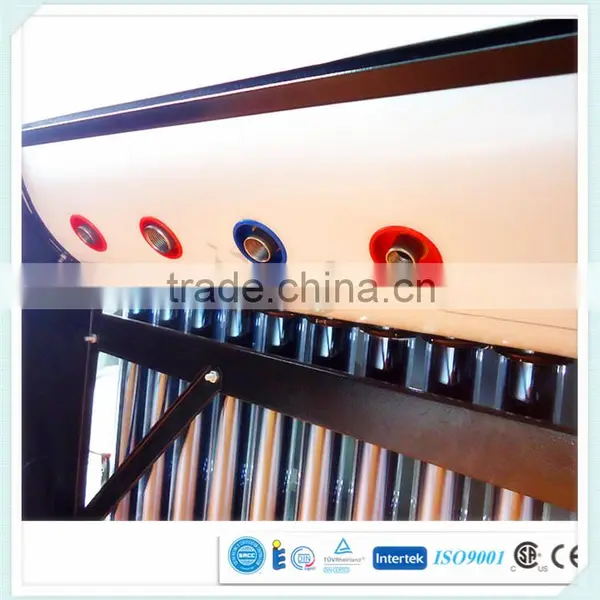

Structure of tank: |
4 holes for air vent,water inlet, outlet, electric heater, |
Welding: |
Argon arc welding, spot welding |
Fastening pieces: |
Made of stainless steel screw |
Item list:
Remark:
Information above is our regular technique, we can also manufacture with different material and specification as per different requirement. Any enquiry will receive our immediate reply within 12 hours.
