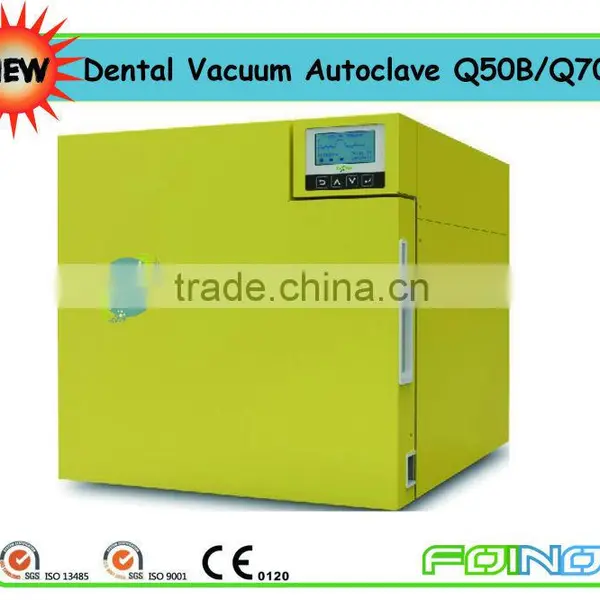

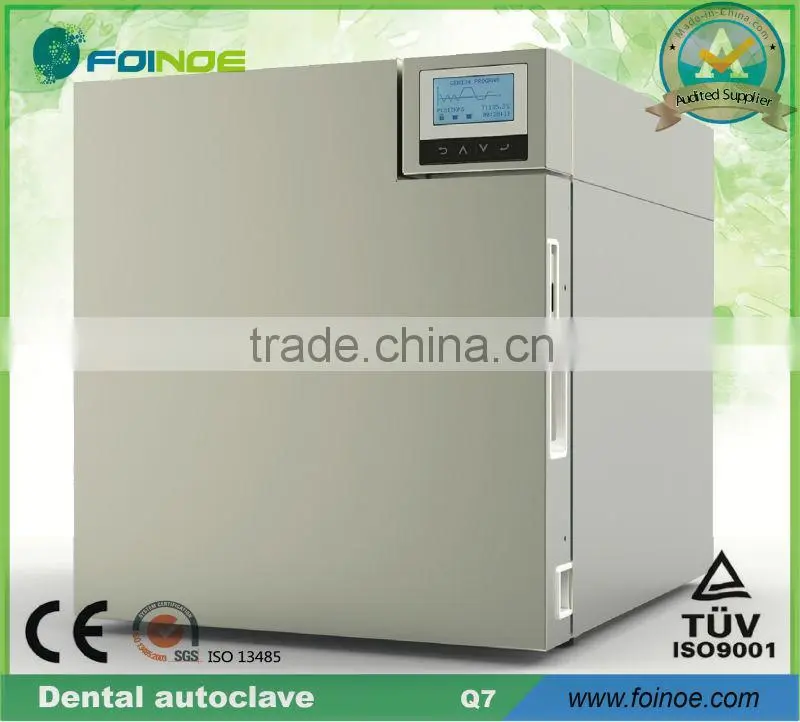

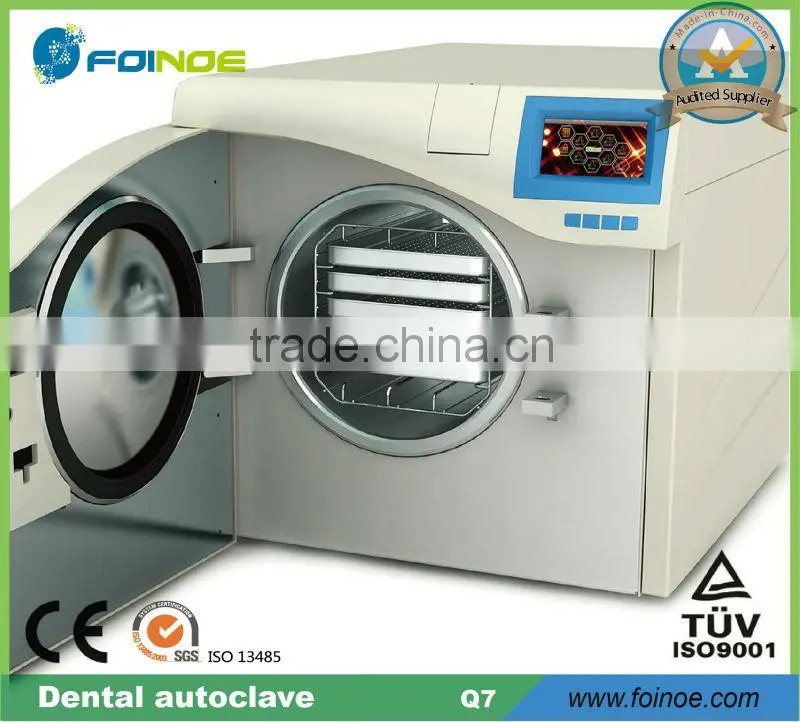

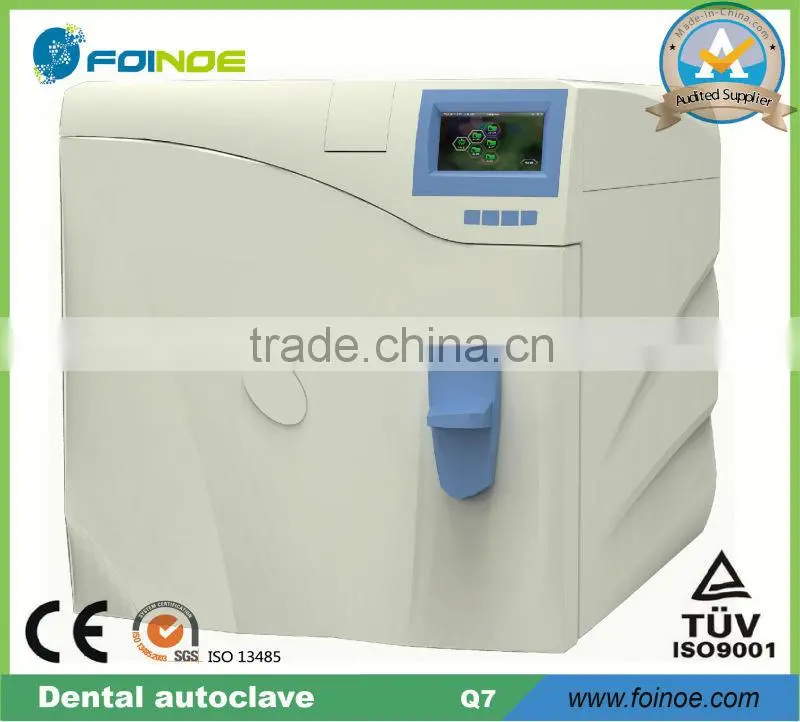

18L and 23L Class B dental small size autoclave
Technical parameters
Quantus series steam sterilizer | ||||
Model |
Q1 |
Q3 |
Q5 |
Q7 |
Use interface |
4.3”/3.5” touch screen; colorful TFT/Grey TFT |
|||
Door |

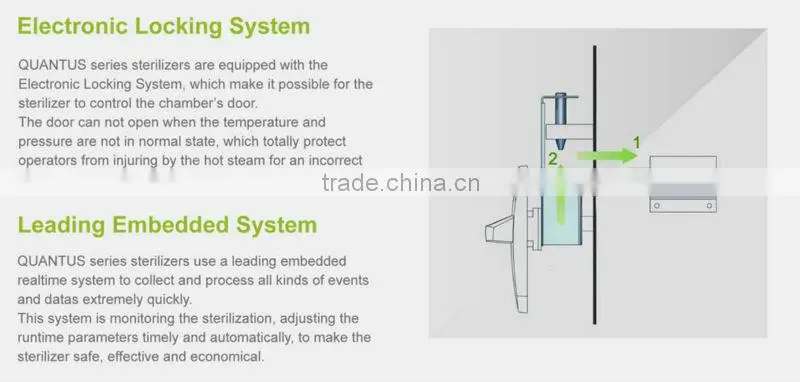

Electric/Manual (Electric Locking System |
|||
Vacuum pump |
German /Japanese high degree vacuum pump |
|||
Ultimate vacuum |
-0.96/-0.88bar |
|||
Dimensions |
545mm*421mm*375mm |
500mm*450mm*640mm |
||
Chamber size |
Φ170mm*325mm |
Φ200mm*368mm |
Φ250mm*360mm |
Φ250mm*460mm |
Volume |
8L |
12L |
18L |
23L |
Weight |
32Kg/34Kg |
45Kg/47Kg |
56Kg/58Kg |
57Kg/59Kg |
Power supply |
220V 50Hz AC / 3400W |
|||
Data interface |
USB / RS232 |
|||
Printer |
Thermal / Pin |
|||
'

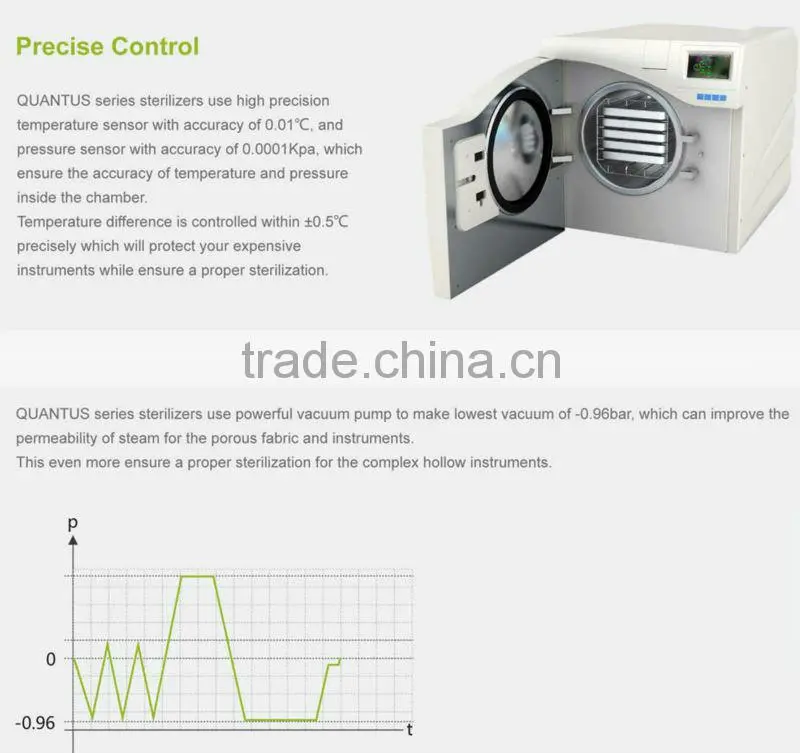

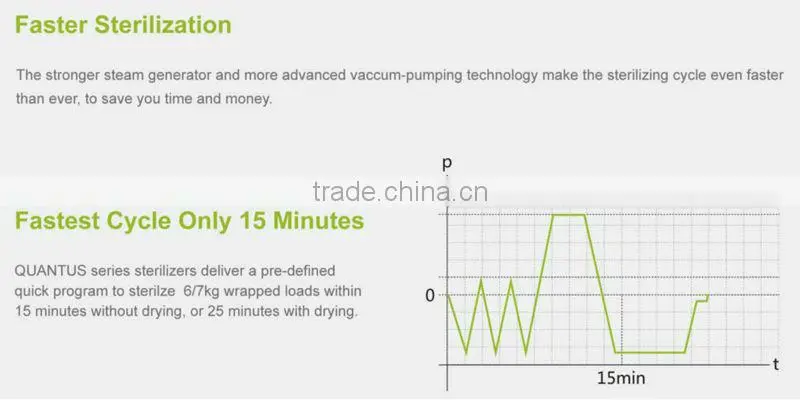

Sterilization program
QUANTUS series sterilizer has 5 pre-defined and 3 user-defined programs, as well as 4 test programs.
|
Gen134 program |
Gen121 program |
Quick1 program |
Quick2 program |
Prion program |
Pre-vacuum cycles |
3 |
3 |
3 |
2 |
3 |
Temperature |
134 |
121 |
134 |
134 |
134 |
Pressure |
2.1 |
1.1 |
2.1 |
2.1 |
2.1 |
Sterilizing time |
5 |
20 |
3.5 |
3.5 |
20 |
Drying time |
15(7) |
15(7) |
6(3) |
10(5) |
15(7) |
Note:Figures in brackets are for Model Q3. Some parameters will vary depending on different specifications.

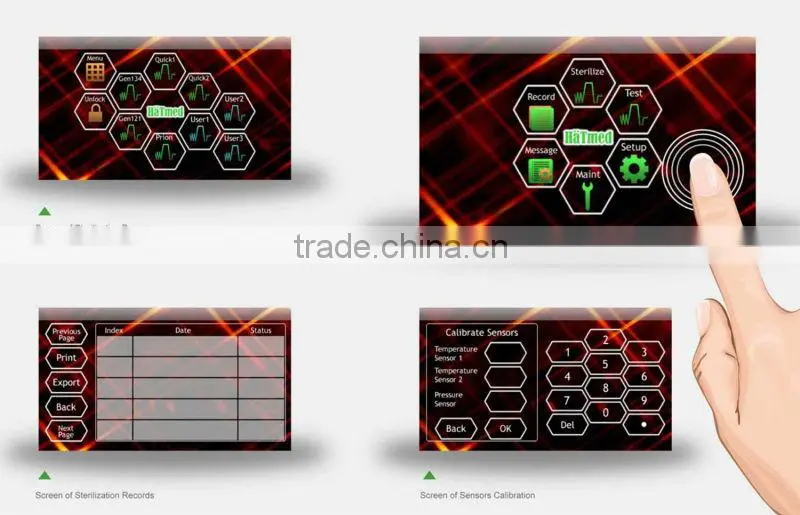

New touch screen,new feeling
QUANTUS series sterilizers have touch screen and convenient graphical user interface.
You can control everything by a simple click.
All operating instructions,sterilization status and system information display on the screen.
You can operate the sterilizer by using the touch screen,or the tranditional buttons,which you are familiar with.
