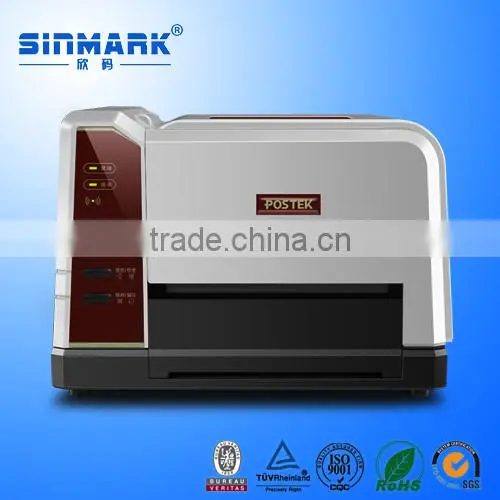

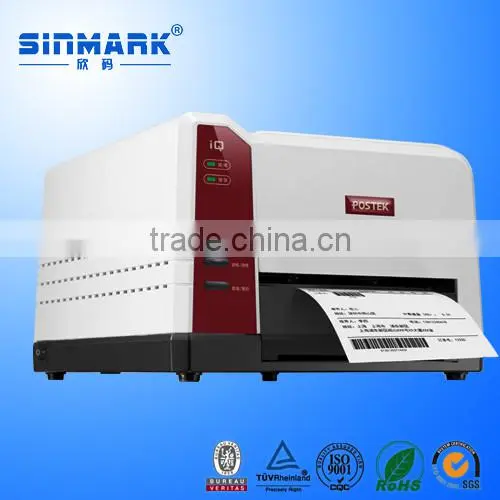

       iQ200 Compact Printer Features

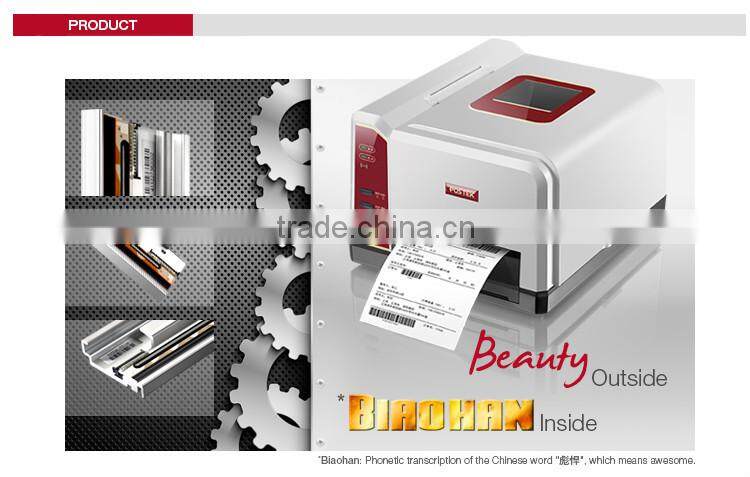

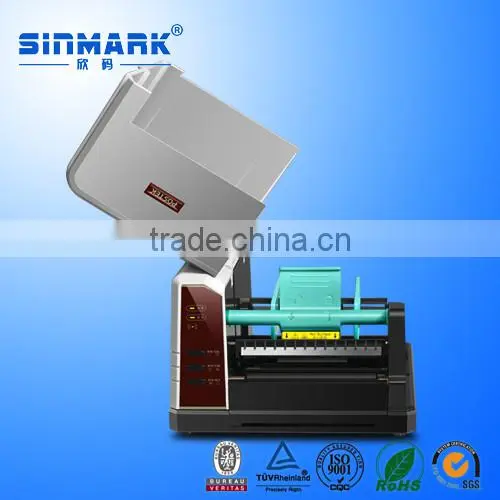

• Innovative TPH & Bracket in a one-piece design enables massive volume printing with extreme simplicity.
• Extra anti-fraying coating on all heating units triples the TPH lifespan compared to previous models.
• Standard Wi-Fi connection allows more flexibilityto connect with mobile devices.

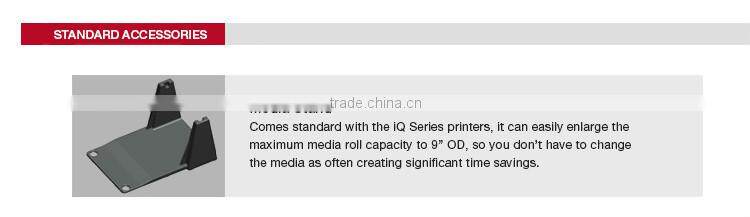

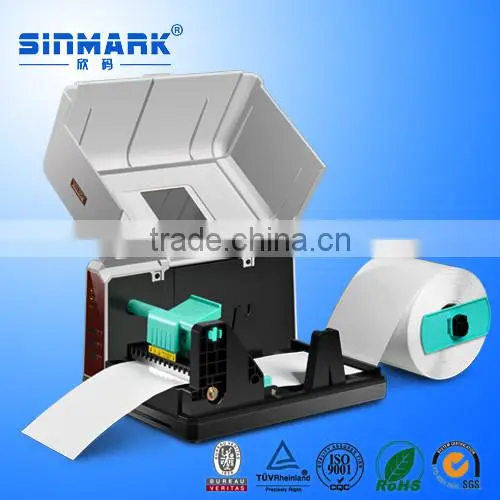

• Standard External Media Stand enlarges the media roll capacity to 9'' OD.
• Compatible with the majority of express billing software systems.
• All rotating parts are supported by ball bearings or fixed bearings, thereby eliminating wear caused from direct contact with plastic.

• iQ200 Compact Printer Specification

• Printing Method	Direct Thermal
  Printing Resolution	203 dpi
  Max Printing Speed	5 ips (127 mm/s)
  Max Printing Width	4.09″ (104 mm)
  Max Printing Length	40″ (1016 mm)
  Memory	8 MB FLASH ROM, 16 MB SDRAM
  Media	Width: 4.72″ (120 mm) max., 0.98″ (25 mm) min. Supply roll: OD 5″ (127 mm) max., or OD 9″ (228.6 mm) max. (using External Media Stand)                    ID 1(25.4mm) min. Thickness: 0.003″ - 0.006″(0.08 - 0.15 mm), including liner.
  Media Sensor	Reflective (multiple mounting positions)
  Fonts	Five built-in ASCII fonts, Downloadable TrueType fonts
  Barcode Types	1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128; 2D Barcode: MaxiCode, PDF417, Datamatrix, QR Code.

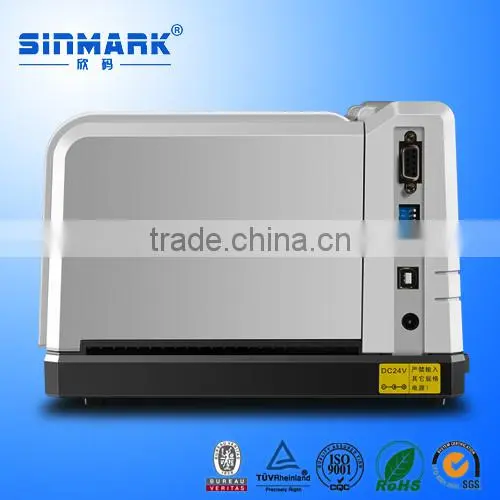

  Interfaces	WIFI, USB DEVICE 2.0, RS-232 Serial
  Power Rating	24 VDC Power adapter
  Weight	1.8 kgs
  Dimensions	W 210 mm x D 255 mm x H 150 mm
  Operating Environment	Temperature: 0℃ – 40℃ (32°F ~ +104°F); Relative humidity: 5% - 85% non condensing
  Storage Environment	Temperature: -40℃ – 60℃ (-40°F ~ +140°F); Relative humidity: 5% - 85% non condensing

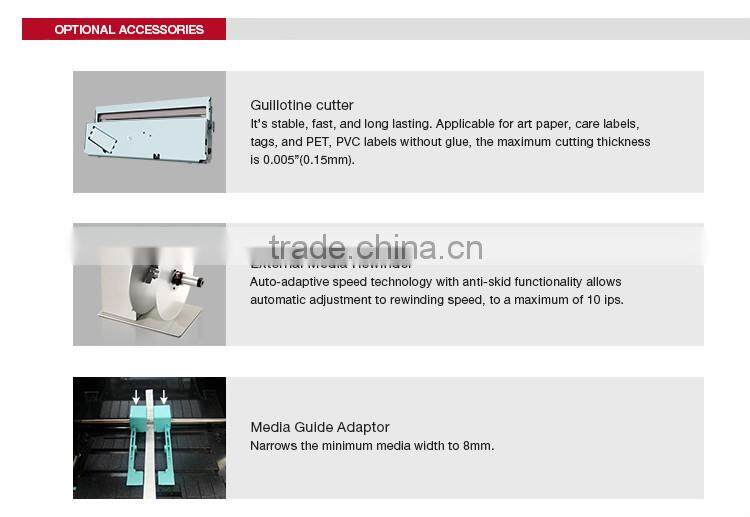

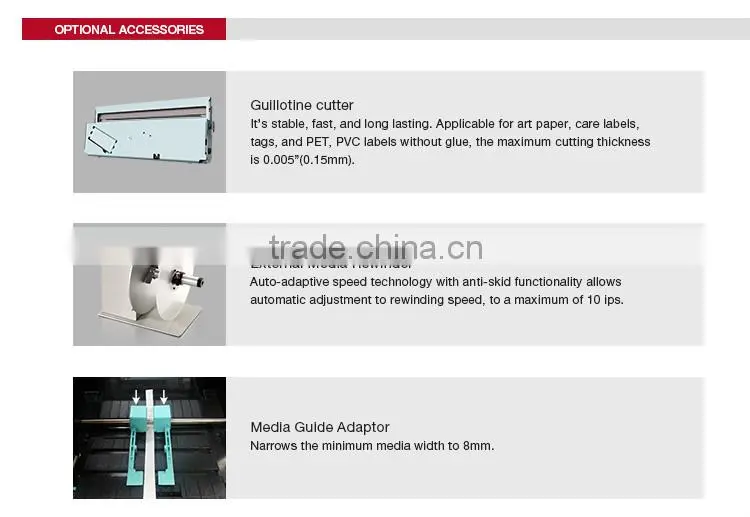

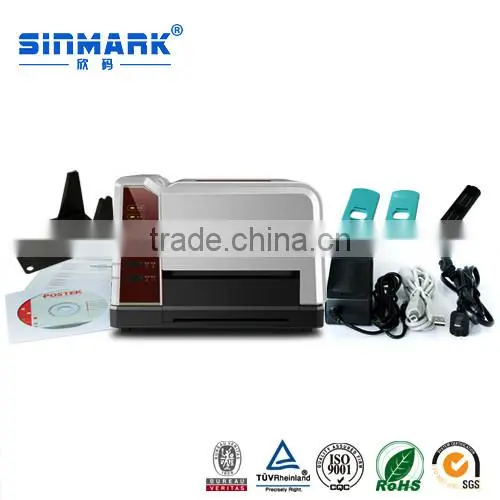

  Accessories	Standard Item: External Media Stand; Optional Items: External Label Rewinder, Guillotine Cutter, Media Guide Adaptor

   iQ200 Compact Printer Applications
