latest sale bar code printing machine,Q8/300 Compact Printer

FOB Price

US$ 100 - 150 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

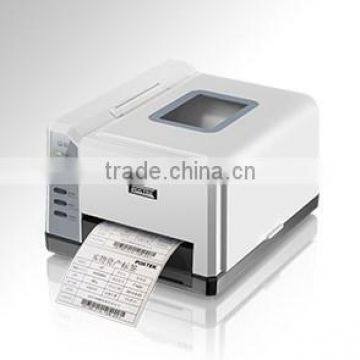

latest sale bar code printing machine,Q8/300 Compact Printer

Small footprint, quiet, tough for any job.
Left-right structure, one piece chassis, fixed Printhead module and fixed ribbon spindle improves strength and convenience.
Best-in-class performance, high reliability and low noise.
Innovative Convective Heat Transfer (CHT) design dispenses heat, enhancing performance and extending life of printer.
Reflective media sensor with multiple mounting positions.

Q8/300 Compact Printer Specification

Printing Method	Thermal Transfer
Printing Resolution	300 dpi
Max Printing Speed	3 ips (76.2 mm/s)
Max Printing Width	4.17″ (106 mm)
Max Printing Length	79″ (2000 mm)
Memory	8 MB FLASH ROM, 16 MB SDRAM
Media	Roll-feed, die-cut, continuous, fan-fold, tags, tickets in plain paper or thermal paper. Width: 4.72″ (120 mm) max., 0.98″ (25 mm) min. Supply roll: OD 4.5″ (114 mm) max., ID 1″ (25.4 mm) min. Thickness: 0.003″ - 0.006″(0.08 - 0.15 mm), including liner.
Ribbon	Wax, Wax/Resin, Resin Ribbon roll: OD 1.5″ (38 mm) max., ID 0.5″ (12.7 mm) core Max width: 110 mm; Max length: 110 M. Ink side: Out
Media Sensor	Reflective (multiple mounting positions)
Fonts	Five built-in ASCII fonts, Downloadable TrueType fonts
Barcode Types	1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128; 2D Barcode: MaxiCode, PDF417, Datamatrix, QR Code.
Interfaces	RS-232 Serial, USB DEVICE 2.0
Power Rating	24 VDC Power adapter
Weight	2.1 kgs
Dimensions	W 210 mm x D 255 mm x H 150 mm
Operating Environment	Temperature: 0℃ – 40℃ (32°F ~ +104°F); Relative humidity: 5% - 85% non condensing
Storage Environment	Temperature: -40℃ – 60℃ (-40°F ~ +140°F); Relative humidity: 5% - 85% non condensing
Optional Items	External Rewinder, Guillotine Cutter, Media Guide Adaptor
