High Quality Gigabit Ethernet Over STM-1 Converter

High Quality Gigabit Ethernet Over STM-1 Converter photo-1
US$ 960 - 1,620 MOQ: 2 Units
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BAUDCOM High Quality Gigabit Ethernet over STM-1 converter
Model Number:
BD-EOS-GE/STM-1
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name BAUDCOM High Quality Gigabit Ethernet over STM-1 converter
Model Number BD-EOS-GE/STM-1

High Quality Gigabit Ethernet over STM-1 converter

Overviews

The Gigabit Ethernet/STM-1 Converter (BD-EOS-GE/STM-1 in short hereafter) takes SDH technology as its core to provide access, convergence, transmission and management functions of TDM services and broadband IP services, and is a device for comprehensive access conversion in the applications of conventional telecommunicating services and broadband data services. The gigabit Ethernet to STM-1 converter is an interface conversion equipment supplied with two STM-1 optical interface, two electrical Ethernet and two Optical Ethernet interface.

The design of Gigabit Ethernet/STM-1 converter complies with ITU-T and the relevant SDH specifications issued by Ministry of Information Industry, China.

The BD-EOS-GE/STM-1 carries the data services via the container in SDH.

The device applies 19" rack of 1U high, which can be placed on the desktop or installed in a cabinet of 2.2m or 2.6m high, and can directly drive the top-mounted aural-visual alarm unit.

The device can be powered by three power choice: AC ~220V, DC -48V, and AC ~220V with DC-48V backup

Feature

²         Providing standard STM-1 optical interface that complying with G.664 standard;

²  Providing an optical Ethernet interface;

²  Of excellent synchronous characteristics;

²  With DC-48V/AC220V optional for power supply;

²  Providing two optical STM-1 interface and two optical gigabit Ethernet interface;

²  Appling a rack with height 1U and width 19”, can be set on the desk or mounted in a cabinet or rack of height 2.2 m or 2.6 m;

²  The optical interface can be SC connector or SFP;

²  Supportting network management;

²  The device provide rich alarm indicator;

²  Support MTU 2K bytes.

²  Support 1+1 linear MSP protection









Technical Specifications



Ethernet Interface

Interface type

10/100/1000M Base-Fx

Port specification

In accordance with IEEE802.3 10/100/1000M Base-Fx standard

Transmitting code speed

1000Mbps

Type of connector

SC/FC/LC(can be chosed by customer)

Transmit distance

0-120Km



STM-4 Optical Interface

Optic interface velocity

155520kbit/s (Optic STM-1, G.957, Frame structure G.707)

Interface code type

In accordance with the codes stipulated in G.957

Digital signals

In accordance with G.707 and G.958

Type of optical connector

LC/SC

Central wavelength

850 or 1310 or 1550 nm

Optional transmitting distance

0~40km (40~120km,to be customized) ( Single-Mode)

 0~2km (Multi-Mode)



Mechanical Specifications

Rack Mounting

Standard 19-inch DIN rack

Dimension

Desktop type: 440mm(L)*340mm(D)*43.5mm(H)



Management

Supporting CLI management;

Power Supply

Input AC/DC voltage

-48V DC ( nominal ) / AC also available

Range of input

-36V to -72V DC /90V~260VAC

Temperature

0 centi degree to 55 centi degree

Humidity

95% RH (non-condensing)

Cooling

Convection Cooling

Order information

BD-EOS-GE/STM-1

Gigabit Ethernet over STM-1 converter, two optical gigabit Ethernet;Two electrical gigabit Ethernet, two optical STM-1 port, power AC220V or DC48V

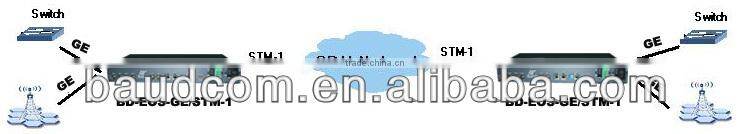

Application

High Quality Gigabit Ethernet over STM-1 converter

Certifications



High Quality Gigabit Ethernet over STM-1 converterHigh Quality Gigabit Ethernet over STM-1 converter
