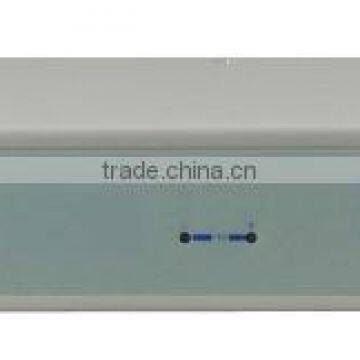

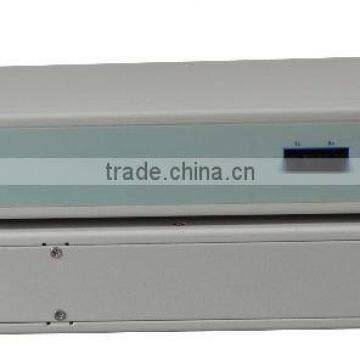

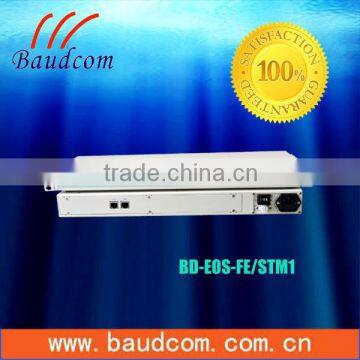

Product: Optical Ethernet Over STM-1 Converter

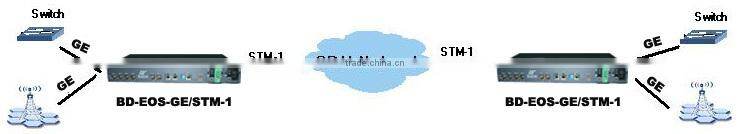

Ethernet Over STM-1 Converter takes SDH technology as its core to provide access, convergence, transmission and management functions of TDM services and broadband IP services, and is a device for comprehensive access conversion in the applications of conventional telecommunicating services and broadband data services. The Ethernet Over STM-1 converter is an interface conversion equipment supplied with one STM-1 optical interface and one optical Ethernet interface. All daughter boards of the interfaces support online hot swap. The design of the SDH converter complies with ITU-T and the relevant SDH specifications issued by Ministry of Information Industry, China
Providing standard STM-1 optical interface ; Providing an Ethernet optical interface and the maximum of package length is 2000 byte. Of excellent synchronous characteristics; With DC-48V/AC220V/DC-48V+AC220V optical for power supply. Supports SNMP network management function. Supports loop-back maintenance functions.
Specifications:
STM-1 Optic Interface
Optic interface velocity : 155520kbit/s (Optic STM-1, G.957, Frame structure G.707) Interface code type: In accordance with the codes stipulated in G.957 Digital signals: In accordance with G.707 and G.958 Power supply: LD Max Input Power: -3dBm Output Power: ≥ -9dBm (Single-Mode) ≥ -12dBm (Multi-Mode) Receiver type: PINFET
Receiving sensitivity: ≤ -35dBm (BER≤10-11) (Single-Mode 1310nm) ≤ -25dBm (BER≤10-11) (Multi-Mode) Type of optical connector:FC/SC Central wavelength: 850 or 1310 or 1550 nm ( optional) Optional transmitting distance: 0~40km (40~120km,to be customized) ( Single-Mode) 0~2km (Multi-Mode)
Optional transmitting distance: 0~40km (40~120km,to be customized)
Rack type EIA 19″rack
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
| Ordering information | ||
|
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
