8channel POTS(FXO/FXS) Fiber Multiplexer With 4ethernet Port

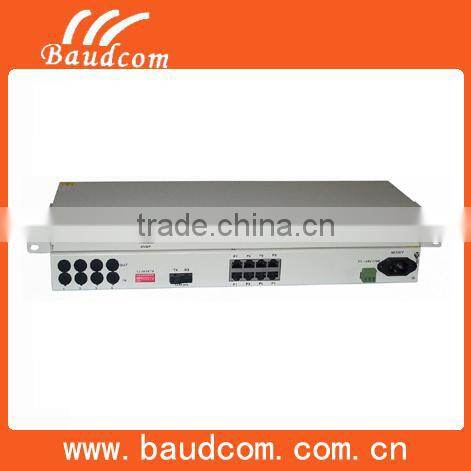

8channel POTS(FXO/FXS) Fiber Multiplexer With 4ethernet Port photo-1
8channel POTS(FXO/FXS) Fiber Multiplexer With 4ethernet Port photo-2

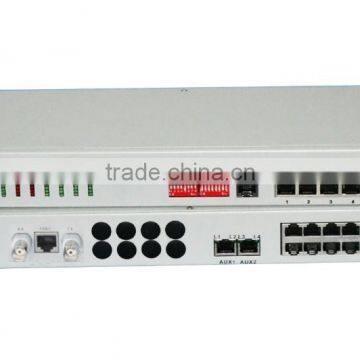

8channel POTS(FXO/FXS) Fiber Multiplexer With 4ethernet Port photo-3

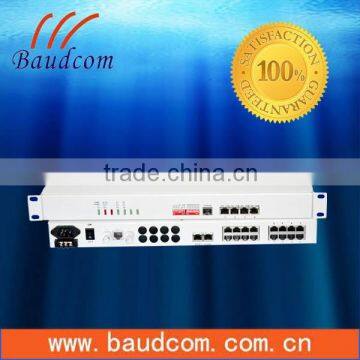

8channel POTS(FXO/FXS) Fiber Multiplexer With 4ethernet Port photo-4
US$ 148 - 237 MOQ: 2 Units
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BAUDCOM Fiber Multiplexer
Model Number:
BD-OP-MUX08
Payment & Shipping
Payment Methods:
Port of Shipment:
Fiber Multiplexer fromSHANGHAI ningbo any port in China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name BAUDCOM Fiber Multiplexer
Model Number BD-OP-MUX08

8channel POTS(FXO/FXS) Fiber Multiplexer



Overview

8 POTS (FXO/FXS) over Fiber multiplexer is a kind of point-to-point fiber transmission device. BAUDCOM designed 8POTS (FXO/FXS), 1~4channel G.703 E1 and 1~4 channel 100M Ethernet,1~4 channelRS232 transmit over one fiber, and it could match different customer requirement

Technical Specifications

PRODUCT CHARACTERISTIC



²  provides 1~4 channel E1/ G.703 for option;

²  provides 1~4 channel 100M (liner) Ethernet ports for option;

²  provides 1~8channel POTS( FXO/ FXS),also can offer 2/4 wire E&M for option;

²  provides 1~4 channel RS232, rate supports 300-15200 bps for option;

²  Ethernet port 10/100M, full/half duplex auto-adaptable and supports VLAN;

²  Ethernet port supports AUTO-MDIX (twisted cable and straight cable auto-adaptable);

²  1~30 channel voice connection, supports calling indication;

²  Configuration: point to point;

²  Voice port supports O port and S port, O port connects switch and S port connects user’s phone;

²  Optical interface supports SC/FC interface and supports single fiber interface

FXO port

Alarm voltage

75V

Alarm frequency

25HZ

2 line input impedance

600Ω (hanging off)

Wastage

40db

FXS port

Alarm detecting voltage

    35V

Alarm detecting frequency

17HZ-60HZ

2 line input impedance

600Ω (hanging off)

Wastage

40db

10/100BaseT Interface

Number of Interfaces

1~4 port

Interface Types

10/100BaseT

Standards Compliance

IEEE 802.3

Protocol

User Programmable HDLC

Connectors

B RJ45 (10/100 BaseT Electrical)

E1 Interface

Number of Interfaces

4 port

Line Rate

E1 (2.048Mbps ± 50 bps)

Line Code

HDB3

Electrical

ITU-T G.703

Jitter

G.823

Impedance

75hom/120 Ohms

Connectors

BNC(75ohm) or RJ45(120ohm)

Optical Interface

Optical interface

SC/FC/ST

8channel POTS(FXO/FXS) Fiber Multiplexer

Wavelength

1310nm/1550nm for single-mode optic interface for option

850nm/1310nm for multi-mode optic interface for option

Sending consumption:

-9dBm (regular order)

Receiving and dispatching module:

>-36dBm(regular order)

Optical receiver receiving sensitivity:

<-36 (BER<10):

Optical code:

NRZ

Transmit distance

MM 2Km/5Km,SM 20Km/40Km/60 Km/120Km for option

Mechanical Specifications

Rack Mounting

Standard 19-inch DIN rack 30 POTS

Dimension

19inch 1 U: 433mm(L)*138mm(D)*44mm(H)

Management for option

Web managed built-in or SNMP central management via chassis



Power Supply

Input AC/DC voltage

-48V DC ( nominal ) / AC also available

Range of input

-36V to -72V DC /90V~260VAC

Temperature

0 centi degree to 55 centi degree

Humidity

95% RH (non-condensing)

Cooling

Convection Cooling



Order information

BD-OP-MUX08

8POTS(FXO/FXS) over Fiber multiplexer

BD-OP-MUX08/4E1

8POTS(FXO/FXS) ,4E1 over Fiber multiplexer

BD-OP-MUX08/4E1/4ETH/4RS232

8POTS(FXO/FXS) ,4E1 ,4Ethernet ,4RS232 over Fiber multiplexer

BD-OP-MUX08/SNMP

8POTS(FXO/FXS) over Fiber multiplexer,web managed or SNMP for option

8channel POTS(FXO/FXS) Fiber Multiplexer

8channel POTS(FXO/FXS) Fiber Multiplexer with 4ethernet port

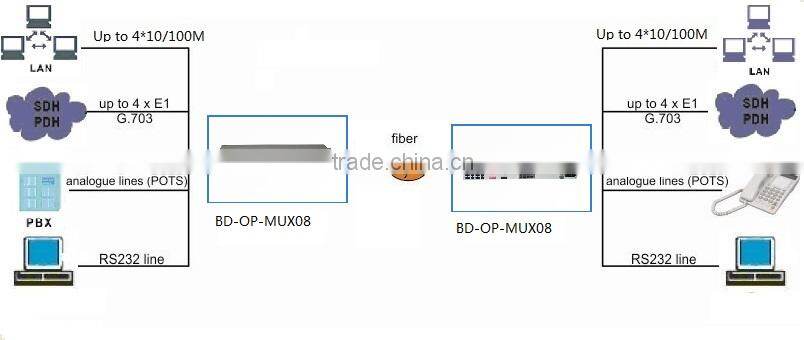

Application

8channel POTS(FXO/FXS) Fiber Multiplexer with 4ethernet port

8channel POTS(FXO/FXS) Fiber Multiplexer with 4ethernet port

8channel POTS(FXO/FXS) Fiber Multiplexer with 4ethernet port
