16 E1 Fiber Optic Multiplexer

16 E1 Fiber Optic Multiplexer thumbnail-1
16 E1 Fiber Optic Multiplexer thumbnail-2
16 E1 Fiber Optic Multiplexer thumbnail-3
16 E1 Fiber Optic Multiplexer photo-1
16 E1 Fiber Optic Multiplexer photo-2
16 E1 Fiber Optic Multiplexer photo-3
US$ 45 - 65 MOQ: 2 Units
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Baudcom Fiber Optic Multiplexer
Model Number:
BD-CWDM-04
Contact Supplier Request Quote Chat Now
Shanghai Baudcom Communication Device Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Fiber Optic Multiplexer from shanghai ningbo or any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Baudcom Fiber Optic Multiplexer
Model Number BD-CWDM-04

16 E1 Fiber Optic Multiplexer

The modularized optical fiber multiplexer is created with 16E1+100M full speed Ethernet capacity of transmission interfaces. The optical fiber multiplexer  also provides various interface modules for voice(FXS/FXO), data(V.35) and RS232 .

optical fiber multiplexer Functions:

Multiplexer of 16*E1 (2.048Mb/s) channels, 2* 100Mbps

Ethernet channel and a clear asynchronous RS-232 data channel
1+1 Optical Redundancy Backup: Provide two plug-in I/O slotsfor dual optical interface cards.Protection of dual optical

interfaceavailable to ensure that business will not be interrupted.
Flexible Configuration: Providing 4 plug-in I/O slotswhich caninsert various modules to meet different user requirements andcustomizations,each slot can use the following service cards:
4-channel E1 module, providing 75ohm or 120ohm(optional).
4-channel V.35 module, providing 4 standard V.35;
4-channel FXS/FXO voice module;
4-channel RS232 module;
Providing 1 RS232 port for system console;
Providing 1 alarm output port,1 order wire port;
Providing SNMP network management;
Providing Web-based network management
Providing controllable menu of LCD;



E1 interface:

Line Rate

2.048Mbps±50ppm

Line Code

HDB3

Interface Standard

ITU-T G.703

E1 Impedance

75Ω(unbalance)

10/100Base-T Interface

Rate

10/100M, full/duplex auto-negotiation

Protocol

Support VLAN

MAC Address Entiries

1k Entiries

Physical interface

RJ45, support AUTO-MDIX
 Rate

1-100 Mbps adjustable by software

v.35 interface

Electric Level

In compliance with CCITT V.35 standard

Physical Interface

DB9

Interface Bit Rate

2.048Mbit/s

Support DCE(master clock),DCE(lineclock), DTE(V.35 interface clock).

FXO/FXS Interface

Electric Level

In compliancewith CCITT V.35 standard

Physical Interface

DB9

Interface Bit Rate

2.048Mbit/s

Rs232 interface

Transmission Mode

Full-Duplex

Transmission Speed:

110~115.2K bps

Optical Interface

Speed of optical interface

155Mbps

Type of Optical Connectors

FC/SC

Focus Wavelength

1310/1550 nm

Optional Transmitting Distance

0~120 Km(can becustomized by customer)

power supplier

* working voltage range wide, good

*anti-disturb and Isolation, work stable
*option I DC-48V,range DC-36V~DC-72C
*option II AC220V,range AC165V~AC240V
*Power Consumption: <=40 Watts

environment condition

*Operating temperature: 0C~+50 C
*Storage temperature: -20 C~+70 C
*Relative temperature:95% (uncondensed)

Dimension

433mm(L)
220mm(W)
43.5mm(H)
EIA 19" Rack

Fiber Optic Multiplexer

16 E1 Fiber Optic Multiplexer

Fiber Optic Multiplexer function

16 E1 Fiber Optic Multiplexer

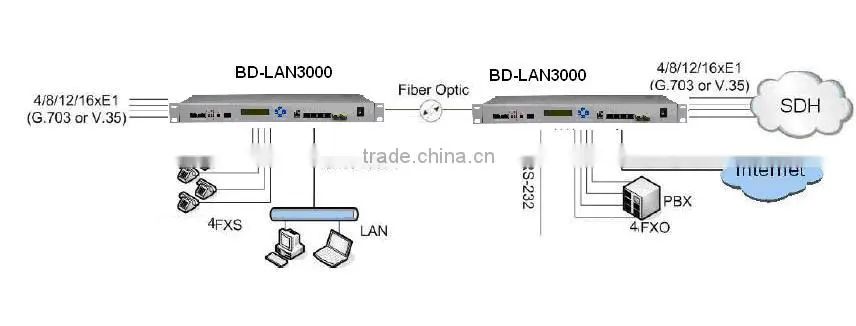

application diagram

16 E1 Fiber Optic Multiplexer



16 E1 Fiber Optic Multiplexer

16 E1 Fiber Optic Multiplexer
