Product:8E1 PDH Multimode Fiber Optic Multiplexer
Highlight
The 8E1 PDH Multimode Fiber Optic Multiplexer can multiplex 8E1 signals fiber,Distance up to 120Km,Supporting 1+1 fiber protection,dual fiber or WDM
Description
The 8E1 PDH Multimode fiber optic Multiplexer is the 8E1 point-to-point optical transport equipment that uses the FPGA chips and it is easy to upgrade. It is single board structure and the largest transmission capacity is 8E1. The outer design use the standard 19 inches rack, so the volume is little, weight is light and operation is convenient and credit.
The 8E1 PDH Multimode fiber optic Multiplexer is used the PDH fiber transmission technologies. The 2M (E1) interfaces can connect with the exchanger, light loop device and multi-diplexer directly to form the mircomidi or the special network. Complete alarm function for 8E1, it is stable and easy to maintenance, install and small in size. It has one digital service telephone.
Feartures:
- Multiplexer Offer 8 X 2Mb/s digital interfaces
- The supervisory control interface implements centralized monitoring and export the monitor and control information of this port and opposite port.
- One link to service telephone for duty contract
- 220VAC & -48VDC power options and the positive and negative of DC-48V can be optional because there is the self-test circuit for the polarity inside th1e device
- Standard 19/9.5 inches rack, little volume, light weight, steady capacity and convenient setup
- Digital clock recovery circuit and digital smooth DPLL adopted for 2.048Mb/s port
- Multiplexer supports LED indicators
- Multiplexer has 1+1 fiber protection for optional
- Power supply redundancy : AC220 and DC-48V or DC-24V combination
Spesification
| Optical interface | |
| Optical wavelength | 850nm/1310nm for multi- mode optical interface |
| 1310nm/1550nm for single-mode optic interface | |
| Fiber Connector | SC/FC |
| Receiving and dispatching module | >-6dBm |
| Optical receiver receiving sensitivity | <-36 (BER<10) |
| Dynamic range receiving | >-30dB |
| Transmitting range | Multi-mode 2 Km, single-mode 40Km |
| single-mode 40Km, single-mode 60 Km, single-mode 120Km | |
| Vibration characteristic | Satisfies G.742 and the G.823 standard |
| E1 interface | |
| Interface code | HDB3 code |
| Line speed | 2.048Mbp/S 50ppm |
| Interface standard | ITU-T G 703 |
| Interface impedance | 75ohm/unbalanced or 120ohm/ balanced |
| Interface characteristic | supports rack (19 inches, 6U high), can reach up to 24 directions |

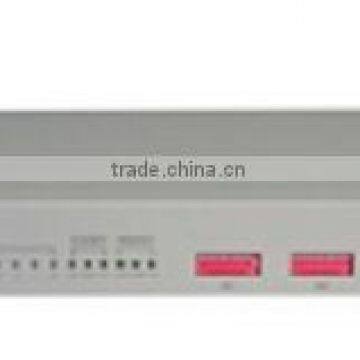

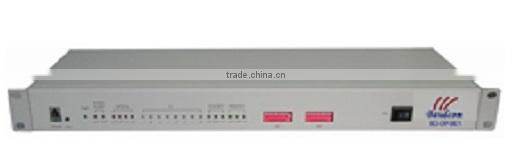

Fiber Optic Multiplexer Picture:
Application diagram

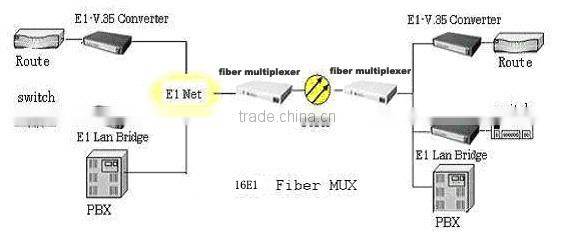

Application 1: Optical Multiplexer point to point

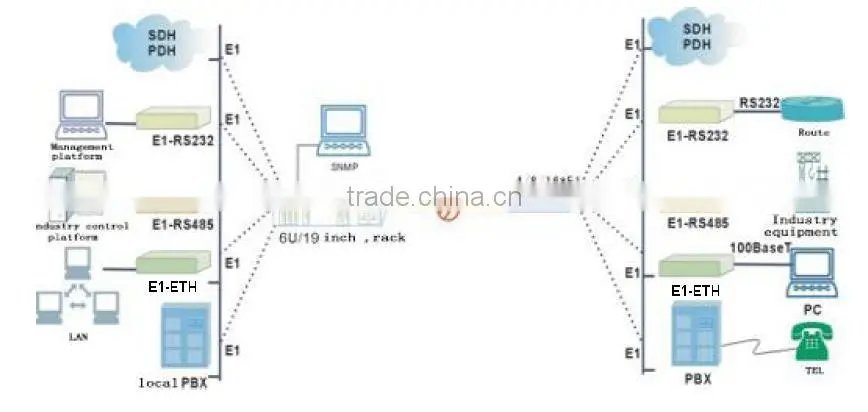

Application 2:Optical Multiplexer central SNMP managment
Order information
| BD-OP-8E1/M2 | 8E1 G.703 fiber multiplexer,75ohm or 120ohm for option, SC/ST for option, Multimode 2KM,AC or DC power built in |
| BD-OP-8E1/S20 | 8E1 G.703 fiber multiplexer,75ohm or 120ohm for option, SC/FC for option, dual fiber or WDM for option,singlemode 20KM,AC or DC power built in |
| BD-OP-8E1/S40 | 8E1 G.703 fiber multiplexer,75ohm or 120ohm for option, SC/FC for option, dual fiber or WDM for option,singlemode 40KM,AC or DC power built in |
| BD-OP-8E1/S60 | 8E1 G.703 fiber multiplexer,75ohm or 120ohm for option, SC/FC for option, dual fiber or WDM for option,singlemode 60KM,AC or DC power built in |
| BD-OP-8E1/S80 | 8E1 G.703 fiber multiplexer,75ohm or 120ohm for option, SC/FC for option, dual fiber or WDM for option,singlemode 80KM,AC or DC power built in |
| BD-OP-8E1/S100 | 8E1 G.703 fiber multiplexer,75ohm or 120ohm for option, SC/FC for option, dual fiber or WDM for option,singlemode 100KM,AC or DC power built in |
| BD-OP-8E1/S120 | 8E1 G.703 fiber multiplexer,75ohm or 120ohm for option, SC/FC for option, dual fiber or WDM for option,singlemode 120KM,AC or DC power built in |
