Product: 1 Channel Video over fiber Multiplexer
Highlight
The 1Channel Video Fiber Optical Transceiver can transmit one channel digital video,one channel high-fidelity audio,one channel asynchronous data (RS232/422/485) and one port 10/100M Ethernet data over one fiber efficiently
OVERVIEW
The 1ChannelVideo Fiber Optical Transceiver can simultaneously transmit one channels of 8-bit digitally encoded broadcast quality video / return or bidirectional data / unidirectional or bidirectional audio / Ethernet / Telephone / Dry contact over one multimode or single-mode optical fiber. These multiplexers are typically used in applications where the cameras have P/T/Z capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment

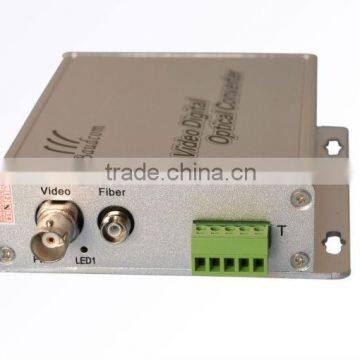

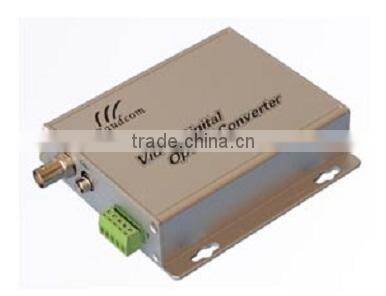

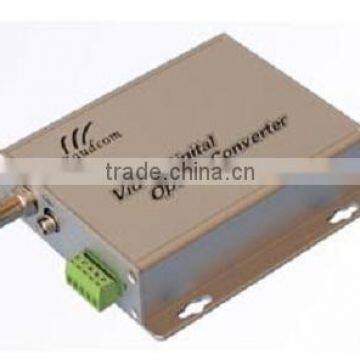

1 Channel Video over fiber Multiplexer picture:
Feature:
- technical design, the whole surface by decoration.
- electrical circuit is designed by hardware scheme (except chip), and production is not effected by purchasing.
- Complete digital fiber transmit platform.
- No need to adjust when opened.
- Based on self copyright IC.
- No disturbance by analog in adjusting channel, picture and range.
- 4 steps filtering
- Complete digital, broadcast transmit efficiently
- High speed 10/100M Ethernet channel.
- Full speed asynchronous date channel
- Elastic configuration on the same platform.
- Power supply, link, video by dynamic indication.
- Self-adapt in PAL,NTSC,SECAM.
- ASIC design
- Farthest transmit distance:100KM
- Power supply:220v,-48v,+24, +12v,+5(optional)
- The two poles of Direct power supply can be exchanged.
- Support SNMP management in our chassis installation.
- Three installations: wall method, rack in 19inches 1U, or plug in-card.
Applied field
Intelligent transportation system;
high speed way video monitoring and control system;
toll monitoring and control system;
close circuit TV industry monitoring and control;
TV program switching channel transmit;
high-fidelity video conference system;
security monitoring and control system.
Technical parameter:
Video interface 1/2/4/8/16 line
input/output impedance: BNC 75ohm unbalance interface
input/output voltage: peak 1 vpp, max 1.5 Vpp
Signal: PAL/NTSC/SECAM
Video bandwidth: 8MHZ
Video number wide: 8/10/12 bit
Differential gain: <1%
Differential phase: <0.6°
Slope: <0.5%
luminance delay inequality: 10ns
luminance gain gap: ±10%
Weighted noise ratio :66db
Date interface Physical interface: industry standard terminal lead
Work way: full duplex/half duplex
Interface type: RS-232/485/422,Manchester
RS232 rate: 0-115.2Kbps
RS-422/485 rate: 0-115.2Kbps
RS-422/485 transmit distance: 0-1200m
RS-422/485 agreement support RS-485/422 agreement
Error rate: <10-9
Fiber interface
Physical interface: FC/PC, ST/PC
Fiber type: single/multi module
Transmit distance: multi module with 0-2km,single module with 0-25km,0-60km,0-100km
Audio interface
audio input/output: impedance 600ohm balance/unbalance interface,industry standard terminal lead.
audio input/output level :2Vp-p
frequency response :10HZ-20KHZ
audio number width :24 bit
Weighted noise ratio: 80db
Total Harmonic Distortion :0.1%
Ethernet interface:
Physical interface: shielding RJ-45
support IEEE 802.3/802.3u/802.1q VLAN
work way : IEEE 802.3x full duplex and Back-Pressure half duplex flow control.
Work environment:
Work temperature: -30C~+75C
storage temperature: -45C~+85C
humidity : 0~95% without condensation
input voltage :220V, -48V, +24V, +12V, +5V optional
power <=5W (single terminal)
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
| BD-DV1P0000ST | 1channel video over fiber multiplexer, transmitter,single mode,20Km,dual fiber or WDM for option,AC220V |
| BD-DV1P0000SR | 1channel video over fiber multiplexer, receiver,single mode,20Km,dual fiber or WDM for option,AC220V |
| BD-DV1P1P00ST | 1channel video and 1channel audio over fiber multiplexer,transmitter,single mode,20Km,dual fiber or WDM for option,AC220V |
| BD-DV1P1P00SR | 1channel video and 1channel audio over fiber multiplexer,receiver,single mode,20Km,dual fiber or WDM for option,AC220V |
| BD-DV1P1P31ST | 1channel video+1channel positiver audio+1channel reverse RS485+1port ethernet over fiber multiplexer,transmitter,single mode,20Km,dual fiber or WDM for option,AC220V |
| BD-DV1P1P31SR | 1channel video+1channel positiver audio+1channel reverse RS485+1port ethernet over fiber multiplexer,receiver,single mode,20Km,dual fiber or WDM for option,AC220V |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
