Product: Single fiber V35 optical Multiplexer
V.35 fiber modem extends V.35 interface service over fiber. A pair of V.35 Fiber Modems provides n*64K(n=1-32) V.35 network "extension" between remote and locations .The BD-OP-V35 is designed to transmit/receive V.35 data over one string of fiber. The BD-OP-V35 allows transmission over Single-mode fiber with distances up to 120km. LED status indicators monitor the fiber and V.35 links. The Model BD-OP-V35 is available with either an AC or DC power supply and is supported by a wide range of applications and power supply environments.
Have two row of LED, one indicates local status, the other indicates remote status
The V.35 Rate is N*64K, N=1-32.
Have two clock way: V.35 master clock and V.35 slave clock
Have three Loop-Back Mode: Fiber interface Loop-Back (ANA), V.35 interface Loop-Back(DIG), command the remote modem V.35 interface Loop-back (REM)
Remote adjustment of velocity for the remote device will be available when the local setting into the master clock and the remote
set into slave clock
E1 fiber modem matching V.35 fiber by pair, one G.703/V35 interface conversion can be save out.
It has PBRS test function and could be used as a 2M error code device.
V.35 interface support hot-plug and can be connected with other DCE or DTE device
Product parameter
V.35 connector
Interface rate :N×64Kbps(N=1~32)
electric characteristics: according ITU-T V.35
connector: DB25
connect way: DCE
Adapting module power, voltage range can be wide, with strong anti-jamming function .. With good insulation, stable working status is available powerI: -48V type, input voltage: -36V~-72V powerII: 220V type, input voltage: 175V~250V power consume:<5W

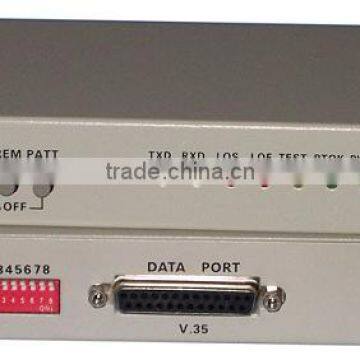

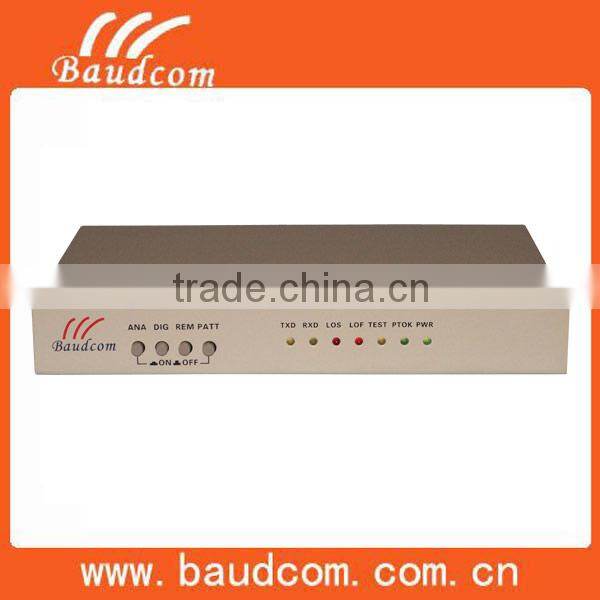

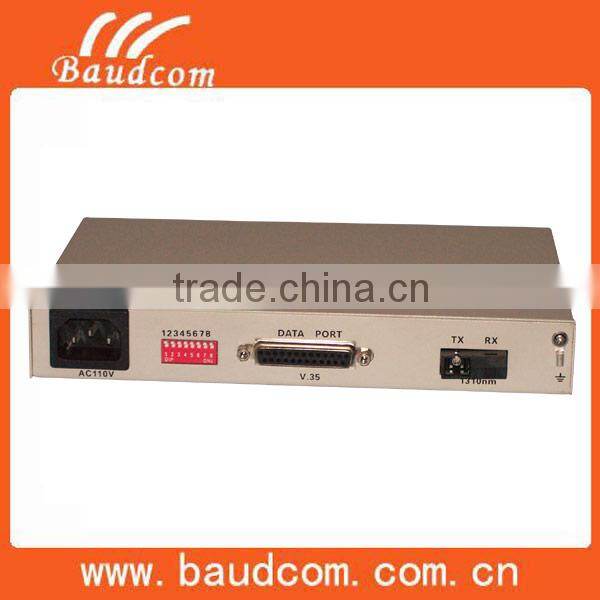

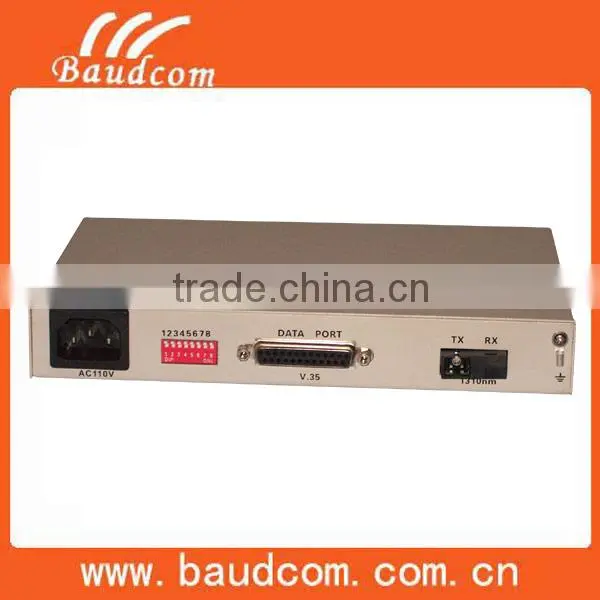

Single fiber V35 optical Multiplexer picture:
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
| BD-OP-V.35/AC | V.35 over Fiber optical modem,single mode,dual fiber,20km,power AC 220V |
| BD-OP-V.35/DC | V.35 over Fiber optical modem,single mode,dual fiber,20km,power DC 48V |
