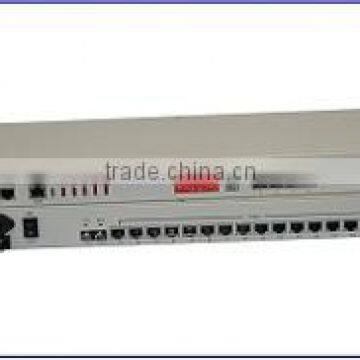

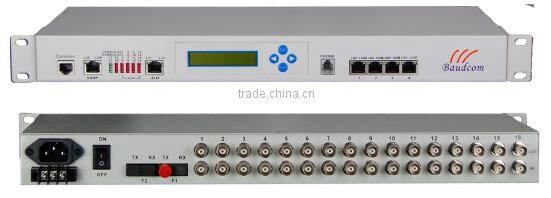

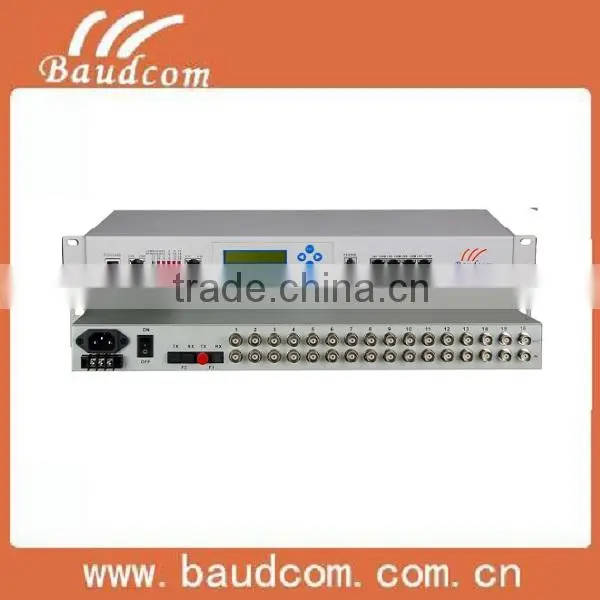

Product: 16E1 4Ethernet with LCD Management optical Multiplexer
The 16E1 optical fiber multiplexer is 16E1 point-to-point optical transmission equipement with LCD management, uses the FPGA chips and easy to upgrade. It is single board structure and its largest transmission capacity is 16E1, 4*100Mchannel Ethernet data and 2 AUX port which is for transmitting other data such as RS232/RS485/RS422.The fiber multiplxer’s ethernet port support VLAN. Can be configured VLAN TAG and do VLAN division.
The device provide LCD management and Console management and SNMP (Option) management. It is easily manged in Local or Remote location.
Features:
- Provides 16 E1 transparent transmission ;
- Support 1+1 Fiber uplink protection for option;

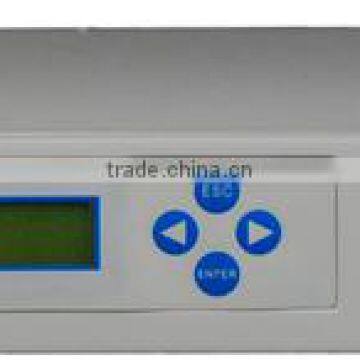

- With char 16*2 LCD display and SNMP agent inside.
- support ALS function(Automatic Laser Shutdown)
- Provide Console manage interface(RS232)
- Provide 4 100M line Ethernet channel,support mutual negatiate, Ethernet bandwidth is set on base on multiple of 32K.;
- Provice one hotline channel for option;

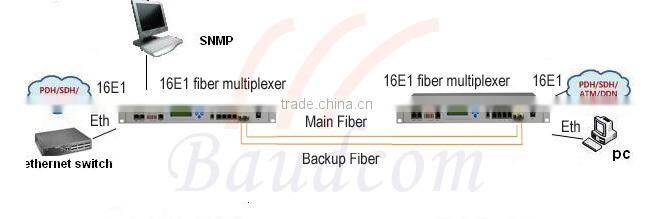

- Provide two fiber interfaces, one as master, the other as slave, insuring uninterrupted service transmission.
- The rate of optical port is 155Mbps, transmission range can reach 25KM, 40KM, 60KM, 80KM or 100KM;
- E1 interface code is HDB3,E1 vibration characteristic conforms to ITU-T G.703,G.823 and G.742;
- Ethernet port supports full/half duplex, 10M/100M auto-ataptable;
- Ethernet port supports VLAN function and has 4 division mode for user selection;
- Ethernet package size support 1916 byte and 4 Ethernet port could be set seperately;
- Has complete alarm function and can monitor remote device status;
- Supports E1 loop from remote so as to detect and manage device conveniently;
- The combination AC220V and DC-48V for redundant
Optical interface
Optical wavelength: 850nm/1310nm for multi- mode optical interface,
1310nm/1550nm for single-mode optic interface
Optical interface: SC/FC
Receiving and dispatching module: >-6dBm
Optical receiver receiving sensitivity <-36 (BER<10):
Dynamic range receiving: >-30dB
Transmitting range: Multi-mode 2 Km, single-mode 40Km, single-mode 60 Km, single-mode 120Km
Vibration characteristic: Satisfies G.742 and the G.823 standard
E1 interface
Interface code: HDB3 code
Line speed: 2.048Mbp/S 50ppm
Interface standard: ITU-T G 703
Interface impedance: 75ohm/unbalanced or 120ohm/ balanced
Interface characteristic: supports rack (19 inches, 6U high), can reach up to 24 directions
10/100M Base-T interface:
Interface rate:10/100Mbps
Interface characteristic: satisfies IEEE802.3, IEEE802.1Q
Connector: RJ45
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
| BD-OP-16E1-LCD | 16E1 G.703+4*10/100M ethernet fiber multiplexer with LCD management,75ohm or 120ohm for option, FC/SC/ST for option,SM 20KM,AC or DC power |
| BD-OP-16E1-LCD/SNMP | 16E1 G.703+4*10/100M ethernet fiber multiplexer with SNMP and LCD function management,75ohm or 120ohm for option,FC/SC/FC for option, single mode 20KM,dual fiber,AC or DC power |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field. Your any questions will be responsed within 12hours!
