360 POTS Phone Over Fiber Multiplexer Telecom Equipment

360 POTS Phone Over Fiber Multiplexer Telecom Equipment thumbnail-1
360 POTS Phone Over Fiber Multiplexer Telecom Equipment thumbnail-2
360 POTS Phone Over Fiber Multiplexer Telecom Equipment thumbnail-3
360 POTS Phone Over Fiber Multiplexer Telecom Equipment photo-1

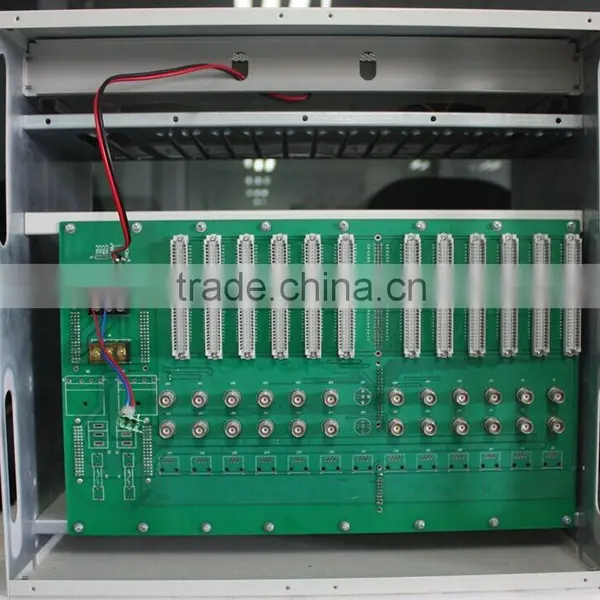

360 POTS Phone Over Fiber Multiplexer Telecom Equipment photo-2
360 POTS Phone Over Fiber Multiplexer Telecom Equipment photo-3
US$ 385 - 465 MOQ: 2 Units
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Baudcom- telecom equipment
Model Number:
BD-OP-MUX360/CH
Contact Supplier Request Quote Chat Now
Shanghai Baudcom Communication Device Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
telecom equipment be shipped from Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Baudcom- telecom equipment
Model Number BD-OP-MUX360/CH
Product: 360 POTS Phone over fiber Multiplexer telecom equipment



Functions:

360 voice fiber multiplexer  is a kind of point-to-point fiber transmission device. BAUDCOM designed 1~360POTS (FXO/FXS),it is a multi-service fiber multiplexer which can realize 360channel voice and 1~4 E1,1~4 Fast ethernet over fiber transmission. 360 voice fiber multiplexer is rack mount device and total 15 slots, 12slots for 30voice card and 1 slots for E1 and Ethernet card,2 slots for for power supply module.The device support SNMP management for option.

 Feature:
      19 inch rackmout ,9U high chassis and  easy for installation;
      Can control the remote alarm status for option;
       Ethernet is 10M/100M,full/half duplex adaptive, support VLAN£;(optional)
       Network management (optional);
       ETH support Auto-MDIX;
       1-360 lines phone, support call indication;
      Support each site puts the number to each other;
      Audio ports support FXO and FXS,FXO connected with switches,FXS with users' phone;
     Can distinguish the opposite device is shut down or fiber not connected well (optional);
     User can become conscious of the temperature and voltage of the local device Network management function
     User can also become conscious of the temperature and voltage of the remote device , and can set the alarm threshold of the remote device  temperature(optional);
     Support power backup,make sure complete working funciton.



Optical interface
Optical wavelength: single mode 1310nm/1550nm
Fiber: single fiber or double fiber for option
Transmitting consumption: -9dBm/-5dBm
Transmission range: 0-50Km/120Km for option
Optical interface: SC/FC
Receiving and dispatching module: >-6dBm
Optical receiver receiving sensitivity <-36 dBm (BER<10-11)
Fiber circuit code: NRZ code

10/100Base-T Interface
Rate: 10/100M, full/duplex auto-negotiation
Protocol: Support IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Entiries: 4096 Entiries
Total Memory Sizes: 64MBits SDRAM
Physical interface: RJ45, support AUTO-MDIX



FXS:
Alarm voltage:     75V
Alarmf requency:    25HZ
2 line input impedance:  600ohm (hanging off)
Wastage:         40db

FXO:
Alarm detecting voltage:  35V
Alarm detecting frequency: 17HZ-60HZ
2 line input impedance:    600ohm (hanging off)
Wastage:               40db

E1 Interface
Interface standard: Conforms to G.703 standard
Interface rate: N=64Kbps, N:1~32
Vibration characteristic: Satisfies G.742 and G.823 standard
Transmission capacity: 1*E1
Clock type: internal-clock, route clock
Connecter: BNC (75 ohm¸), RJ45 (120 ohm¸)
Interface impedance: 75ohm (non- balanced), 120ohm (balanced)



Power supply
working voltage range wide, good
anti-disturb and Isolation, work stable
option I  DC-48V,range DC-36V~DC-72C
option II  AC220V,range AC165V~AC240V
Power Consumption:      <=3 Watts

environment condition
Operating temperature:  0C~+50 C
Storage temperature:   -20 C~+70 C
Relative temperature:95% (uncondensed)

Dimension(19inch rackmount)
       482mm(L)
       275mm(W)
       385mm(H)

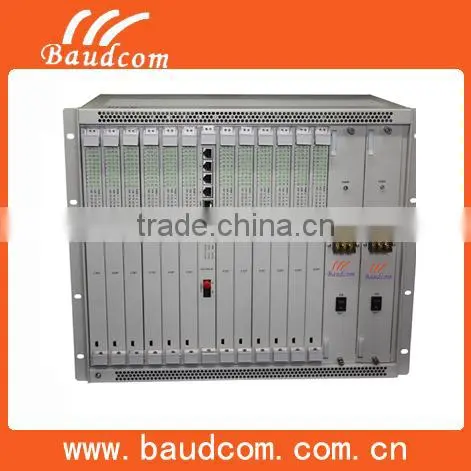

360 pots FXO FXS voice fiber multiplexer  picture  :

360 POTS Phone over fiber Multiplexer telecom equipment

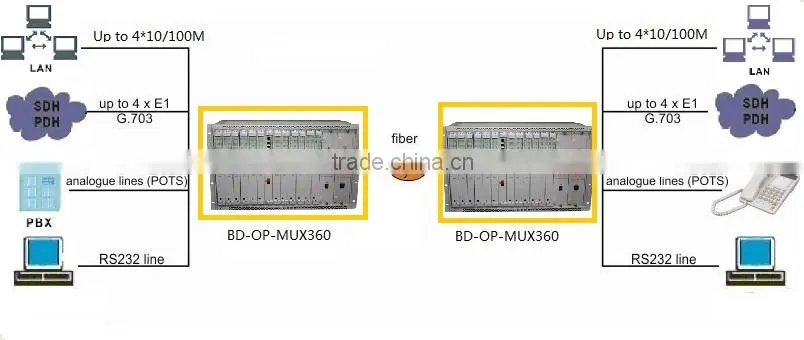

application:


360 POTS Phone over fiber Multiplexer telecom equipment

360 voice fiber multiplexer Ordering information
BD-OP-MUX360/CH 19inch rackmount ,9U high chassis
BD-OP-MUX360/P/DC DC power module,comply with BD-OP-MUX360/CH
BD-OP-MUX360/P/AC AC power module,comply with BD-OP-MUX360/CH
BD-OP-MUX360/30FXO 12 channel FXO module,comply with BD-OP-MUX360/CH
BD-OP-MUX360/30FXS 30 channel FXS module,comply with BD-OP-MUX360/CH
BD-OP-MUX360/4E1/4ETH 4E1+4ethernet module,SC/FC, SM20km,comply with BD-OP-MUX360/CH



 360 POTS Phone over fiber Multiplexer telecom equipment

360 POTS Phone over fiber Multiplexer telecom equipment
