Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > e1 to Fiber Converter

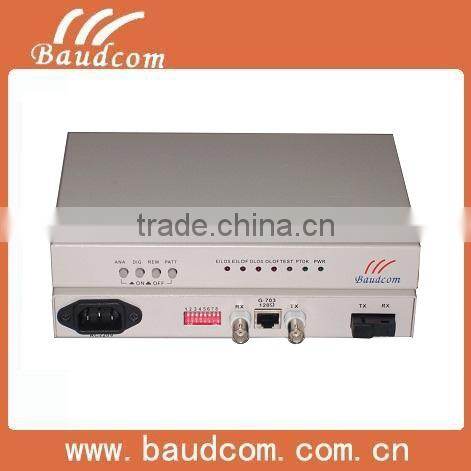

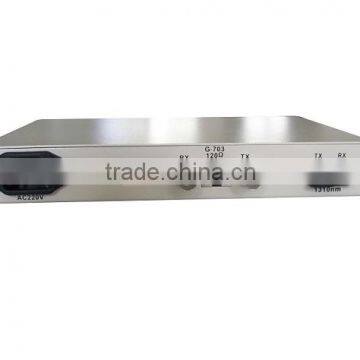

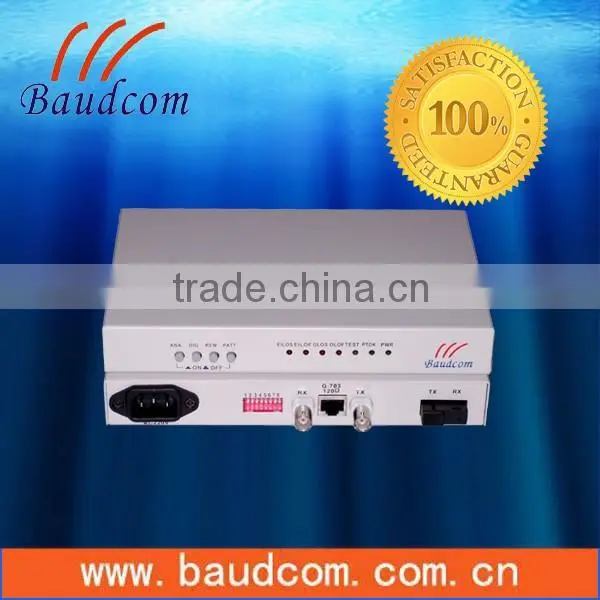

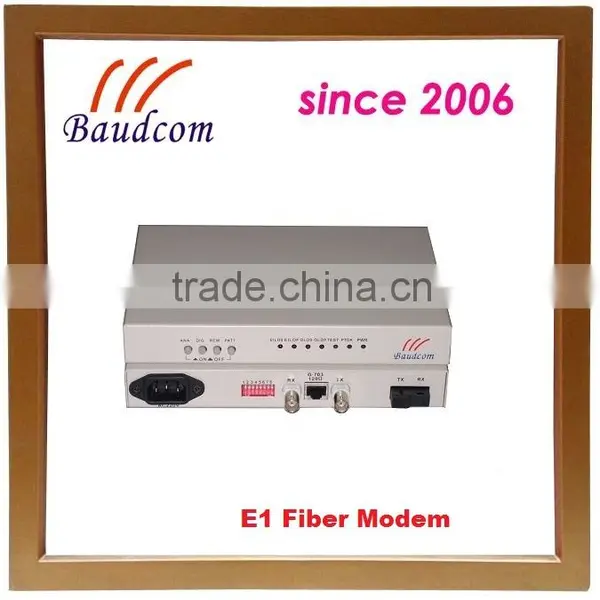

e1 to Fiber Converter

Name: e1 to Fiber Converter
Brand: Baudcom
SKU: 100396455
Availability: InStock

US$ 49 - 84 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Baudcom

Model Number:

BD-OP-E1

Contact Supplier Request Quote Chat Now

Shanghai Baudcom Communication Device Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

e1 to fiber converter will ship from shanghai ningbo or any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Baudcom

Model Number BD-OP-E1

Overview

The e1 to fiber converter is to modulate framing (N*64Kbps) to single or multi-mode fiber. E1 time-slot, wavelength of ordinary fiber, and type of interface is configurable. Suit for transmit additional management data channel in different fibers.The fiber for transmit data can be used to monitor and control local and remote devices, and no collision will occur. It can also be used pair with V.35 fiber modem.

Products specification

E1 interface match G.703
a. Rate:	2.048Mbps
b. Code:	HDB3
c. E1 Impedance:	75ohm (unbalance) and 120ohm(balance).
Unbalance match with coaxial adapter, can match 75-2 coaxial wire. Balance match with balance adapter, can connect with twisted-pair wire.
d. Interface character: match G.703. e. Connector: f. Jitter tolerance: g. Clock:	match G.703. BNC(75ohm), RJ45(120ohm). fine than G.742 and G.823. synchronize input E1 signal.
Fiber connector
Optical interface:	SC/FC
Optical Wavelenth:	FP1310 nm /DFB1550nm+/-50/40nm
Sending consumption:	-9dBm/-5dBm
Receiving and dispatching module:	>-6dBm
Optical receiver receiving sensitivity:	<-36 (BER<10 -10):
Dynamic range receiving:	>-30dB
Optical code:	NRZ
Single mode :	9/125 um
Transmitting range:	SM 20Km, SM

Power supply

Use module power supply as following for option, working voltage range wide, good anti-disturb and isolation, work stable.
DC-48V: voltage range -36V~-72V
AC220V: voltage range 175V~265V

Operate temperature: 0C~50C

Relative humidity: 95% (no condensation)
No causticity and impregnant gas, no rising dust, and no strong magnetic field disturbing.

ORDER INFORMATION

BD-OP-E1/AC220V E1 fiber modem,sigle fiber 20km,power AC 220V
BD-OP-E1/DC-48V E1 fiber optic modem,sigle fiber 20km,power DC 48V

e1 to fiber converter

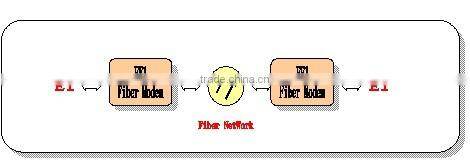

Application diagram
