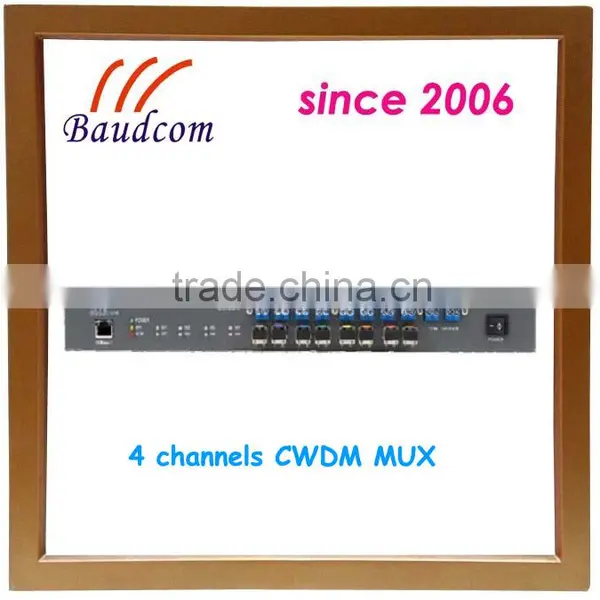

CWDM /BD-CWDM-04 4 channel CWDM MUX system is a sort of multi-service processing and transmission device that designed especially for point-to-point applications.
Product function:
CWDM is a sort of multi-service processing and transmission device that designed especially for point-to-point applications. It provides interfaces such as ATM, Gigabit Ethernet, STM-1/4/16 and OC-3/12/48 on the basis of a transparent transmission platform constructed by virtual fiber-optic capability enhancing devices, which can fulfill upstream/downstream transmission services at various speed including 100/155/200/622/1000/1250/2500M, and entirely increase the performance/price ratio of the optical network platform.

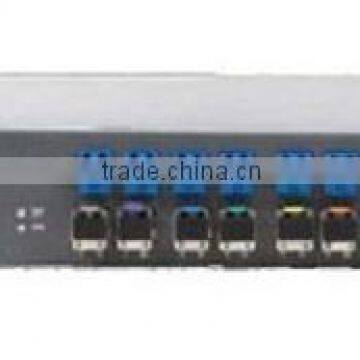

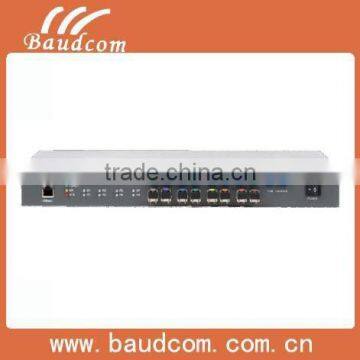

CWDM adopts a box structure of 19" rack, of height 1U and depth 180 mm. The product can be mounted on the standard 19" rack, with the front panel providing optical interfaces for channels and lines, working and alarm indicators, 10/100M auto-negotiating network management interfaces, RS232 network management commissioning interface etc., and the rear panel providing AC 220V / DC -48V power supply socket interfaces and power switches etc.
System Interface:
| Maximum capability | 4 wavelengths (10Gbps) |
| Range of wavelength | Comply with ITU-T?G694.2 standard |
| Type of service access | PDH/FICON/ESCON/FIBER Channel STM-16/STM-4/STM-1 OC-48/OC-12/OC-3 Gigabit Ethernet 45Mb/s-2.5Gb/s auto-negotiating interface |
| Applied network nodes | OTM |
| Supported network topology | Point-to-point |
| Network Management interface (Optional) | SNMP MIB or Telnet interface |
| Fiber quantity | Single fiber 4 wavelengths; dual fiber for expanding to 8 wavelengths |
Optical interface:
| Transmission central wavelength | 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm or 1610nm |
| Interchannel clearance | 20nm |
| Width of optical band pass | +/- 6 nm |
| Temperature drift of central wavelength | 0.08nm~0.1nm |
| Transmission distance | 30km, 50km or 80km, optional |
Power supply | |
working voltage range wide, good | |
environment condition | |
Operating temperature |
0C~+50 C |
Storage temperature |
-20 C~+70 C |
Relative temperature |
95% (uncondensed) |
Dimention |
1U standard 19" rack |
8channel CWDM MUX system

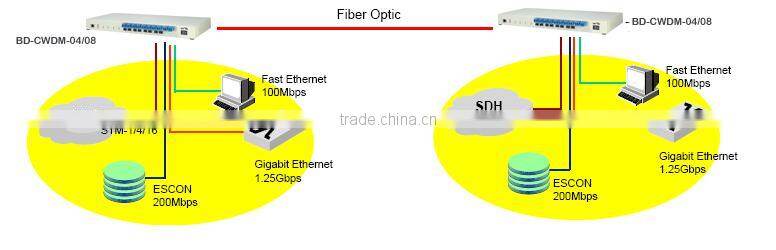

Application diagram
Package and shipping:
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
