Product: Dual fiber 20km 8E1 and 4 1000M ethernet multiplexer
Overview:
BD-OP-8E1-4GE is the 8E1 point-to-point optical transport equipment that uses the FPGA chips and it is easy to upgrade. It is single board structure and the largest transmission capacity is 8E1 and 4*10/100*1000M Ethernet data.The outer design use the standard 19 inches rack, so the volume is small, weight is light and operation is convenient and credit.
Feature:
- Provides 8 E1 transparent transmission ;
- Provide 1~4 channel 10/100*1000M Ethernet ,4 Ethernet support VLAN isolation for option
- The rate of optical port is 1.25G, transmission
- E1 interface code is HDB3,E1 vibration characteristic conforms to ITU-T G.703,G.823 and G.742;
- Ethernet port supports full/half duplex, 10M/100/1000M auto-ataptable;
- Has complete alarm function for device status;
- Supports E1 loop from remote so as to detect and manage device conveniently;
- he combination AC220V and DC-48V for redundant for option
Specification:
1.25G Optical interface
Optical wavelength: 850nm/1310nm for multi-mode optical interface,
1310nm/1550nm for single-mode optical interface
Optical interface: SC/FC
Receiving and dispatching module: >-6dBm
Optical receiver receiving sensitivity: <-36dBm
Dynamic range receiving: >-30dB
Transmitting range: Multi-mode 2 Km, single-mode 40Km, single-mode 60 Km, single-mode 120Km
Vibration characteristic: Satisfies G.742 and the G.823 standard
E1 interface
Interface code: HDB3 code
Line speed: 2.048Mbp/S 50ppm
Interface standard: ITU-T G 703
Interface impedance: 75ohm/unbalanced or 120ohm/ balanced
Gigabit Ethernet Interface:
Interface rate:10/100/1000Mbps
Port number:4 UTP
Interface characteristic: IEEE802.3, IEEE802.1Q
Connector: RJ45
Mechanical Specifications | |
Rack Mounting |
Standard 19-inch DIN rack |
Dimension |
19inch 1 U: 433mm(L)*138mm(D)*44mm(H) |
Management | |
SNMP central management via chassis for option, pls notisfy when order | |
Power Supply | |
Input AC/DC voltage |
-48V DC ( nominal ) / AC also available |
Range of input |
-36V to -72V DC /90V~260VAC |
Temperature |
0 centi degree to 55 centi degree |
Humidity |
95% RH (non-condensing) |
Cooling |
Convection Cooling |
Application:

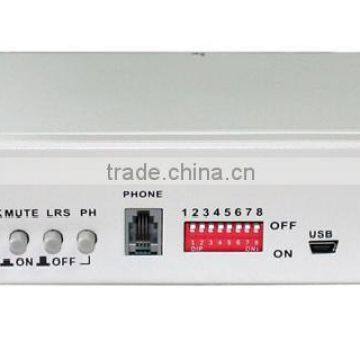

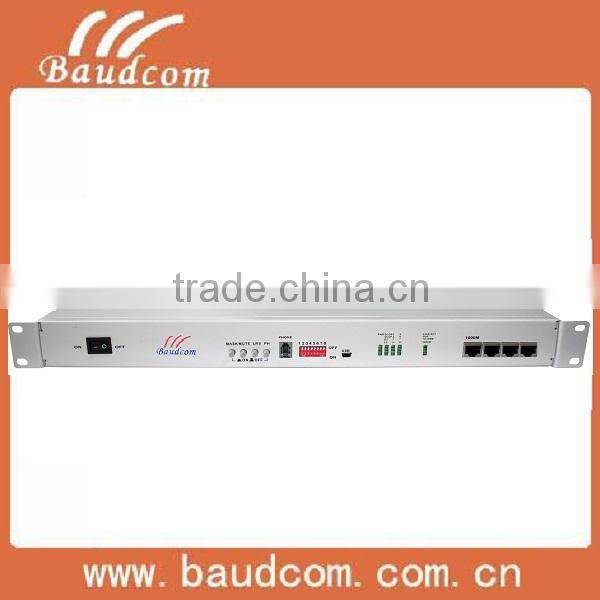

1000M ethernet multiplexer picture:
Ordering information:
| BD-OP-8E1-4GE/AC | 8E1+4*10/100/1000M PDH fiber multiplexer,AC120 or AC220V | Request price |
| BD-OP-8E1-4GE/DC | 8E1+4*Gigabit fiber multiplexer,E1 75ohm or 120ohm,10/100/1000M Gigabit ethernet,PDH fiber multiplexer,DC-48V | Request price |
| BD-OP-8E1-4GE/AC+DC | 8E1 PDH fiber multiplexer,8E1,4*10/100/1000M Gigabit ethernet,double power,AC120V+DC-48V | Request price |
FAQ
1.How can i get an Ethernet converter sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping for Ethernet converter ?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging & Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
Factory production
Product testing
After-Sales Service
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
