2E1 TDM Over IP Converter/Multiplexer E1 Over IP/Ethernet Converter

2E1 TDM Over IP Converter/Multiplexer E1 Over IP/Ethernet Converter photo-1

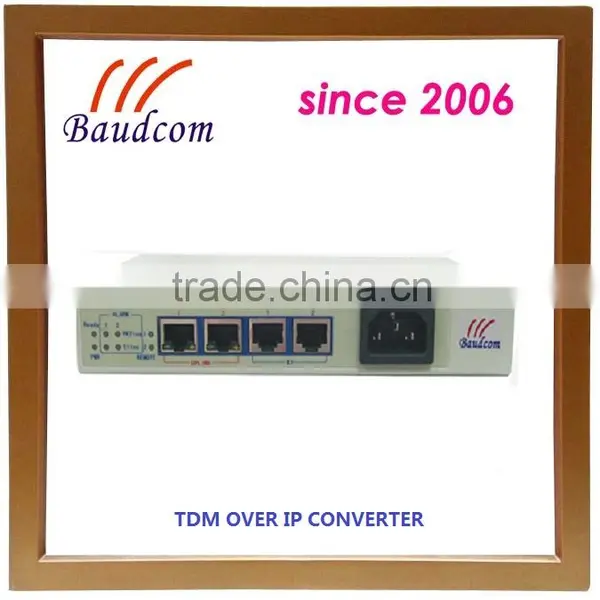

2E1 TDM Over IP Converter/Multiplexer E1 Over IP/Ethernet Converter photo-2
2E1 TDM Over IP Converter/Multiplexer E1 Over IP/Ethernet Converter photo-3
US$ 315 - 378 MOQ: 2 Units
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BAUDCOM - ethernert converter
Model Number:
BD-2E1-IP
Payment & Shipping
Payment Methods:
Port of Shipment:
ethernert converter will ship from shanghai ningbo or any port in China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name BAUDCOM - ethernert converter
Model Number BD-2E1-IP

Product: 2E1 TDM over IP Converter/Multiplexer E1 Over IP/Ethernet Converter



Overview:

    As a cost effective solution for the traditional telecom services migrate to the IP packet networking technology, the TDM over IP Multiplexer adopts the innovative TDM over IP technology, it transports the legacy E1 data through the existing Ethernet or IP network.
   The TDM over IP Multiplexer can support E1 or T1 protocol,can used as E1 over ethernet converter or T1 over ethernet converter.
   TDM over IP Multiplexer is the new generation of the TDM over IP equipment with IP circuit emulation that supports transportation of E1 over Ethernet or IP network. The uplink ports are IEEE 802.3 compliant, 10/100BaseT auto-sensed Ethernet port.
    The state-of-the-art design provides the highest availability with the accurate timing signal and data bit stream reconstruction. Predefined system parameter profiles that according to different application requirement; ultimately simplify the installation process and saving the maintenance cost.
    Telecom and Enterprise users can save a lot of access and equipement costs and generates new revenue by offering different types of service over existing Ethernet networks. It is also suitable for connecting to the wireless equipment to achieve fast deployment of E1 services. One particular application is to build E1 links with low cost Wireless LAN bridges, replacing much more costly microwave radios. Operators can use BD-2E1-IP to provide legacy TDM services over wired or wireless packet network.

Features:
1. Support IETF RFC4553 SAToP protocol, Ethernet encapsulation support IP/UDP.
2. Support POE power unit embedded, support maximum 60W power over Ethernet.(optional)
3. User-friendly Web server supported for easy setup and maintenance
4. Point to point application and point to multipoint application are supported
5. E1/T1 Port supported, E1 or T1 easy selected by Web Manager
6. Uplink ports 1+1 backup supported
7. Stable E1/T1 clock recovery, low jitter and wander
8. Low processing delay for E1/T1 channels, high bandwidth usage efficiency
9. Resist to packet loss, with PCM frame synchronization protection
10. User definable encapsulation packet size for different application
11. Enough jitter buffer to resist packet delay variation (PDV)
12. Local Ethernet port throughput limiting, assuring E1/T1 QoS
13. Local and remote E1/T1 LOS and AIS and packet loss indication for trouble-shooting and maintenance
14. Support cascade concatenate for more than E1/T1 port
15. Support double power or single power supplier.

16. Ethernet built-in layer 2 switch, support VLAN(port based, 802.1Q based and QinQ based), QoS(port based,8021.1P based,MAC based and TOS based).

17.  Ethernet support IEEE 802.3x, RSTP (802.1w), LLDP, Ethernet ring protection, OAM and MAC address automatic learning.

18. Ethernet packet size up to 9720byte



Technical Specifications:

Item Description
Model BD-2E1-IP 2 Uplink (1+1), E1/T1
Interfaces Uplink
2 Uplink Ports
Comply with IEEE 802.3
Speed and duplex auto-negotiation or manual
Web Manager Supported
E1 Port
2 E1 Ports Comply with G.703
Impedance: E1-120Ω/T1-100Ω or 75Ω
Power



Supply

A: DC-48V(-36V~-72V)

B: AC-220V(100V~260V)

Consumption ≤3W
Working
Environment

Temperature 0~ 50°C
Relative humidity ≤90% (non-condensing)
Dimension W x H x D (mm) 185x35x136.5



TDM over IP Multiplexer Picture:

2E1 TDM over IP Converter/Multiplexer E1 Over IP/Ethernet Converter

TDM over IP Multiplexer

Application1:Point to Point Application

     two units E1 TDM over IP work with voice device (PBX,PCM) and ethernet device (switch or router),transmitting voice and ethernet data over ethernet network.

2E1 TDM over IP Converter/Multiplexer E1 Over IP/Ethernet Converter



Application2: Point to Point Application

   E1 TDM over IP work with Voice over E1 converter,transmitting voice and ethernet data over ethernet network.

2E1 TDM over IP Converter/Multiplexer E1 Over IP/Ethernet Converter







Application3: Point to multipoint Application

     16units E1 TDM over IP work with 16E1 TDM over IP or E1/4E1/8E1 TDM over IP work with 16E1 TDM over IP.



 2E1 TDM over IP Converter/Multiplexer E1 Over IP/Ethernet Converter





2E1 TDM over IP Converter/Multiplexer E1 Over IP/Ethernet Converter

2E1 TDM over IP Converter/Multiplexer E1 Over IP/Ethernet Converter
