16Port Serial RS232 RS485 Ethernet Converter
US$ 600 - 900
MOQ: 2 Units
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BAUDCOM - Serial RS485 Ethernet Converter
Model Number:
BD-16RS232-ETH
Payment & Shipping
Payment Methods:
Port of Shipment:
Serial RS485 Ethernet Converter will ship from shanghai ningbo or any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional Manufacturer 4FE Port EOC SlaveUS$ 80 - 120MOQ: 1 Unit -
Baudcom Ethernet Over G 703 Converter Made in ChinaUS$ 37.5 - 55MOQ: 2 Units
-
2E1 TDM Over IP Converter/Multiplexer E1 Over IP/Ethernet ConverterUS$ 315 - 378MOQ: 2 Units
-
China Hot Selling Ethernet to E1 Protocol Interface ConverterUS$ 37.5 - 55MOQ: 2 Units
-
G.703 to 10/100M Base-T Ethernet ConverterUS$ 37.5 - 55MOQ: 2 Units
Place of Origin
Shanghai, China
Brand Name
BAUDCOM - Serial RS485 Ethernet Converter
Model Number
BD-16RS232-ETH
Product: 16Port Serial RS232 RS485 Ethernet Converter
Overview:
The Serial RS485 Ethernet Converter is the best choice for simple serial to Ethernet connectivity applications. Delivering a cost effective solution in a compact size, the serial server offers flexibility making it ideal for applications that require an authentic serial connection across an Ethernet network.
The Serial RS485 Ethernet Converter can connect 16/32/48 port serial devices to an Ethernet/IP network, It support RS232/RS485 Serial Standards, It can be widely applied in different fields for such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. The Serial RS232 Ethernet Converter servers are ultra-lean, ruggedized, and user friendly, making simple and reliable serial to Ethernet solutions possible.
Features:
1. 4KV/2KA enhanced surge protection for serial ports
2. Built-in 15 KV ESD protection for all serial signals
3. Web-based configuration
4. Support TCP server/ TCP client/UDP/Virtual COM Socket modes
5. It has a compact structure, adopting high-performance processor and high-capacity memory;
6. Device Manager software for centralized management and control;
7. WEB browser for remote setup of the equipment;
8. It can support 8channel RS232 or RS485
9. Ethernet supports 10M/100M, full-duplex / half-duplex and adaptive modes;
10. Can choose WIFI or 3G for transmission
Technology Specification:
| Ethernet Interface | Rate | 10/100Mbps |
| Full/duplex auto-negotiation | ||
| Protocol | Support IEEE 802.3 | |
| RJ45 connector | ||
| Magnetic Isolation Protection | 1.5 KV built-in | |
|
Serial Interface |
Software and hardware flow control | |
| Terminal Block (3 pins per port) | ||
| TX and RX activity indicators | ||
| SD Interface | Mini SD | |
| Wireless Interface | Standards: TD-SCDMA/HSUPA/HSDPA/GSM/GPRS/EDGE | |
|
Serial Line Protection |
15 KV ESD protection for all signals | |
| Pull High/Low Resistor for RS-485:10K Serial Communication Parameters | ||
| Data Bits | 5,6,7,8 | |
| Stop Bits | 1,2 | |
| Parity | None, Even, Odd, Space, Mark | |
| Baudrate | 110 bps to 460.8 Kbps | |
| Serial Signals | RS-232 | TxD, RxD,GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND | |
| RS-485-2w | Data+, Data-, GND | |
| Software | Network Protocols | ICMP, IP, TCP, UDP, HTTP, ARP |
| Configuration Options | Built-in WEB server | |
| Windows Virtual COM Drivers | Windows 2000/XP/2003/Vista/2008/7 | |
| Dimensions | 183 x 88 x 30mm | |
| Enviornmental Limits | Operating Temperature | 0 to 50°C |
| Storage Temperature | -40 to 85°C | |
| Ambient Relative Humidity | 95% (non-condensing) | |
| Power Requirements | Input Voltage | 5 VDC, -48VDC, 110VAC and 220VAC |
| Power Consumption | <5 watts | |

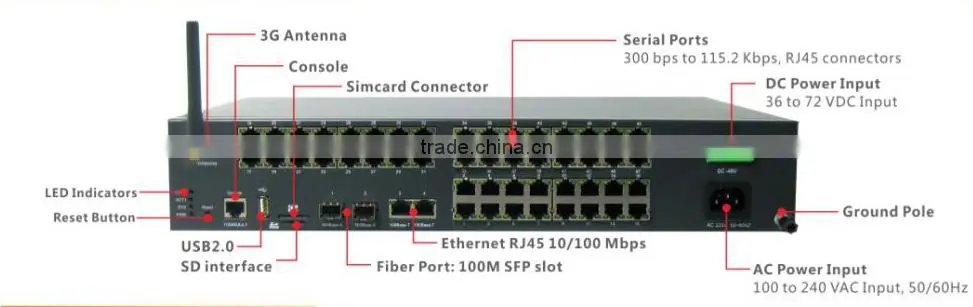

Serial RS485 Ethernet Converter picture:
Serial RS485 Ethernet Converter Application Diagram:
