China Baudcom BD-8E1-ETH 8E1 to Ethernet Converter
US$ 90 - 145
MOQ: 2 Units
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Baudcom - 8E1 to Ethernet Converter
Model Number:
BD-8E1-ETH
Payment & Shipping
Payment Methods:
Port of Shipment:
8E1 to Ethernet Converter will ship from shanghai ningbo or any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Baudcom Ethernet Over Coax (EOC) SlaveUS$ 80 - 120MOQ: 1 Unit -
China 8Channel Serial RS232 Ethernet ConverterUS$ 104 - 180MOQ: 2 Units
-
China Baudcom BNC to IP ConverterUS$ 315 - 378MOQ: 2 Units
-
2port RS232 Serial to Ethernet Converter(BD-2RS232-ETH)US$ 35 - 48MOQ: 2 Units
-
BD-2RS232-ETH 2ports Serial to Ethernet ConverterUS$ 35 - 48MOQ: 2 Units
Place of Origin
Shanghai, China
Brand Name
Baudcom - 8E1 to Ethernet Converter
Model Number
BD-8E1-ETH
Product: China Baudcom BD-8E1-ETH 8E1 to Ethernet Converter
Overview:
The E1 Converter used back multiplexing technology, transfer 10M/100M Ethernet data by using multi E1 channels. Realize convert between 1 to 8 E1 channels and Ethernet interface. It can transmit signal of E1 channel to RJ45 interface point to point, realize the connection of E1 channel and Ethernet. It different from normal bridge , supporting 1 to 8 E1 channels customized configuration, auto detecting the number of E1 channels and use the available E1, allow some limiting transfer delay between different E1 channels. Single line speed is 1968Kbits/s, 8 channels can up to 15744Kbits/s. it can connect with Ethernet switch or hub when in 10/100Mbps full/half duplex mode, make use of mass E1 resource in telecommunication networks to expend the transfer distance and application field of Ethernet, is a suitable solution for broadband switch in of Ethernet. E1 Converter can used in fields such as connecting LANs, connecting end offices, VOD, remote monitor, E1 interface of switches, etc.
Features:
- Realizing the transparent transmission of Ethernet data via 1 to 8 E1 lines
- Providing 10/100Base-Tx&100Base-Fx interface in compliance with the protocol
- standard IEEE 802.3, providing 2 electronical Ethernet ports and one optical Ethernet port
- supporting the working mode of either full duplex or half-duplex.
- Able to transparently transmit the ultra-long frames (up to 1916 bytes) as defined in IEEE 802.1Q, supporting transparent transmission of VLAN frames.
- Providing an in-built dynamic Ethernet MAC address list (1024 addresses) with filtering function for local data frames.
- 128MBits large capacity cache memory and an in-built SDRAM controller, to adapt to various service requirements.
- E1 interface in compliance with ITU-T G.703, G.704 and G.823, not applicable for signaling time slot.
- E1 Support 75Ω/unbalance impedance or 120Ω/balance for order
- Allowing a clock drift up to 512UI in the transmission system, with significantly enhanced reliability.
- Providing availability detection and automatic troubleshooting for 1 to 8 E lines.
- Supporting E1 interface loop-back function and Ethernet loop-back function.
- Self-contained line alarm indication and output.
- Optional power supply, e.g. AC220V or DC-48V; optional mounting type, e.g. desktop or rack mounted.
- Power consumption: <10 W
Specification:
| E1 Interface | Line Rate | 2.048Mbps±50ppm |
| Line Code | HDB3 | |
| Interface Standard | ITU-T G.703 | |
| E1 Impedance | 75Ω(unbalance) or 120Ω(balance) | |
| Connections | 75ohm DB37 adaptor or 120-ohm twisted-pair (RJ45) | |
| Jitter tolerance | Finer than G.742 and G.823 | |
| 10/100Base-T Interface | Ports | 2*10/100Base-Tx and 1*100Base-Fx ports |
| Rate | 10/100M, full/duplex auto-negotiation | |
| Protocol | Support IEEE 802.3,IEEE 802.1Q (VLAN) | |
| Total Memory Sizes | 64MBits SDRAM | |
| Physical Interface | RJ45, support AUTO-MDIX | |
| Power Supply |
working voltage range wide, good, anti-disturb and Isolation, work stable
|
|
| Option I | DC-48V,range DC-36V~DC-72C | |
| Option II | AC220V,range AC165V~AC240V | |
| Power Consumption | <=10 Watts | |
| Environment Condition | Operating temperature | 0 C~+50 C |
| Storage temperature | -20 C~+70 C | |
| Relative temperature | 95% (uncondensed) | |
| Dimension | 440mm(L)X202mm(W)X43.5mm(H) | |

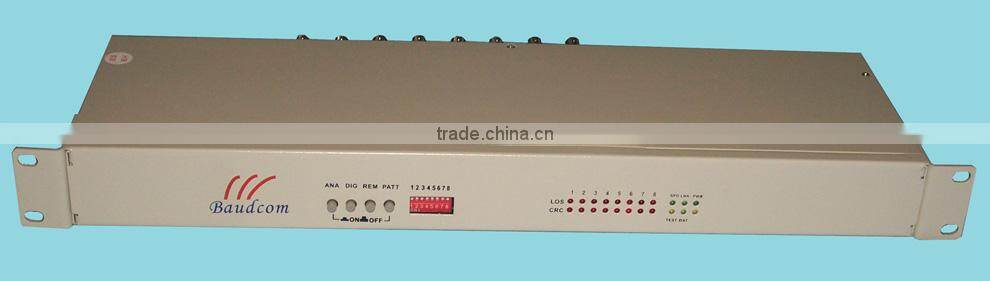

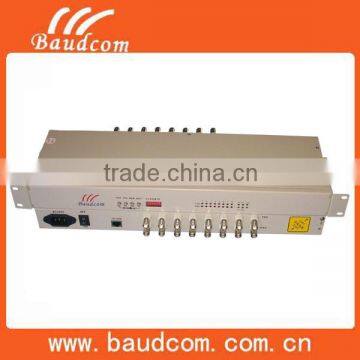

E1 Converter Picture:

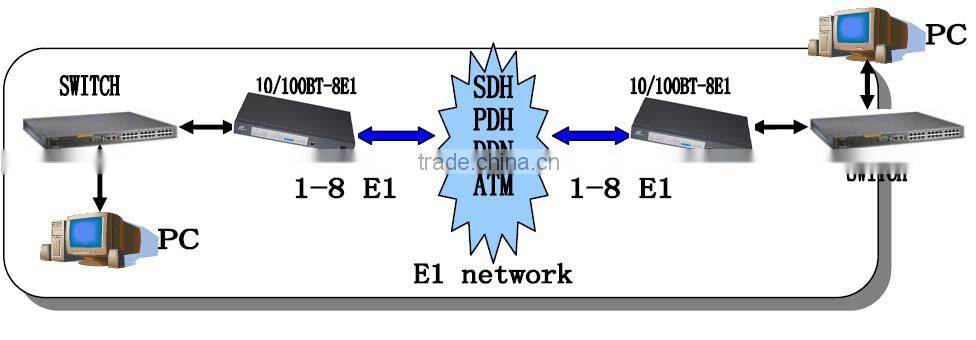

E1 Converter Application Diagram:
