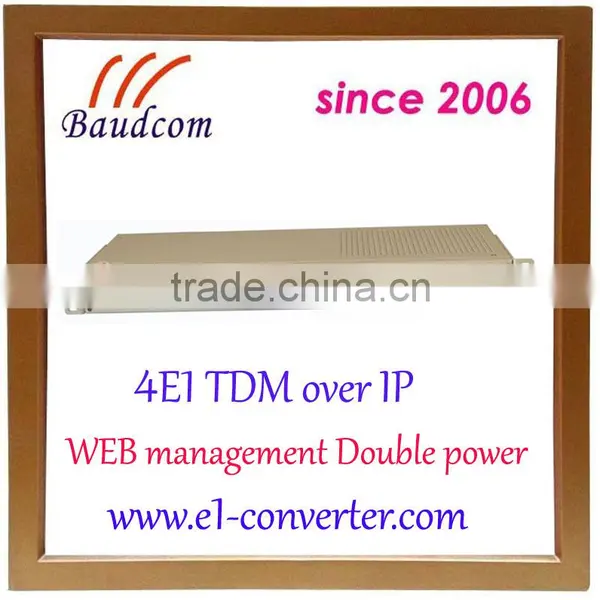

Product: 4 E1 over Ethernet TDM over IP Converter
Our advantage:Warranty is 3 years with good quality/Low MOQ:1Piece/Low price/OEM or ODM accepted.
As a cost effective solution for the traditional telecom services migrate to the IP packet networking technology, 4 E1 over Ethernet TDM over IP Converter adopts the innovative TDM over IP technology, it transports the legacy E1/T1 data through the existing Ethernet or IP network.
The 4 E1 over Ethernet TDM over IP Converter is the new generation of the TDM over IP equipment with IP circuit emulation that supports transportation of four E1/T1 and two local Ethernet ports over Ethernet or IP network. The uplink ports and user data ports are IEEE 802.3 compliant, 10/100BaseT auto-sensed Ethernet port.
The state-of-the-art design provides the highest availability with the accurate timing signal and data bit stream reconstruction. Predefined system parameter profiles that according to different application requirement; ultimately simplify the installation process and saving the maintenance cost.
Telecom and Enterprise users can save a lot of access and equipment costs and generates new revenue by offering different types of service over existing Ethernet networks. It is also suitable for connecting to the wireless equipment to achieve fast deployment of E1/T1 services. One particular application is to build E1/T1 links with low cost Wireless LAN bridges, replacing much more costly microwave radios. Operators can use BD-4E1-IP to provide legacy TDM services over wired or wireless packet network.
1. User-friendly Web server supported for easy setup and maintenance
2. Point to point and point to multipoint supported
3. Four E1/T1 Ports supported, E1 or T1 easy selected by Web Manager
4. Uplink ports 1+1 backup supported
5. Stable E1/T1 clock recovery, low jitter and wander
6. Low processing delay for E1/T1 channels, high bandwidth usage efficiency
7. Resist to packet loss, with PCM frame synchronization protection
8. User definable encapsulation packet size for different application
9. Enough jitter buffer to resist packet delay variation (PDV)
10. Local Ethernet port throughput limiting, assuring E1/T1 QoS
11. Local and remote E1/T1 LOS and AIS and packet loss indication for trouble-shooting and maintenance.
12. Support cascade concatenate for more than 4 E1/T1 ports
Item |
Description |
|
Model |
BD-4E1-IP |
2 Uplink (1+1), 4 E1s/T1s, 2 User Data Port |
Interfaces |
Uplink |
Comply with IEEE 802.3 |
E1/T1 Port |
4 E1 or 4 T1 Ports Supported
Comply with G.703
Impedance: E1-120O/T1-100O or 75O
|
|
User Data Port |
2 User Data Ports Supported
Comply with IEEE 802.3
10/100Mbps auto-sensed
Full/Half Duplex auto-sensed
Web Manager Supported
|
|
4E1 TDM over IP Power |
Supply |
-48V DC or 220V (110V) AC or dual power supply |
+24VDC | ||
Consumption |
=10W |
|
Working Environment |
Temperature |
0~ 50 |
Relative Humidity |
=90% (non-condensing) |
|
Dimension |
W x H x D (mm): |
440 x 44 x 230
|
4 E1 over Ethernet TDM over IP Converter
Application1: Point to Point Application
E1 TDM over IP work with Voice over E1 converter,transmitting voice and ethernet data over ethernet network.
Application2: Point to multipoint Application
16units E1 TDM over IP work with 16E1 TDM over IP or E1/4E1/8E1 TDM over IP work with 16E1 TDM over IP.
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.What's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
Certification
Order information | |
BD-4E1-ETH/AC |
Ethernet over 4* E1 converter,AC220V |
BD-4E1-4ETH/AC |
4*Ethernet over 4* E1 converter,AC220V |
BD-4E1-ETH/DC |
Ethernet over 4* E1 converter,DC48V |
BD-4E1-4ETH/DC |
4*Ethernet over 4* E1 converter,DC48V |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field. Your any questions will be responsed within 12hours!
