Product: STM-1 to Gigabit Ethernet Multiplexer
Our advantage:Warranty is 3 years with good quality/Low MOQ:1Piece/Low price/OEM or ODM accepted.
The STM-1 to Gigabit Ethernet Multiplexer realizes STM-1 over Gigabit Ethernet service,which is a cost effective solution for the traditional telecom services migrate to the IP packet network.BD-STM1-GE adopts the innovative TDM over IP technology, with IP circuit emulation that supports transportation of 1xSTM-1(63 E1/VC-12) over GE port.

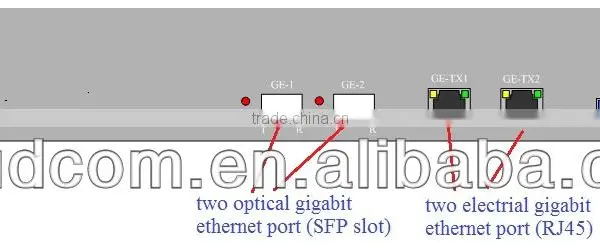

The STM-1 to Gigabit Ethernet Multiplexer provides two SDH (STM-1) optical port and six Gigabit Ethernet ports (5 GE electrical ports and 1 GE optical SFP port).The uplink ports and user data ports are IEEE 802.3 compliant, 10/100/1000M auto-sensed Ethernet ports. The STM-1 over GE device can be easily managed by WEB managemenet.
The STM-1 to Gigabit Ethernet Multiplexer provides 2 power card slots, can support two power supply,(AC+AC or AC+DC,or DC+DC).
State-of-the-art design provides the highest availability with the accurate timing signal and data bit stream reconstruction. Predefined system parameter profiles that according to different application requirement; ultimately simplify the installation process and saving the maintenance cost.
The STM-1 to Gigabit Ethernet Multiplexer can aggregate 63 E1 over IP remote services to 1 STM-1 port.The STM1 over E device support multipoint to point application. Remote CPEs could be other members in BAUDCOM TDM over IP family such as BD-E1-IP, BD-2E1-IP, BD-4E1-IP,BD-8E1-IP, BD-16E1-IP etc. to run legacy E1 services. Telecom and Enterprise users can save a lot of access and equipment costs and generates new revenue by offering different types of services over their packet-switched infrastructure.

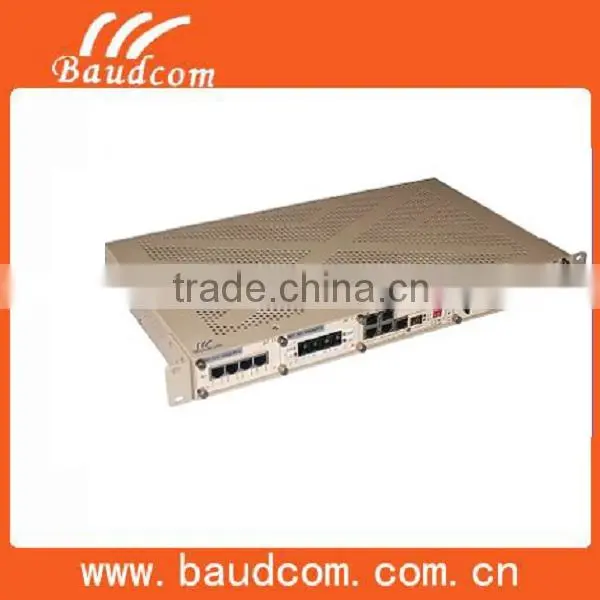

STM-1 to Gigabit Ethernet Multiplexer picture:
| 1 | Support IETF RFC4553 SAToP protocol, Ethernet encapsulation support IP/UDP. |
| 2 | Provide 5 GE electrical ports and 1 GE optical port, 6 GE ports serve as network uplinks or users ports, Anyone of 5 GE electrical ports may act as NM port |
| 3 | User-friendly Web server supported for easy setup and maintenance |
| 4 | Support SNMP V1/V2 network management |
| 5 | STM-1 card has 2 port, support local clock, STM-1 line clock and external clock. |
| 6 | Ethernet built-in layer 2 switch, support VLAN(port based, 802.1Q based and QinQ based), QoS(port based,8021.1P based,MAC based and TOS based). |
| 7 | Ethernet support IEEE 802.3x, RSTP (802.1w), LLDP, Ethernet ring protection, OAM and MAC address automatic learning |
| 8 | Ethernet packet size up to 9720byte |
| 9 | Point to point and point to multipoint supported |
| 10 | Local Ethernet port throughput limiting |
| 11 | Software and hardware online upgrade |
| 12 | Power supply redundancy |
Item |
Description |
|
Model |
BD-STM1-GE |
2 PWR slots 1 STM-1 slot 1 Ethernet uplink slot 1 External clock interface |
Service card |
Ethernet uplink card |
5 GE electrical ports and 1 GE optical port Comply with IEEE 802.3, 802.1Q, 802.1P, 802.3x Speed and duplex auto-negotiation or manual |
STM-1 card |
2 port Default SC/PC |
|
Power |
Supply |
2 power slots |
AC 220v power module | ||
AC 110v power module | ||
DC -48v power module | ||
Consumption |
≤40W |
|
Working Environment |
Temperature |
0~ 50°C |
Relative Humidity |
≤90% (non-condensing) |
|
Dimension |
W x H x D (mm): |
1U: 440 x 44 x 231 (mm) |

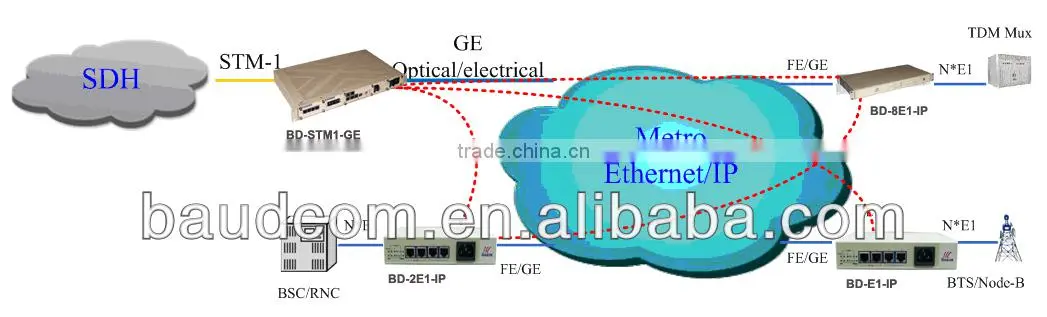

STM-1 to Gigabit Ethernet Multiplexer Typical Application:

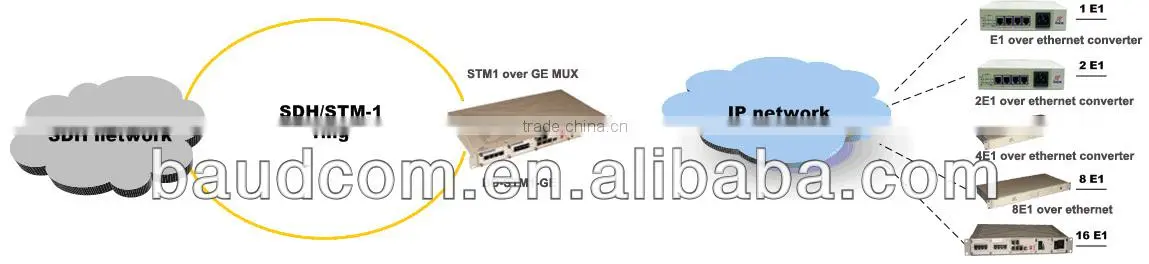

Point to multipoint application
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.What's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
| BD-STM1-GE/AC | STM-1 over Gigabit Ethernet Multiplexer,two STM-1 port,SC,20km,5*10/100/1000M GE ports,1*optical GE port,power AC 220V |
| BD-STM1-GE/AC+DC | STM-1 over Gigabit Ethernet Multiplexer,two STM-1 port,SC,20km,5*10/100/1000M GE ports,1*optical GE port,two power AC 220V+DC 48V |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
