Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > G.703 E1 to RS232 Converter

G.703 E1 to RS232 Converter

Name: G.703 E1 to RS232 Converter
Brand: BAUDCOM - G.703 E1 to RS232 Converter
SKU: 100393303
Availability: InStock

US$ 40 - 100 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

BAUDCOM - G.703 E1 to RS232 Converter

Model Number:

BD-E1-RS232

Contact Supplier Request Quote Chat Now

Shanghai Baudcom Communication Device Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

G.703 E1 to RS232 Converter will be shipped from shanghai ningbo any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name BAUDCOM - G.703 E1 to RS232 Converter

Model Number BD-E1-RS232

Product: G.703 E1 to RS232 Converter

Our advantage:Warranty is 3 years with good quality/Low MOQ:1Piece/Low price/OEM or ODM accepted.

Overview

The G.703 Standard E1 to RS232 Interface Converter realizes data conversion between ITU-T G.703 standard E1 and RS232 interface. Date interface mode is DCE, could connect to DTE or DCE device.

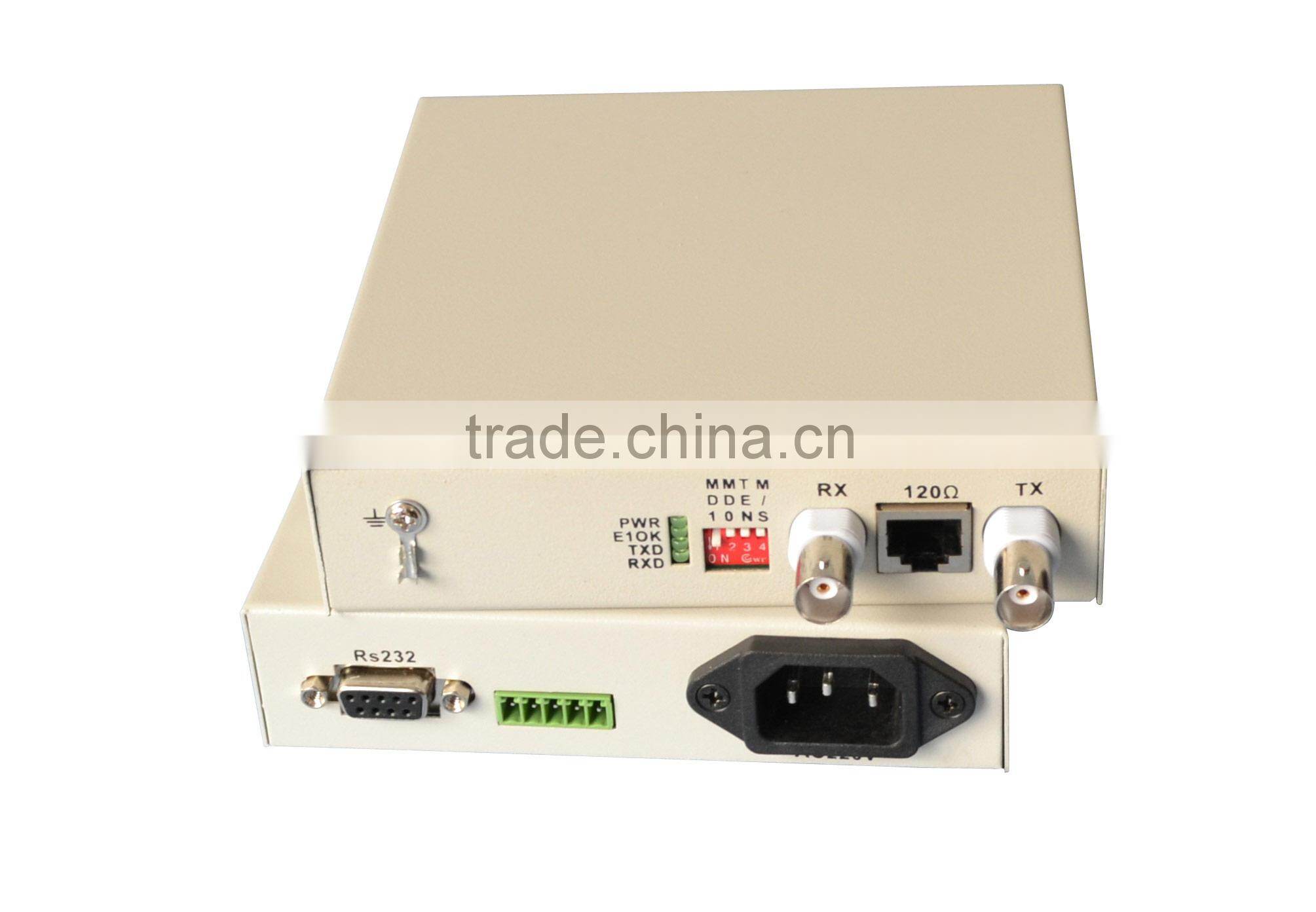

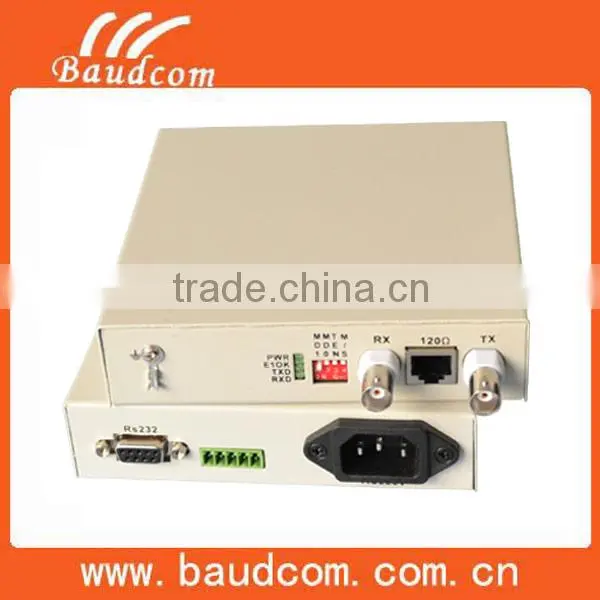

G.703 E1 to RS232 Converter Picture:

Feature

*RS232 rate support 0~115200Kbps self-adapt;

*Support RS232 interface (TXD,RXD,GND)

*RS232 support hot-plug, connection to DTE or TCE device;

*Offer 2 kinds of loop-return function, namely E1 self-looping at local end (ANA) and RS232 self-looping at local end (REM)

*AC220V and DC-48V for option, and DC-48V is not divided into positive and negative pole with simple installation and maintenance;

*Has the function of pseudo-random code testing(PATT), which brings great convenience for installation, debugging and maintenance of equipment;

*E1 interface supports 75ohm, unbalanced and 120ohm balanced impedance at the same time

Specification

E1 Interface	Line Rate	2.048Mbps
	Line Code	HDB
	Interface Standard	ITU-T G.703
	E1 Impedance	75ohm(unbalance) and 120ohm(balance)
	Connections	dual coax BNC and 120-ohm twisted-pair (RJ45)
	Jitter Tolerance	Finer than G.742 and G.823
	Clock	Internal clock, line clock
RS232 Interface	Rate	asynchronous mode 0 to 115200 bps auto-adapt
	Interface	conform to ITU-T V.24 V.11
	Connector	DB9
	Connect Mode	DCE
Power Supply	Working voltage range wide, good anti-disturb and Isolation, work stable
	DC-48V	Range DC-36V~DC-72CV
	AC220V	Range AC165V~AC240V
	Power Consumption	<=3 Watts
Enviornment Condition	Operating Temperature	0C~+50 C
	Storage Temperature	-20 C~+70 C
	Relative humidity	95% (uncondensed)
Dimension	140mm(L)
	120mm(W)
	30mm(H)

Application

FAQ

1.How can i get a sample ?

You need place sample order to us.We will arrange the sample production for you.

2.Could you do design for us?

Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

3.How can we place order?

After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.

If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.

4.How about the shipping?

For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.

5.What's your products' advantages ?

A. good quality and competetive prices.

B. Strictly quality control when producing.

C. Professional team work, from design, development, producing,assemble,packing and shipping.

D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.

Packaging&Shipping

The devices will be well packaged by carton with Foam or other shock proof materials.

Certifications

Factory Production

Product Testing

Order Information

BD-E1-RS232/AC	G.703 E1 to RS232 converter,E1 75ohm(BNC)+120ohm(RJ45),RS232 (DB9 connector),AC220V
BD-E1-RS232/DC	G.703 E1 to RS232 converter,E1 75ohm(BNC)+120ohm(RJ45),RS232 (DB9 connector),DC48V

After Sales Services

The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.

Your any questions will be responsed within 12hours!
