China Supplier Managed Chassis Media Converter
US$ 170 - 210
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
baudcom Chassis Media Converter
Model Number:
BD03
Payment & Shipping
Payment Methods:
Port of Shipment:
Chassis Media Converter from Shanghai ningbo or any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gigabit Media Converter With SFP PortUS$ 45 - 65MOQ: 1 Unit -
High Quality Dual Fiber 10/100M Ethernet Media ConverterUS$ 7.5 - 13.8MOQ: 2 Units
-
5 Ports 10 100 1000M POE Optical ConverterUS$ 45 - 65MOQ: 1 Unit
-
High Quality 10/100M Ethernet Fiber Media ConverterUS$ 7.5 - 13.8MOQ: 2 Units
-
20km 100M Single Fiber WDM Fiber Media ConverterUS$ 7.5 - 13.8MOQ: 2 Units
Place of Origin
Shanghai, China
Brand Name
baudcom Chassis Media Converter
Model Number
BD03
China supplier Managed Chassis Media Converter
Overview
SNMP Managed Chassis: China supplier Managed Chassis Media Converter , full configuration consists of 1 SNMP card+16 function card+2 power supply module (redundant). Support our media converter series, making centrally located SNMP managed chassis
Model name: BD03/ SNMP managed Rack mount converter
product function: Suports all kinds converter card
Features
- installed with standard rack 19"
- It could realize media converter SNMP management. This is media converter module model name as BD03-card and SNMP module as BD03-card-NM
- can insert 16 function BD03-card , 1 SNMP module and 2 slots at back panel, support free combination of AC+DC redundant
-
support of SNMP via Management Ethernet port, remote management support of Web-based Network Management
-
Hot Swappable (Power supply, MC module)
-
Power supply: used with 220 VAC 50 Hz, 2 units
-
one module can supplied to chassis, fully equip
- have 2 Fans to radiate heat
Parameter:
| Parameter | Specifications |
| Number of slots | 17 |
| Structure | 2U rack |
| Power input | AC Voltage: AC 85~265V; frequency: 50/60 Hz |
| DC voltage: DC -36~72V | |
| Power output | DC5V 16A |
| Power configuration | Single power supply, or dual power supply for warm backup mode |
| LED indication | POWER (power supply) |
| Max power consumption | 95W |
| Operating temperature | -10~55iC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70iC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions of rack | 112mm (H) * 368mm (W) * 430mm (D) |
Order information:
BD03/AC+AC |
BD03 chasis with two AC power |
|
BD03/DC+DC |
BD03 chasis with two DC power |
|
BD03/AC+DC |
BD03 chasis with AC+DC power |
|
BD03/AC |
BD03 chasis with AC power |
|
BD03/DC |
BD03 chasis with DC power |
|
Operated at 0-50 degree
Dimension:
430(L) X 368(W) X 112(H) mm

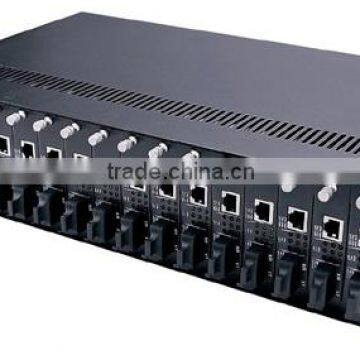

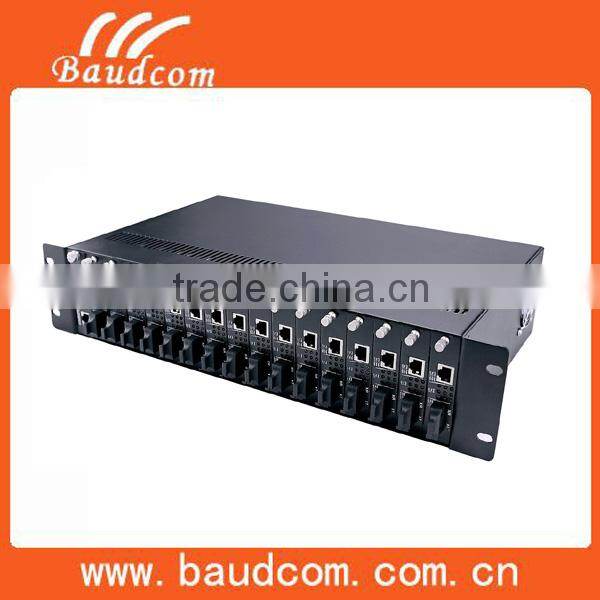

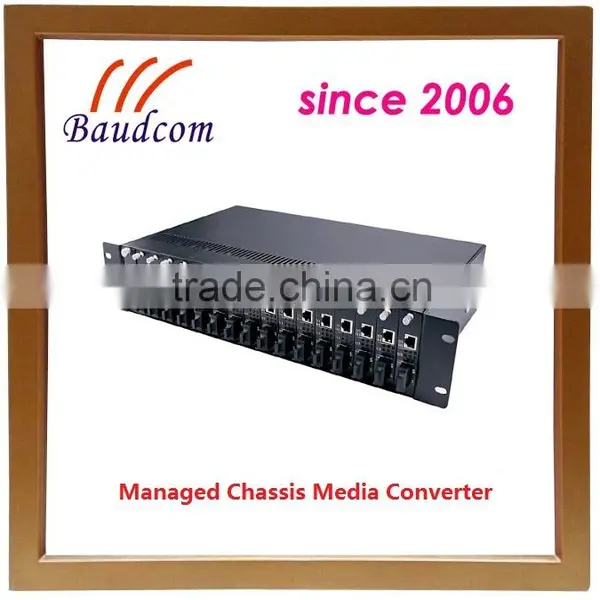

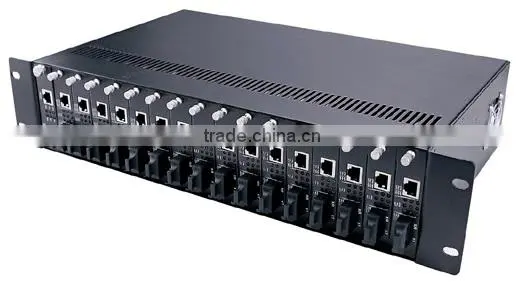

China supplier Managed Chassis Media Converter picture:
