5 ports 10 100 1000M POE optical converter

Name: 5 ports 10 100 1000M POE optical converter
Brand: Baudcom-optical converter
Price: USD $45 - 65 / Unit

FOB Price

USD $45 - $65 / Unit

1 Unit(Min.Order)

Supply Ability 5000 Unit / Units per Month
Port optical converter be shippped from shanghai ningbo or any port in China
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Shanghai, China

Brand Name:

Baudcom-optical converter

Model Number:

BD-1000M-4TX-POE for Ethernet Switch

Product Description

Product: 5 ports 10 100 1000M POE optical converter

Our advantage:

Warranty is 3 years with good quality

Low MOQ:1Piece

OEM or ODM accepted.

Overview

Highlight

The 5*10/100/1000M POE(PSE) Fiber Ethernet Switch is AC/DC powered PoE media converter which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feets).

Overview

The 5*10/100/1000M POE(PSE) Fiber Ethernet Switch is a 5 port (1FX+4TP) 10/100/1000M PoE (PSE) Ethernet Switch. The optical fiber port can greatly extend the transmission distance limitation of normal CAT5e UTP cable. All the four 10/100/1000Mbps UTP RJ-45 ports supports full duplex 10/100/1000M connectivity (half duplex only supported in 10/100M mode).

Complied with IEEE802.3at and IEEE802.3af standard, the PoE(PSE) Ethernet Switch is a Power Sourcing Equipment (PSE) which combines data transfered over cable with 48V (typical) power supply, providing power to IEEE802.3at /IEEE802.3af powered device (PD) over CAT5e UTP cable (cable length up to 100meters / 330feets). All the four UTP RJ-45 ports are organized to be PoE output port and each PoE port can output up to 60Watts (DC48V/1.2A) power into CAT5e twisted-pair cable.

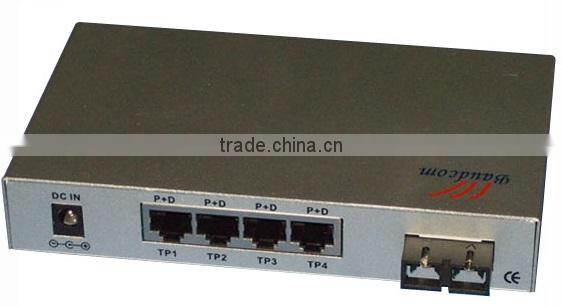

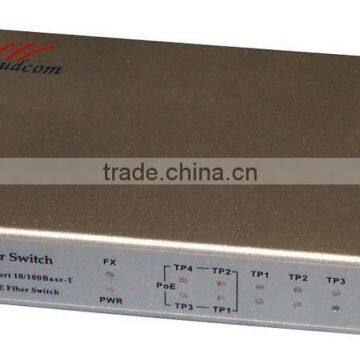

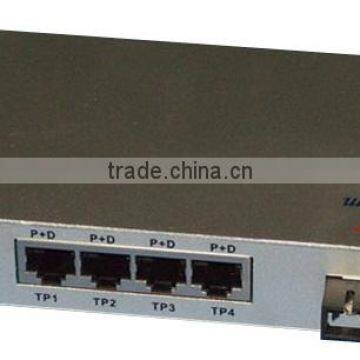

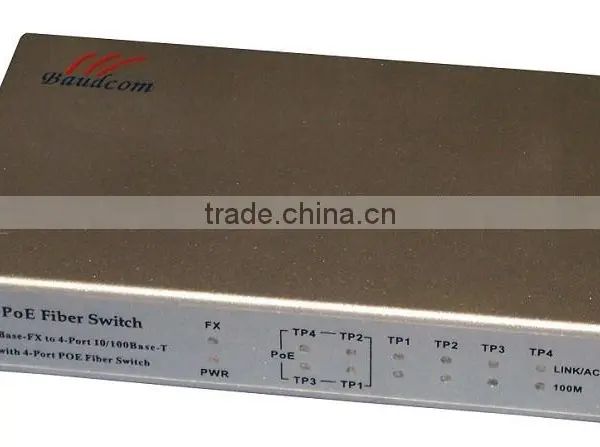

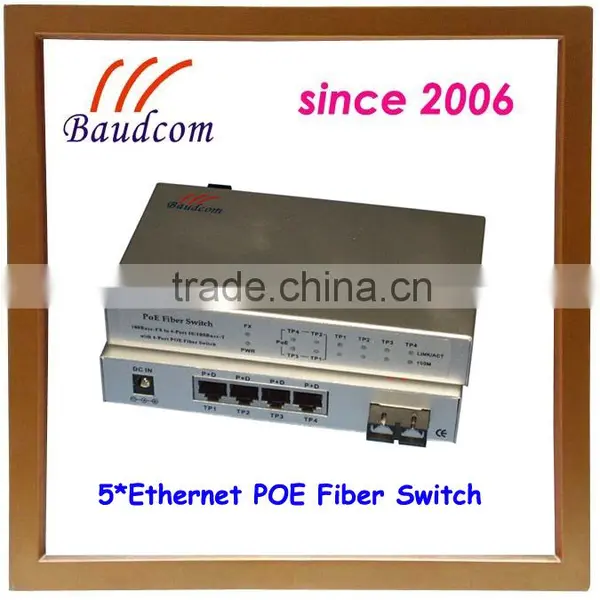

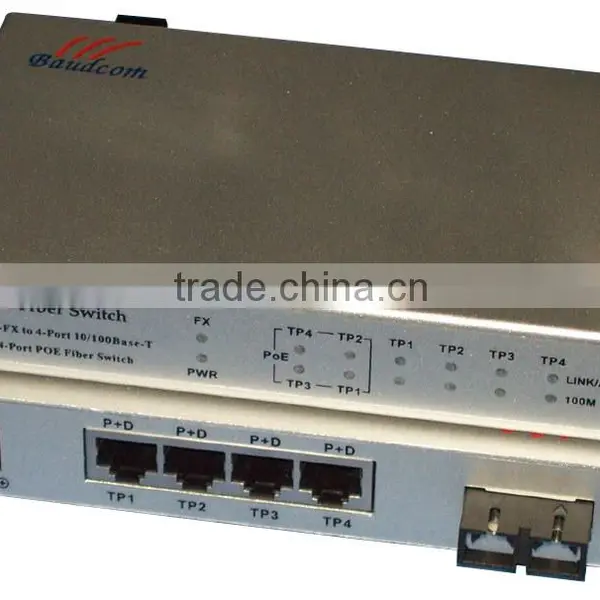

5*10/100/1000M POE(PSE) Fiber Ethernet Switch picture:

Feature

Support one 1000Base-FX fiber optical port and four 10/100/1000Base-T UTP RJ-45 ports

4 ports IEEE802.3at / IEEE802.3af PoE/PSE output

(high power output up to 60Watts per port)

Support IEEE 802.3z/AB 10/1001000Base-

1000Base-SX/LX/ZX standards

Supports IEEE 802.3x flow control

Supports 9216 bytes jumbo packet length

Built-in 1Mbits SRAM for packet buffer, with

4K-entry lookup table

Specification

Ethernet Switch Parameter

1000Base-FX Optical Ethernet interface

Connector: SC,FC or ST are optional

Wavelength: 1310nm,1550nm or 850nm(can be chosen by customer)

Optical fiber category:

Øsingle-mode 8.3/125, 8.7/125, 9/125, 10/125um

Ømulti-mode 50/125, 62.5/125, 100/140um

multi- mode connection: transmitting range can reach 5 kilometers as farthest;

single-mode connection: transmitting range can reach 100 kilometers.

10/100/1000Base-TX Ethernet Interface

Connector: UTP RJ45 connector

Data Rates:

10/100/1000Mbps(802.3 10Base-T/802.3u 100Base-T)

100Mbps (100Base-FX)

Power over Ethernet Output

Pin Assignment and Polarity:4/5 (V+),7/8 (V-)

Output Power: please refer to ordering information Efficiency: 75% min Short circuit protection: auto recovery

Over current protection: auto recovery

Optical Specification :

Fiber connector	SC/ST	SC	SC	SC
type	multimode	Single mode	Single mode	Single mode
wavelength	850/1310nm	1310nm	1310nm	1310nm
Transmission distance	2km	25km	40km	60km
TX send power(min)	-19.0dBm	-15dBm	-9.0dBm	-4.0dBm
TX send power(max)	-12.0dBm	-9.0dBm	-5.0dBm	0dBm
Receive sensitivity	< -30dBm	< -30dBm	< -33dBm	<-36dBm
Link Budget	11.0dBm	15.0dBm	24.0dBm	32.0dBm

Power supply

Input voltage:AC220V, AC100V~AC240V

Input frequency: 47 Hz to 63 Hz

Dimension

158mm(L)x95mm(W)x27mm(H)

Environment condition

Operating temperature: 0°c~+55 °c

Storage temperature: -20 °c~+70 °c

Relative humidity: 95%

Application

FAQ

1.How can i get a sample ?

You need place sample order to us.We will arrange the sample production for you.

2.Could you do design for us?

Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

3.How can we place order?

After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.

If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.

4.How about the shipping?

For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.

6.what's your products' advantages ?

A. good quality and competetive prices.

B. Strictly quality control when producing.

C. Professional team work, from design, development, producing,assemble,packing and shipping.

D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.

Packaging&Shipping

The devices will be well packaged by carton with Foam or other shock proof materials.

Certification

Factory Production

Product Testing

Order Information

Part Number	Supported Standard	Output Voltage	Output Current	Output Power	Remark
BD-1000M-4TX-POE	IEEE 802.3af	48V	0.35A max	15.4W max	default
BD-100M-4TX-POE/A	IEEE 802.3af	48V	0.60A max	30W max	optional
BD-100M-4TX-POE/B	Non-standard	48V	0.60A max	30W max	optional

After Sales Services

The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field. Your any questions will be responsed within 12hours!
