SFP to SFP,1FX+2TP manageable media converter
Highlight
The media converter and OEO converters Multi-services unified platform for 10/100,10/100/1000M media converters,125M-4.25G and 10G OEO converters.
Overview:

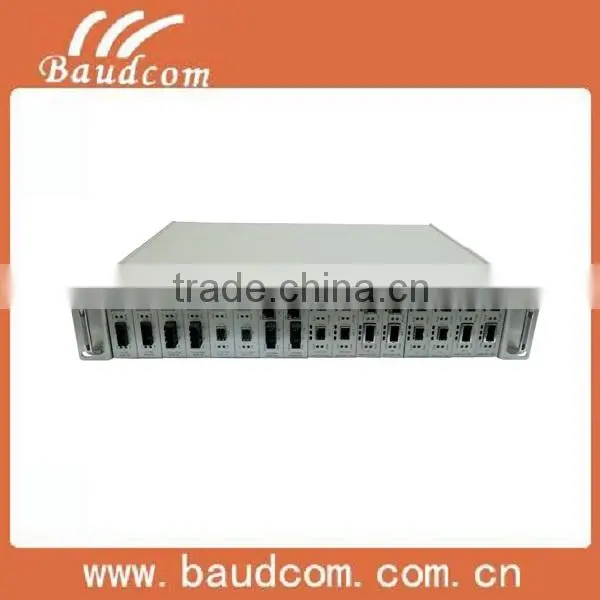

The media converter is a Ethernet and SDH transmission equipment with high price/performance ratio, and it can support 10/100M Ethernet fiber media converter, 10/100/1000M Ethernet fiber media converter, 1 fiber + 2 RJ45 Ethernet fiber media converter, 10G Ethernet fiber media converter, 125M~4.25G OEO, and 10G OEO at the same time. It can support variety of data rate, SM/MM, single fiber/double fiber, SFP, SFP+ and XFP etc. With simple set-up and complete function management interface, manageable media converter supports protocols like SNMP, WEB, CONSOLE and TELNET, and realizes the integrated management to all chassis
Features:( media converter )
u Network based on GUI, easy operation with graded management mode (common user, super user and administrator)
u With centralized management and Top tree, several chassis can be managed in the same interface at the same time;
with grouping management any converter can be conveniently manipulated among many converters
u Master/slave structure,providing management module (master, slave), maximum 4 chassis which can hold 128 fiber ports
and RJ45 ports cascaded can be managed
u Supporting protocols like CONSOLE management, WEB management, Telnet and standard SNMP management
u Supporting network device auto-sensing and adding
u Can set up and display complete system information, including the chassis name, terrain information,
related IP address, constant operating time, the hardware and soft ware versions
u Real time display of voltage and temperature on the cards of the media converters,
temperature of chassis and report fault in time
u Supporting SFP/SFP+/XFP, CWDM SFP/SFP+/XFP and DWDM SFP/SFP+/XFP,
and it can show the SFP/SFP+/XFP information and digital diagnosis function
u Remote power off alarming, precisely distinguish remote failure
u Supporting LFP, quickly locates the failure
u Equipment restart, system or module restart by management software,
set-up information on each module will be stored spontaneously when power off
u Each port at local or remote devices can be set up or tracked, including the connecting status, connecting speed, half/full duplex, port locked and LFP etc.
2 Supporting Loopback and PRBS, precisely locating the failure, convenient for link test
2 Supporting management within bandwidth, managing remote equipments conveniently
2 Powerful historical alarming and operating log information tracking and management function
u Supporting FTP online upgrading

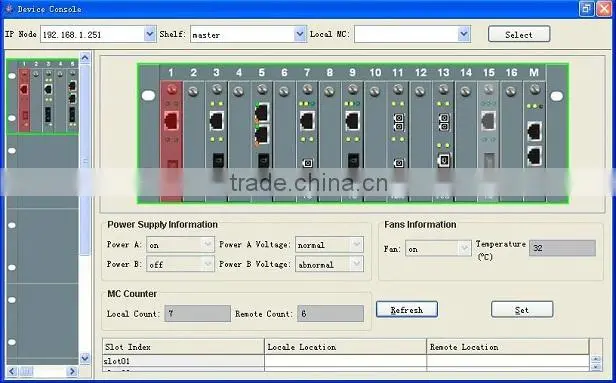

Powerful network management

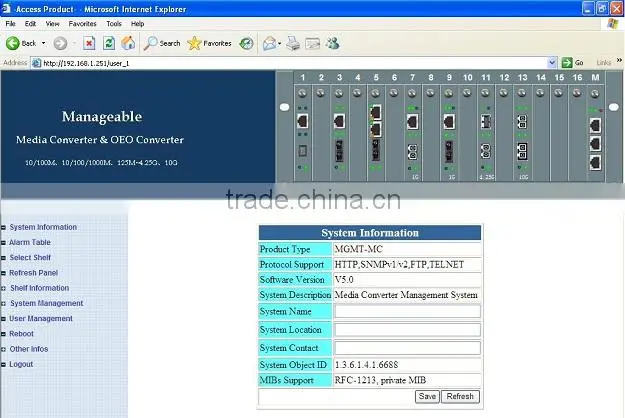

WEB network management
Support Kinds of cards:
10/100M manageable media converter
Ø Supporting 10/100M, full/half duplex autosensing
Ø Supporting Loopback, convenient for link test
Ø Supporting LFP, quickly locates the failure
Ø Supporting remote power off alarming
Ø Economical management function within bandwidth
Ø Supporting hot plug
10/100M 1FX+2TP manageable media converter
Ø Supporting 2 RJ45 ports
Ø Supporting 10/100M, full/half duplex autosensing
Ø Supporting remote power off alarming
Ø Economical management function within bandwidth
Ø Supporting hot plug
10/100/1000M manageable media converter
Ø Supporting 10/100/1000M, full/half duplex autosensing
Ø Supporting 1*9 transceiver and SFP transceiver
Ø Support SFP DMI(Diagnostic Monitoring Interface) function
Ø Supporting Loopback, convenient for link test
Ø Supporting LFP, quickly locates the failure
Ø Supporting remote power off alarming
Ø Supporting hot plug
125M~2.5G manageable OEO
Ø Supporting SFP to SFP
Ø Supporting Fast Ethernet, STS-3/STM-1, ESCON/SBCON,
STS-12/STM-4, 1×Fiber Channel, Gigabit Ethernet,
2×Fiber Channel, STS-48/STM-16, 2.5 Infini Band,
Ø Transmission rate 125Mbps~2.5Gbps
Ø Supporting DMI(Diagnostic Monitoring Interface)
Ø Supporting hot plug
10G manageable OEO
Ø Optical to optical series: supporting XFP to XFP
Ø Supporting 10Gbase-SR/LR to 10Gbase-SR/LR
Ø Supporting 9.95Gbps~11.32Gbps
Ø Short delay time when transparent transmission
Ø powerful network management, supporting WEB and SNMP
Ø Supporting hot plug
| Power supply | |
| working voltage range |
wide, good anti-disturb and Isolation, work stable |
| AC power | 85VAC~265VAC |
| DC power | -40VDC~-57VDC |
| Environment condition | |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~70°C |
| Humidity | 5%~90%(non-condensing) |
| Dimension | |
| 315mm*425mm*92mm | (L)*(W)*(H) |
media converter
