Product:Hot Product SC FC 120KM 10 100 1000M Media Converter
Media Converter Briefly description

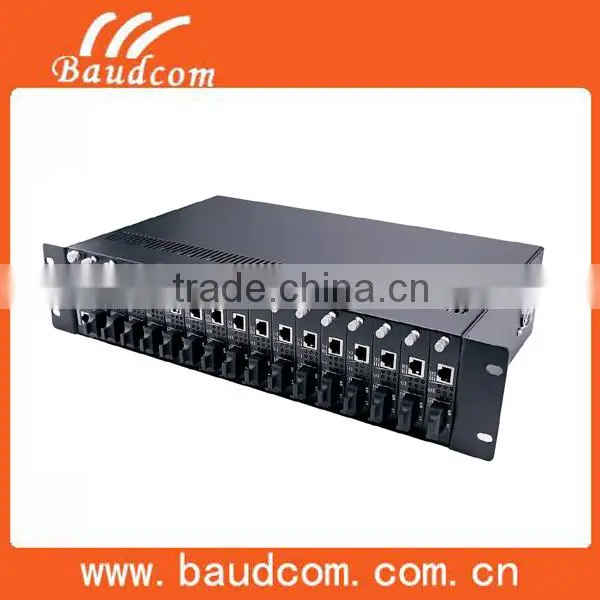

The BD-1000M series Hot Product SC FC 120KM 10 100 1000M Media Converter (fiber optical media converter) translates transmission signals from a twisted-pair 10/100/1000 Base-Tx to 10/100Base-FX fiber optical cable. The Hot Product SC FC 120KM 10 100 1000M Media Converter has SNMP based intelligent network management by rack chasiss. it exsits in the card version and comply with BAUDCOM BD seris fiber media converter chassis ,then could realize central SNMP management or unmanaed for save space.
The Hot Product SC FC 120KM 10 100 1000M Media Converter is transmitting 1000M Ethernet electrical signal through fiber.
Media Converter Parameter
|
Product characteristic |
International standard | IEEE802.3z, 1000Base-SX/LX |
IEEE802.3ab 1000Base-T | ||
| Ethernet Interface | 10/100/1000Base-T: RJ45, Ethernet 10/100/1000M auto-adaptable | |
| 1000Base-SX/LX | SC/FC | |
| 1000Base-T | EIA/TIA-568 Cat5(MUX reach 100 meters) | |
| 1000Base-LX |
multi-mode fiber 62.5/125µm(MUX reach 550 meters) single-mode fiber 9/125 µm(MUX reach 80Km) |
|
| Environment condition | Operating temperature | 0°c~+50 °c |
| Storage temperature | -20 °c~+70 °c | |
| Relative humidity | 95% (uncondensed) | |
| Dimension | 210(W) x140 (L) x 30(H) mm |
Hot Product SC FC 120KM 10 100 1000M Media Converter
Media Converter Application:
Ordering information:
| BD-1000M-CM03/MM | 10/100/1000M ethernet media converter card,SNMP managed,multimode fiber 2km,SC or FC |
| BD-1000M-CM03/SM | 10/100/1000M ethernet media converter card,SNMP managed,single mode 20km~120km for option,SC or FC |
| BD-1000M-CM01/MM | 10/100/1000M ethernet media converter card,unmanaged,multimode fiber 2km,SC or FC |
| BD-1000M-CM01/SM | 10/100/1000M ethernet media converter card,unmanaged,single mode 20km~120km for option,SC or FC |
